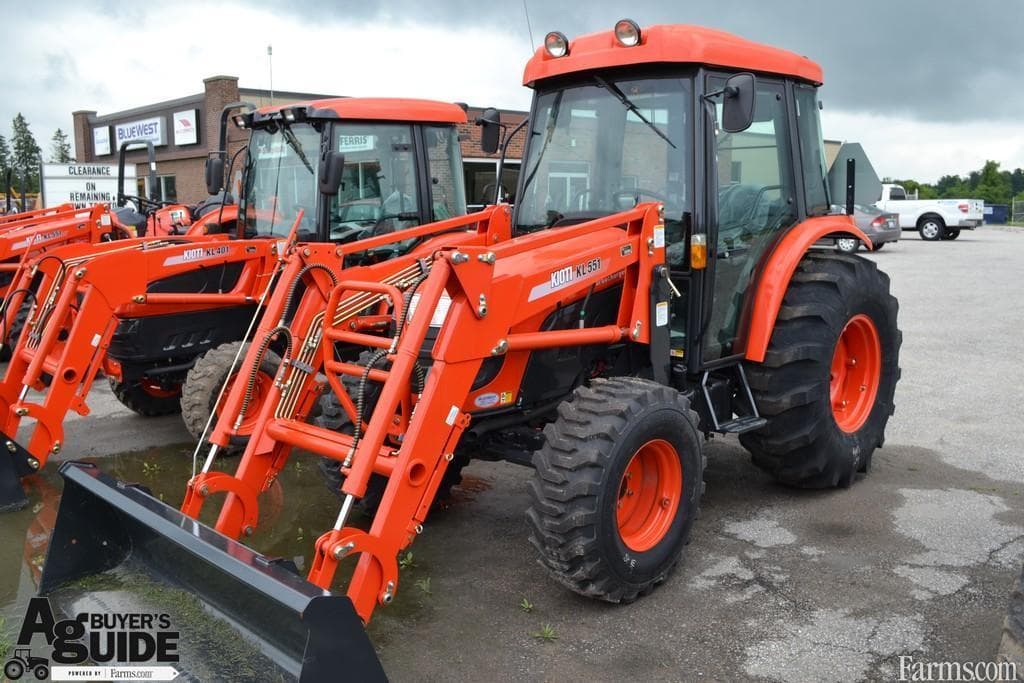

Kioti DK55

Last Updated: June 2024

Overview

The Kioti DK55 is a robust utility tractor that was manufactured by Daedong in Daegu, South Korea from 2003 to 2013. It features a hydrostatic power steering system, wet disc brakes, and comes with the option of a foldable ROPS or a cab. It operates with a 55 hp turbocharged diesel engine and provides a synchronized shuttle transmission with 12 gears in both forward and reverse directions. Its 4WD chassis ensures versatile maneuverability and performance across various terrain. The tractor's Daedong 4A220T engine offers a displacement of 134.1 cubic inches, delivering the power needed for a range of agricultural tasks. This power is backed by a substantial fuel capacity of 18 US gallons and a maximum engine speed of 2600 rpm. The capability of the three-point hitch, with a lift capacity of 2640 lbs at 24 inches, along with the dual PTO speeds of 540 and 1000 rpm, make this tractor highly adaptable to numerous implements and attachments. Further refining its utility, the Kioti DK55 provides a broad stance with a wheelbase of 76.8 inches, ground clearance of 17.3 inches, and a turning radius that complements its operational weight of up to 5105 lbs with a cab. This highlights its dependable foundation for a range of activities, cementing its role as a valuable asset for farming operations.
Show more...

Key Specifications

Category: Utility

Power Output: 55

Transmission: Synchronized shuttle

Drive Type: 4WD

Operating Weight: 4685 (ROPS), 5105 (cab)

Fuel Type: Diesel

Kioti DK55 vs. Similar Tractors

Power Output
Average
Greater than 53% of similar tractors.
Hitch Capacity
Average
Greater than 43% of similar tractors.
Operating Weight
Average
Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
4A220T
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
134.1
Bore (in)
3.425
Stroke (in)
3.628
Rated RPM
2600
Power Output (hp)
55

Transmission

Type
Synchronized shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
128.3
Width (in)
69.3
Height (in)
106.3 (ROPS), 104 (cab), 85.5 (Folded ROPS)
Operating Weight (lb)
4685 (ROPS), 5105 (cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20 (Ag), 15 (Lawn/turf), 16.5 (Industrial)
Front Tire Width (in)
9.5 (Ag), 12.5 (Lawn/turf), 12 (Industrial)
Rear Tire Diameter (in)
28 (Ag), 16.1 (Lawn/turf), 24 (Industrial)
Rear Tire Width (in)
14.9 (Ag), 21.5 (Lawn/turf), 17.5 (Industrial)
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/turf, Industrial
Manufacture - End Year
2013
Hitch Type
Three-point hitch
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
2640
Operator Station Type
Foldable ROPS or cab (optional)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
-
