Kioti DK5010

Last Updated: June 2024

Overview

The Kioti DK5010 is a 4WD compact utility tractor from the DK10 series. This tractor has been manufactured by Kioti (a part of Daedong) since 2015. The Kioti DK5010 is equipped with a 1.8 L (111.4 cu·in) three-cylinder diesel engine and one of two transmissions: a mechanical shuttle transmission with 8 forward and 8 reverse gears or a power shuttle transmission with 8 forward and 8 reverse gears. The DK5010 compact utility tractor uses the Daedong 3F183T engine. It is a 1.8 L, three-cylinder turbocharged diesel engine with a cylinder bore of 87.0 mm (3.43 in) and a piston stroke of 102.0 mm (4.02 in). This engine produces 50 HP at 2,600 RPM. It is equipped with power steering, wet disc brakes, and a two-post folding ROPS. The fuel tank has a capacity of 45.0 liters (11.9 US gal; 9.9 Imp. gal). Attachments available for this tractor are unknown from the given data.

Key Specifications

Category: Utility

Power Output: 50

Transmission: Mechanical shuttle / Power shuttle

Drive Type: MFWD

Operating Weight: 3373

Fuel Type: Diesel

Image Gallery

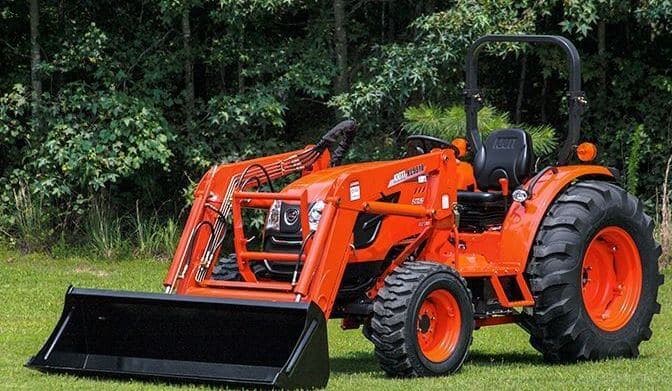

Kioti DK5010 Tractor

Kioti DK5010 vs. Similar Tractors

Power Output

Average

Greater than 49% of similar tractors.

Hitch Capacity

Average

Greater than 47% of similar tractors.

Operating Weight

Below Average

Greater than 29% of similar tractors.

Technical Specifications

Engine

Manufacturer: Daedong
Model: 3F183T
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 111.4
Bore (in): 3.43
Stroke (in): 4.02
Rated RPM: 2600
Power Output (hp): 50

Transmission

Type: Mechanical shuttle / Power shuttle
Forward Gears: 8
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 124
Width (in): 62.6
Height (in): 91.7 (with ROPS)
Operating Weight (lb): 3373

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag: Front: 8-16, Rear: 13.6-24, Lawn/turf: Front: 29-12.5-15, Rear: 21.5L-16.1, Industrial: Front: 10-16.5, Rear: 14.9-24
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): 2712 lbs
Operator Station Type: Two-post folding ROPS
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
