Kioti DK50

Last Updated: June 2024

Overview

The Kioti DK50 is a versatile compact utility tractor used for a variety of tasks and suitable for small-scale farms, landscaping, and other utilities. It comes equipped with a turbocharged 49 horsepower, Daedong 4A200T diesel engine, and offers 12 forward and 12 reverse gears with a synchronized shuttle transmission. With hydraulic power steering, wet disc brakes, and the option of a foldable ROPS or cab, this tractor is designed for comfort and safety. Additional features include a differential lock for enhanced traction and a rear three-point hitch with a lift capacity of 3,970 lbs, making it practical for numerous implements and attachments. Its solid and durable build has contributed to its reputation as a reliable workhorse since its production run from 2001 to 2005.

Key Specifications

Category: Utility

Power Output: 49

Transmission: Synchronized Shuttle

Drive Type: 4WD

Operating Weight: 3814 to 4107

Fuel Type: Diesel

Image Gallery

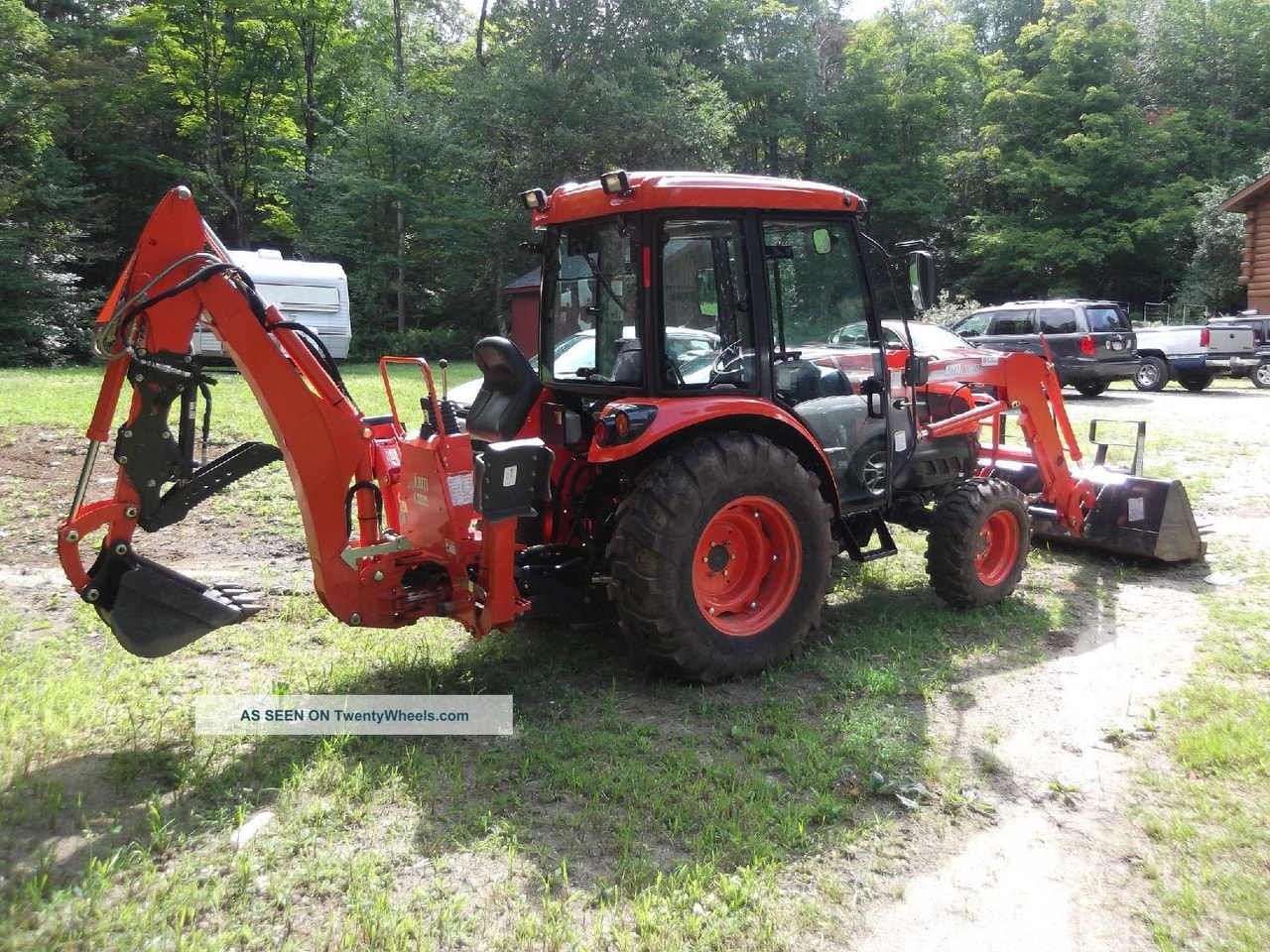

Kioti DK50 Tractor

Kioti DK50 vs. Similar Tractors

Power Output

Average

Greater than 47% of similar tractors.

Hitch Capacity

Poor

Greater than 10% of similar tractors.

Operating Weight

Above Average

Greater than 86% of similar tractors.

Technical Specifications

Engine

Manufacturer: Daedong
Model: 4A200T
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 122
Bore (in): 3.268
Stroke (in): 3.638
Rated RPM: 2600
Power Output (hp): 49

Transmission

Type: Synchronized Shuttle
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 130.8
Width (in): 61
Height (in): ROPS: 88, Cab: 92
Operating Weight (lb): 3814 to 4107

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydraulic Power
Coolant Capacity (qts): 9.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag: Agricultural, Lawn/turf: Turf, Industrial: Industrial
Manufacture - End Year: 2005
Hitch Type: Three-Point Hitch
Hitch Category: II/I
Hitch Position: Rear
Hitch Capacity (lb): 3,970 lbs
Operator Station Type: Foldable ROPS or Cab (optional)
Starter Type: Electric
Brake Type: Wet Disc
Hydraulic System Type: Open Center
