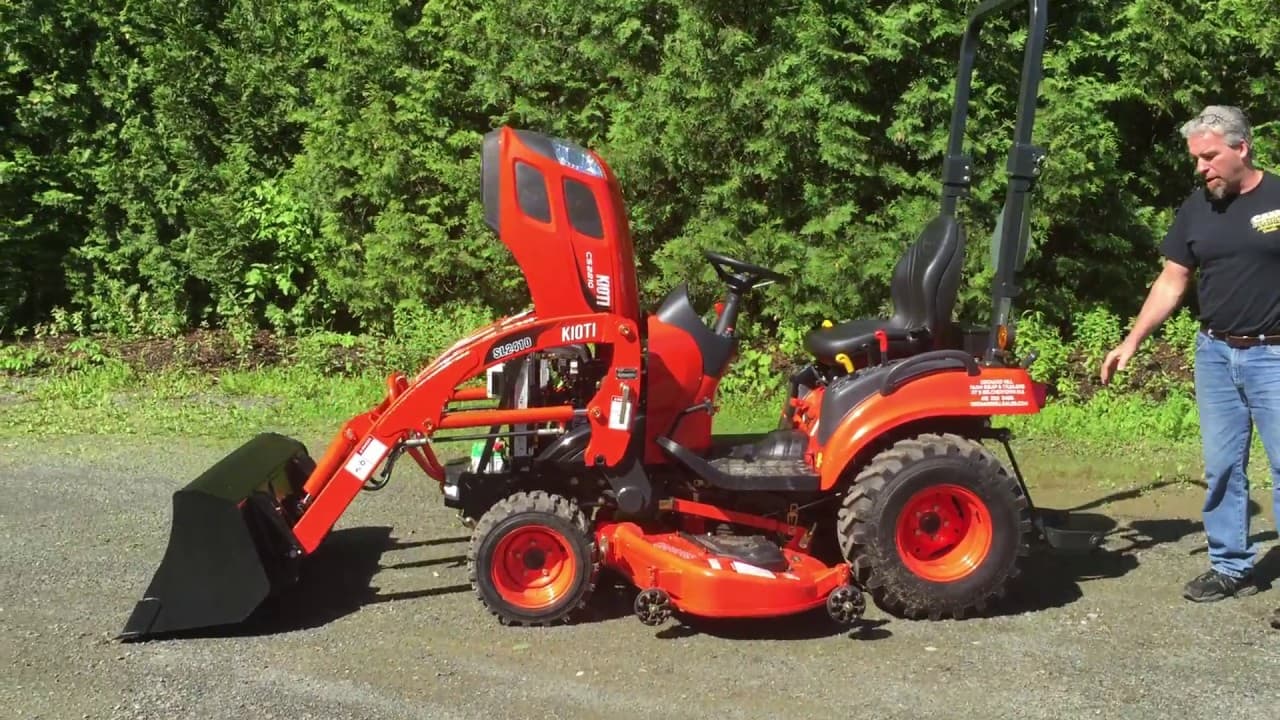

Kioti CS2210

Last Updated: June 2024

Overview

The Kioti CS2210 is a robust sub-compact utility tractor ideal for various tasks around small farms and properties. Manufactured by the Daedong company, it is a part of the CS series and has been in production since 2016. Armed with a Shibaura S773L-F21 diesel engine, the Kioti CS2210 offers 21 horsepower at a rated RPM of 3000. Its hydrostatic transmission provides infinite forward and reverse gears for ease of operation. It features a Category I three-point hitch with a lift capacity of 700 pounds, providing the necessary versatility for different implements. The tractor also includes a comfortable operating station, with an optional cab or a two-post folding ROPS, wet disc brakes for reliable stopping power, and an open center hydraulic system. With power steering, this tractor ensures easy maneuverability and operation. The fuel tank holds 6.7 US gallons, making it suitable for longer work periods without frequent refills. This model has been designed with reliability and utility in mind, making it a valuable asset for small-scale farming operations.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 21

Transmission: Hydrostatic

Drive Type: MFWD 4WD

Operating Weight: 1485

Fuel Type: Diesel

Kioti CS2210 vs. Similar Tractors

Power Output
Below Average
Greater than 11% of similar tractors.
Hitch Capacity
Below Average
Greater than 16% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
S773L-F21
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspiration
Cylinders
3
Displacement (ci)
69
Bore (in)
3.03
Stroke (in)
3.19
Rated RPM
3000
Power Output (hp)
21

Transmission

Type
Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
99.2
Width (in)
46.5
Height (in)
87.8
Operating Weight (lb)
1485

Power Take-Off (PTO)

PTO Type
Optional Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2200
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18
Front Tire Width (in)
8.5
Rear Tire Diameter (in)
26
Rear Tire Width (in)
12
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category I
Hitch Position
Rear
Hitch Capacity (lb)
700 lbs
Operator Station Type
Two-post folding ROPS or Cab (optional)
Starter Type
Electric
Brake Type
Wet Disc
Hydraulic System Type
Open Center
