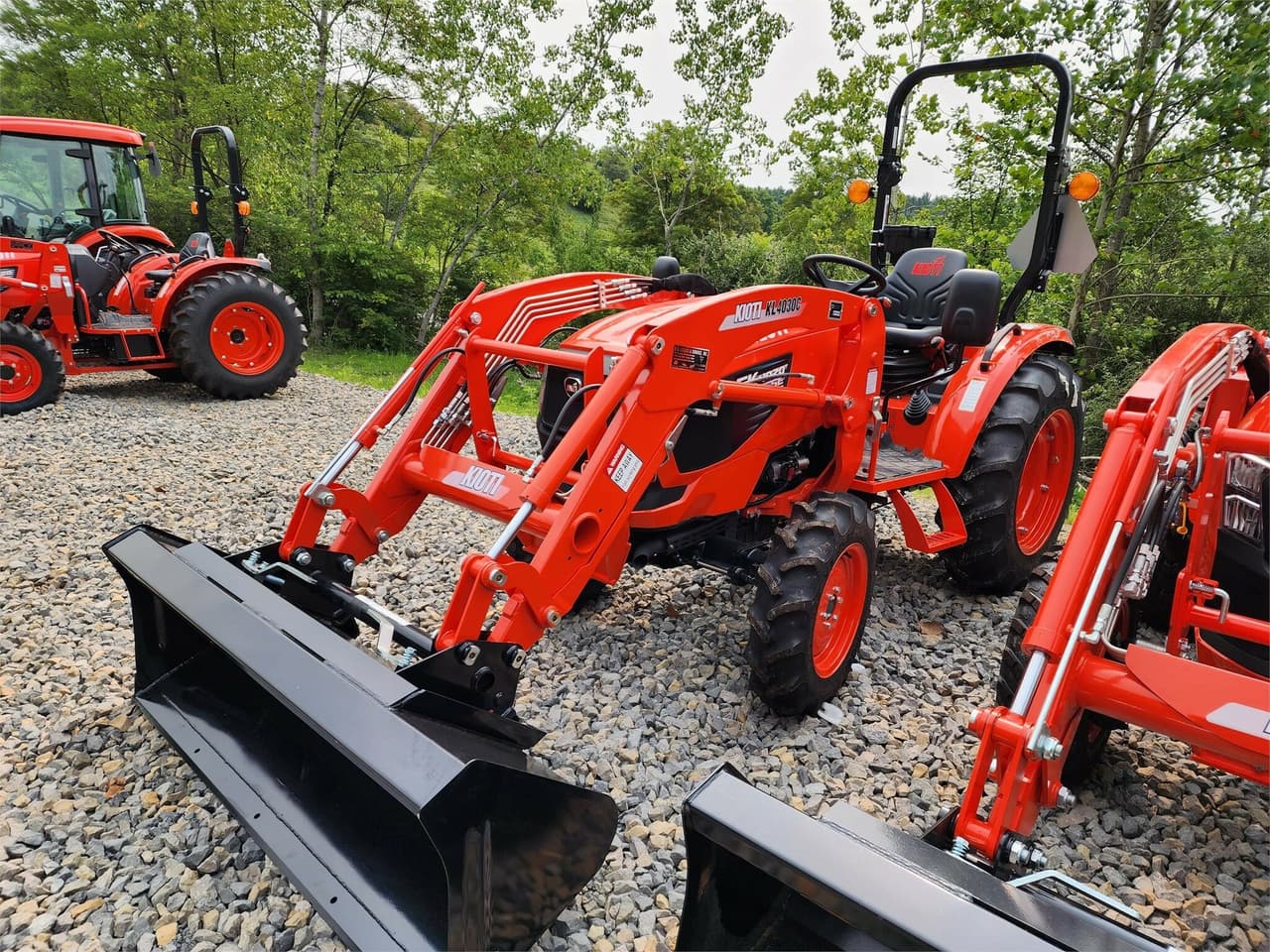

Kioti CK4020SE

Last Updated: June 2024

Overview

The Kioti CK4020SE is a compact utility tractor designed for versatility and durability across various tasks on small farms, orchards, and estates. Equipped with a 39.6 horsepower Daedong diesel engine, the tractor offers substantial power in a compact frame. The engine is liquid-cooled and provides sufficient torque at a rated 2600 RPM. Users can select between sync shuttle and hydrostatic transmission, with infinite gear options on the hydrostatic variant, emphasizing ease of operation and minimalistic gear shifts. The tractor's weight ranges from 2906 to 3397 pounds, hinting at a robust and stable platform for both attachment use and general handling. It operates on standard agricultural tires or can be fitted with lawn/turf or industrial options for specialized tasks, ensuring adaptability to varied terrain requirements. The tractor's dimension and three-point hitch category I designation make it suitable for a range of implements and attachments.
Show more...

Key Specifications

Category: Utility

Power Output: 39.6

Transmission: Synchro Shuttle / Hydrostatic (dual options)

Operating Weight: 2906 to 3397

Fuel Type: Diesel

Kioti CK4020SE vs. Similar Tractors

Power Output
Average
Greater than 36% of similar tractors.
Operating Weight
Above Average
Greater than 84% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
111.4
Bore (in)
3.43
Stroke (in)
4.03
Rated RPM
2600
Power Output (hp)
39.6

Transmission

Type
Synchro Shuttle / Hydrostatic (dual options)
Forward Gears
12 / Infinite (depending on transmission type)
Reverse Gears
12 / Infinite (depending on transmission type)
Total Gears
-

Dimensions

Length (in)
120.9
Width (in)
54.5
Height (in)
92.9
Operating Weight (lb)
2906 to 3397

Power Take-Off (PTO)

PTO Type
540 Rear / 2000 Mid
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
2000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
28 / 27 (for Lawn/Turf and Industrial respectively)
Front Tire Width (in)
8.5
Rear Tire Diameter (in)
24
Rear Tire Width (in)
11.2 / 14 (for Lawn/Turf and Industrial respectively)
Front/Rear Rim Diameter (in)
-
Tire Type
Ag / Lawn/Turf / Industrial
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
