Kioti CK3510

Last Updated: June 2024

Overview

The Kioti CK3510 is a robust compact utility tractor from the Kioti CK10 series. This model, notably recognized for its power and flexibility, has been in production since 2015. It is powered by a reliable three-cylinder Daedong diesel engine, which contributes significantly to its performance with its 35 horsepower. Owners can take advantage of the tractor’s ability to operate with either a gear-based transmission offering 9 forward and 3 reverse speeds or a hydrostatic transmission with infinite speeds in both directions. The CK3510 is also notable for its open-center hydraulic system, mechanical rear differential lock, and options for multiple tire types and operator station configurations. Whether equipped with a simple ROPS or a more comfortable cab with optional air-conditioning, this tractor ensures strong performance for a variety of compact utility tasks.

Key Specifications

Category: Utility

Power Output: 35

Transmission: 9-speed gear / Hydrostatic

Drive Type: 4WD

Operating Weight: 2679 (gear ROPS), 2734 (hydro ROPS), 3307 (hydro cab)

Fuel Type: Diesel

Image Gallery

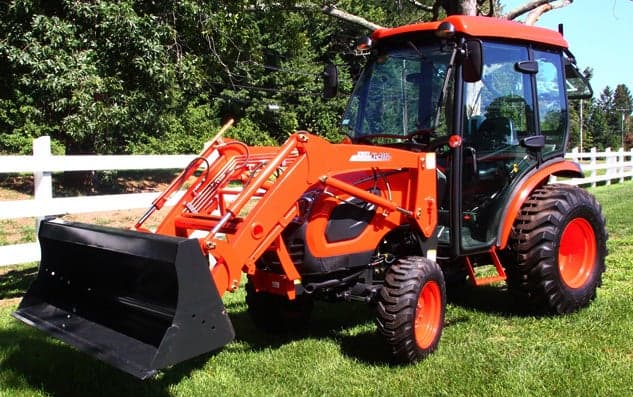

Kioti CK3510 Tractor

Kioti CK3510 vs. Similar Tractors

Power Output

Average

Greater than 32% of similar tractors.

Hitch Capacity

Excellent

Greater than 93% of similar tractors.

Technical Specifications

Engine

Manufacturer: Daedong
Model: Daedong 3F183
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural Aspiration
Cylinders: 3
Displacement (ci): 111.4
Bore (in): 3.43
Stroke (in): 4.02
Rated RPM: 2600
Power Output (hp): 35

Transmission

Type: 9-speed gear / Hydrostatic
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 120.9
Width (in): 55.1 (width across different tire types may vary)
Height (in): 99.2 (ROPS) / 91.7 (cab)
Operating Weight (lb): 2679 (gear ROPS), 2734 (hydro ROPS), 3307 (hydro cab)

Power Take-Off (PTO)

PTO Type: Live with dry disc clutch / Optional Transmission
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 2000 (mid-PTO)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): Unknown (Front tire sizes provided: Ag: 7-16, Lawn/turf: 28x8.5-15, Industrial: 27x8.5-15)
Front Tire Width (in): -
Rear Tire Diameter (in): Unknown (Rear tire provided: 11.2-24)
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag / Lawn/turf / Industrial
Manufacture - End Year: -
Hitch Type: Three-Point Hitch Category I
Hitch Category: Category 1
Hitch Position: Rear
Hitch Capacity (lb): 1632 lbs (at 24 in behind lift points)
Operator Station Type: Two-post folding ROPS / Cab with air-conditioning (optional)
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Open center
