Kioti CK2610

Last Updated: June 2024

Overview

The Kioti CK2610 is a reliable 4WD compact utility tractor designed for various agricultural tasks, developed and manufactured by Kioti as part of the Daedong company lineup. It offers several options in transmissions, featuring either a gear type with 9 forward and 3 reverse gears or an infinite hydrostatic transmission, providing versatility and ease of use. The tractor houses a three-cylinder diesel engine from Daedong, the 3A165LWM-U, offering 24.5 horsepower and a displacement of 100.5 cubic inches. The CK2610 serves its operators with a comfortable open station, effective power steering, and a solid lifting capacity at the rear hitch. It's built to cater to a range of needs with various tire options suited for agricultural, lawn, and industrial purposes.
Show more...

Key Specifications

Category: Utility

Power Output: 24.5

Transmission: Gear type with dry disc clutch / Hydrostatic

Drive Type: 4WD

Operating Weight: 2646 (Gear), 2701 (Hydro)

Fuel Type: Diesel

Image Gallery

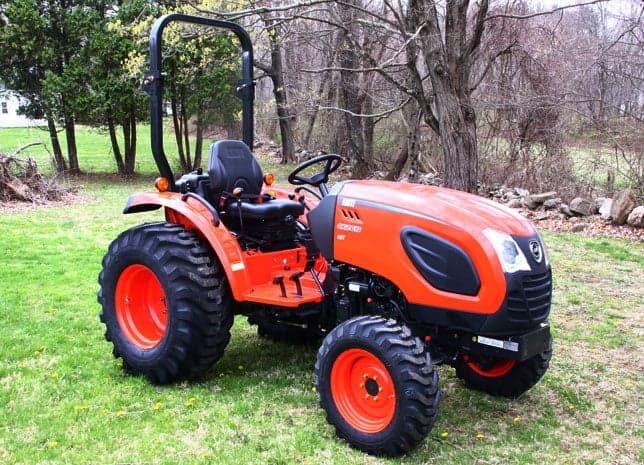

Kioti CK2610 Tractor Kioti CK2610 Tractor Kioti CK2610 Tractor Kioti CK2610 Tractor Kioti CK2610 Tractor Kioti CK2610 Tractor

Kioti CK2610 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Hitch Capacity
Below Average
Greater than 29% of similar tractors.
Operating Weight
Below Average
Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
Daedong 3A165LWM-U
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
100.5
Bore (in)
3.43
Stroke (in)
3.62
Rated RPM
2600
Power Output (hp)
24.5

Transmission

Type
Gear type with dry disc clutch / Hydrostatic
Forward Gears
9 (Gear)
Reverse Gears
3 (Gear)
Total Gears
Infinite (Hydrostatic, forward and reverse)

Dimensions

Length (in)
Length (in) |120.9
Width (in)
54.7
Height (in)
98.8
Operating Weight (lb)
2646 (Gear), 2701 (Hydro)

Power Take-Off (PTO)

PTO Type
Optional Middle / Live Rear
PTO Speed 1 (rpm)
540 (Rear), 2000 (Optional Middle)
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown for standard (Ag: 7-16, Lawn/turf: 28x8.5-15, Industrial: 27x8.5-15)
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/turf, Industrial
Manufacture - End Year
-
Hitch Type
Rear Type I
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
1630
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
