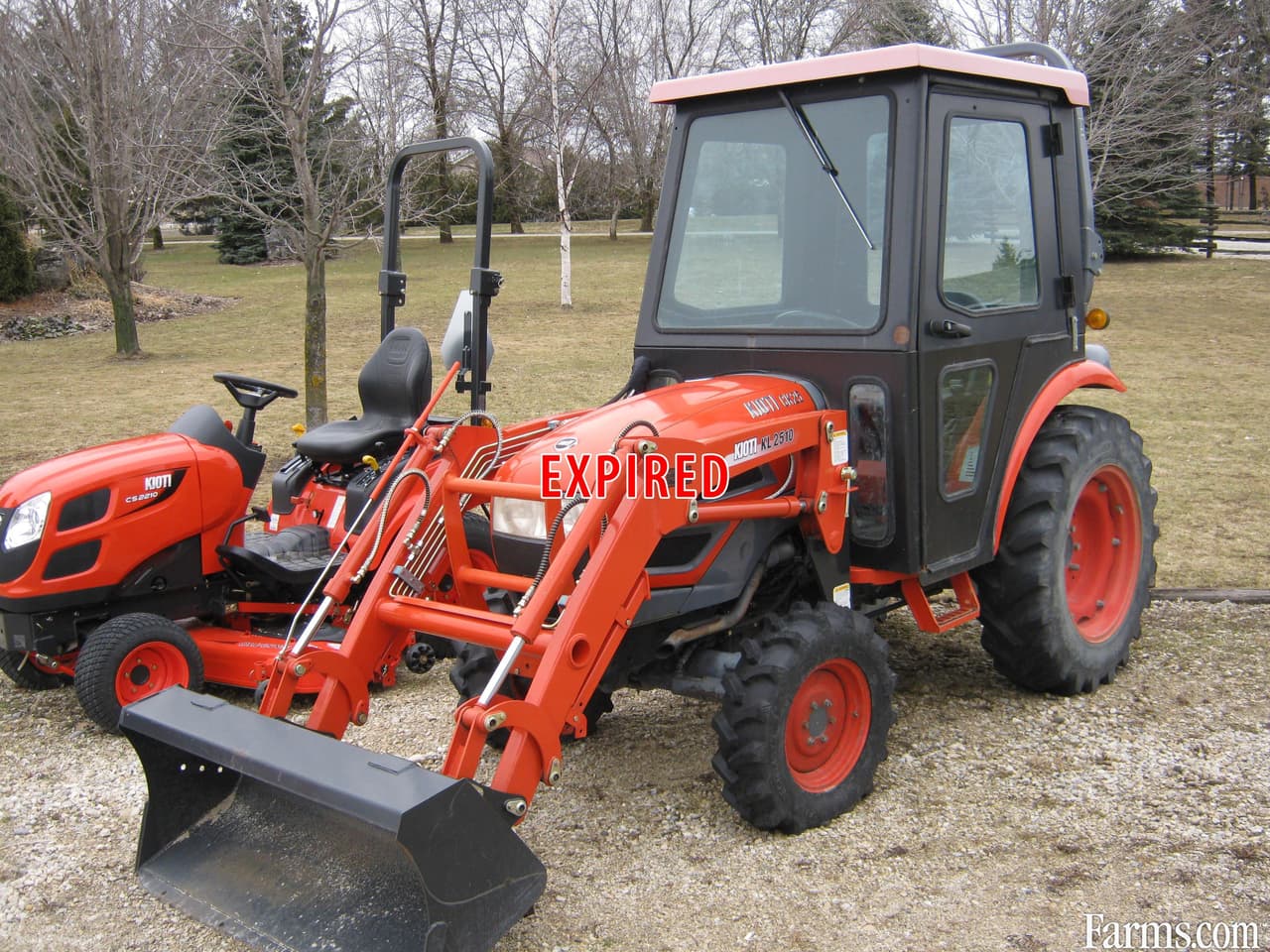

Kioti CK25

Last Updated: June 2024

Overview

The Kioti CK25 is a compact utility tractor known for its versatile chassis, featuring a 4x4 MFWD 4WD drive type that provides enhanced traction and maneuverability across various terrains. Equipped with a 25 horsepower Daedong TD1300LXA diesel engine, which is liquid-cooled and operates at a rated RPM of 2600, the tractor offers sufficient power for a range of tasks. The CK25 boasts a power steering system and an 8-speed synchronized shuttle transmission, allowing for easy operation and control. The tractor’s operating weight is approximately 3154.9 lbs, indicating a robust and durable build. Tire options include agricultural, lawn/turf, and industrial types to cater to different working conditions. With a Category I three-point hitch and a hitch lift capacity of 1763.7 lbs, the CK25 is well-suited for various attachments and implements. It is also noted for having a notable ground clearance and a height of 96.8 inches with ROPS, ensuring safety and visibility for the operator.
Show more...

Key Specifications

Category: Utility

Power Output: 25

Transmission: Synchronized Shuttle

Drive Type: 4WD

Operating Weight: 3154.9

Fuel Type: Diesel

Kioti CK25 vs. Similar Tractors

Power Output
Below Average
Greater than 18% of similar tractors.
Hitch Capacity
Average
Greater than 32% of similar tractors.
Operating Weight
Below Average
Greater than 27% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
TD1300LXA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
3
Displacement (ci)
79.3
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
25

Transmission

Type
Synchronized Shuttle
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
122.2
Width (in)
54.6
Height (in)
96.8 (Height with ROPS)
Operating Weight (lb)
3154.9

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf, Industrial
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
1763.7
Operator Station Type
-
Starter Type
12 volt
Brake Type
-
Hydraulic System Type
-
