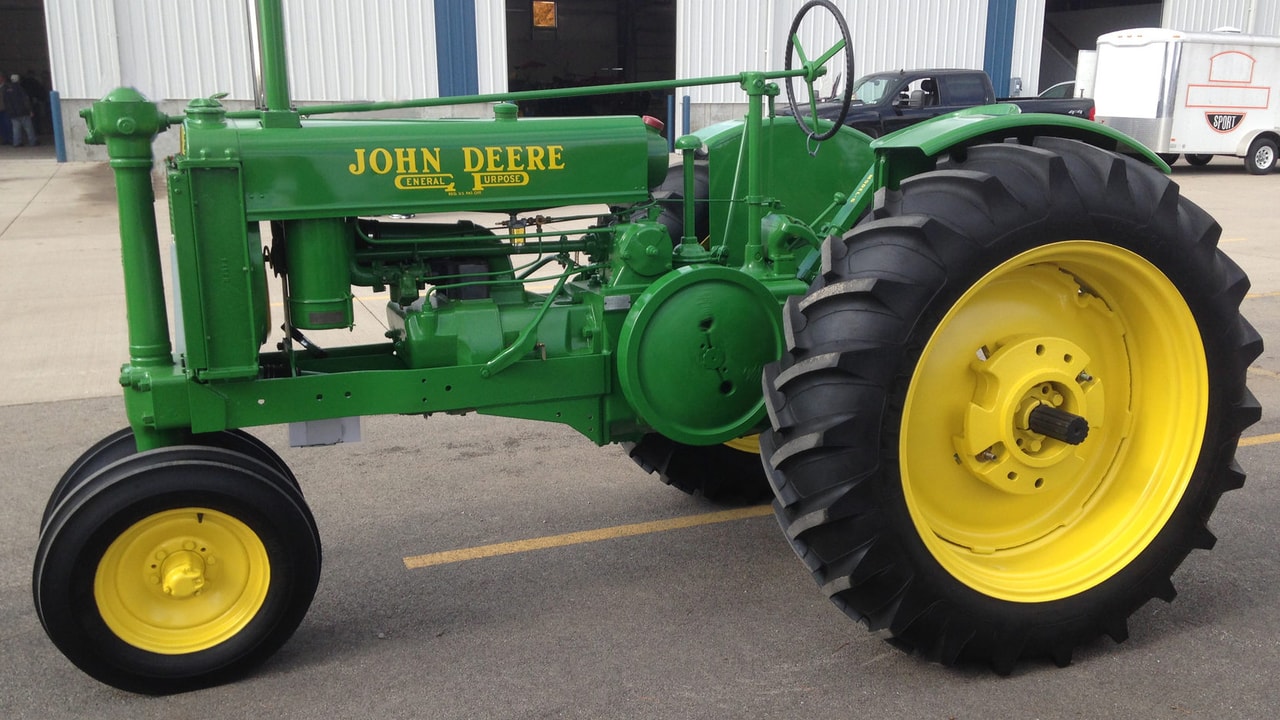

John Deere G Unstyled

Last Updated: June 2024

Overview

The John Deere G Unstyled is a model that served its users during its production run with a simple yet robust set of features. It has a traditional gear-driven transmission with 4 forward gears and 1 reverse, facilitating various tasks that require different speeds. The two-cylinder, all-fuel John Deere engine, retaining a unique displacement of 412.5 cubic inches, operates at a relatively low rated RPM of 975. Liquid-cooling technology maintains optimal engine temperatures, and users start the machine with a hand crank, which aligns with its "unstyled" designation, referring to its simplicity and functionality over aesthetics. The tractor operates on large Ag tires, with rear tires significantly larger than the front, providing the necessary traction in farming operations. Measuring 135 inches in length, 61.5 inches in width, and 84 inches in height, the tractor offers substantial size and presence. Weighing around 5000 lbs, this model is designed for durability and stability during operation.
Show more...

Key Specifications

Transmission: Gear

Operating Weight: 5000

Fuel Type: All fuel

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
All fuel
Induction Type
Compression
Cylinders
2
Displacement (ci)
412.5
Bore (in)
6.125
Stroke (in)
7
Rated RPM
975
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
4
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
135
Width (in)
61.5
Height (in)
84
Operating Weight (lb)
5000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
44
Front Tire Diameter (in)
-
Front Tire Width (in)
5
Rear Tire Diameter (in)
51.5
Rear Tire Width (in)
7
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Hand crank
Brake Type
-
Hydraulic System Type
-
