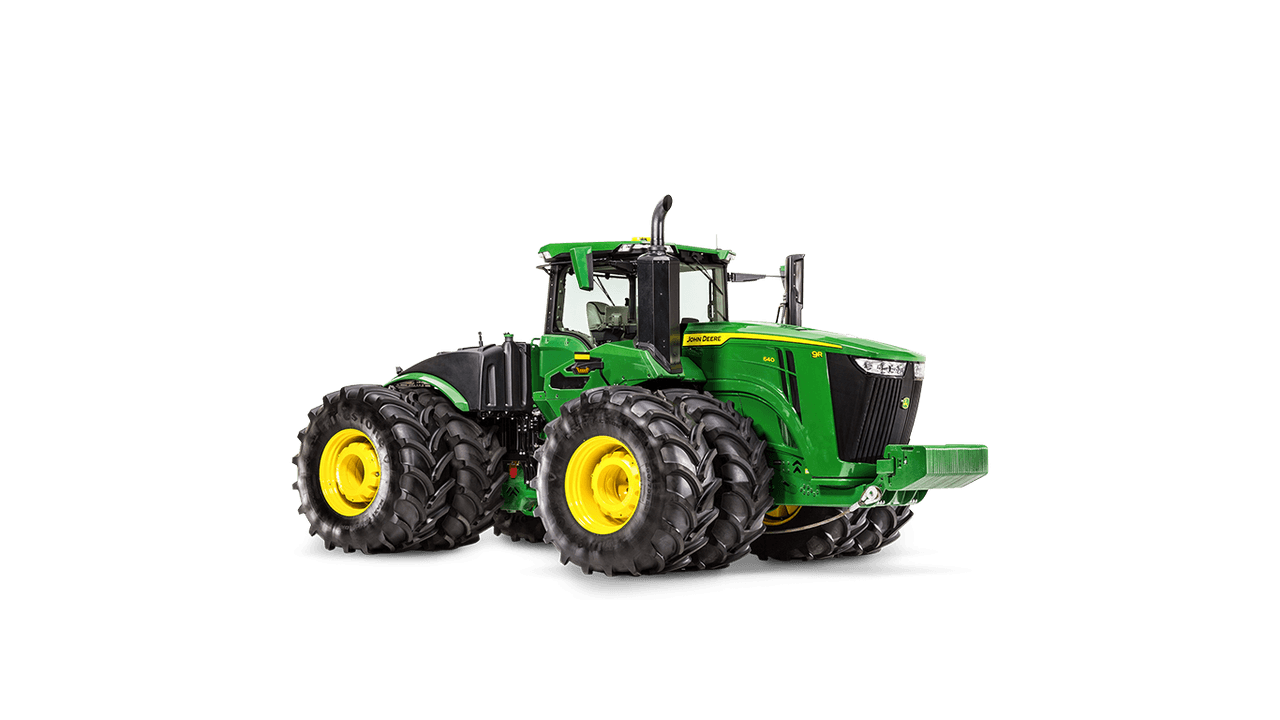

John Deere 9R 590

Last Updated: June 2024

Overview

The John Deere 9R 590 is a high-horsepower row crop tractor designed to deliver robust performance with its 6-cylinder, 24-valve, turbocharged aftercooled JD14 diesel engine. The engine has an impressive output of 582 horsepower with a rated RPM of 2100. For ease of operation and efficiency, it features an e18 full power shift transmission with 18 forward and 6 reverse gears. This model carries the advanced Tier IV emission standards, ensuring reduced environmental impact. The chassis and drive type specifications are not provided, but given its horsepower and typical John Deere offerings, this tractor likely has a substantial operating weight of 45980 lbs and may support four-wheel drive capabilities. Note the dual-height information indicating both cab and exhaust heights, which illustrates the substantial size of the vehicle. This tractor is engineered for large-scale farming tasks requiring significant power and is equipped with a closed-center hydraulic system.
Show more...

Key Specifications

Power Output: 582

Transmission: Full Power Shift

Operating Weight: 45980

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
JD14
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
6
Displacement (ci)
826.9
Bore (in)
5.2
Stroke (in)
6.5
Rated RPM
2100
Power Output (hp)
582

Transmission

Type
Full Power Shift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
312.8
Width (in)
173.3
Height (in)
147.3 (cab), 147.1 (exhaust, note in additional notes)
Operating Weight (lb)
45980

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
59.7
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
IVN/IV
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed Center Pressure/Flow Compensated
