John Deere 9620R

Last Updated: July 2024

Overview

The John Deere 9620R is a 4WD tractor from the 9R series, manufactured by John Deere in Waterloo, Iowa, USA since 2015. The tractor is powered by a 14.9 L (912.0 cu·in) six-cylinder diesel Cummins QSX15 engine and is equipped with an e18 PowerShift transmission, offering 18 forward and 6 reverse gears. With articulated power steering, hydraulic wet disc brakes, and a Command View Cab III standard cabin, the 9620R offers robust features for heavy-duty agricultural tasks. The tractor has a large fuel tank capacity of 400 US gallons and is designed for reliable performance and durability. The specifications have been updated based on independent test results from the Nebraska Tractor Test Laboratory, including corrected operating weight, maximum torque, torque rise, drawbar performance, and additional details on chassis tread width, torque rise at specific RPM, power increase, and hydraulic performance.

Key Specifications

Power Output: 620

Transmission: Full power shift

Drive Type: 4WD

Operating Weight: 47895

Fuel Type: Diesel

Lift Capacity: 15000

Image Gallery

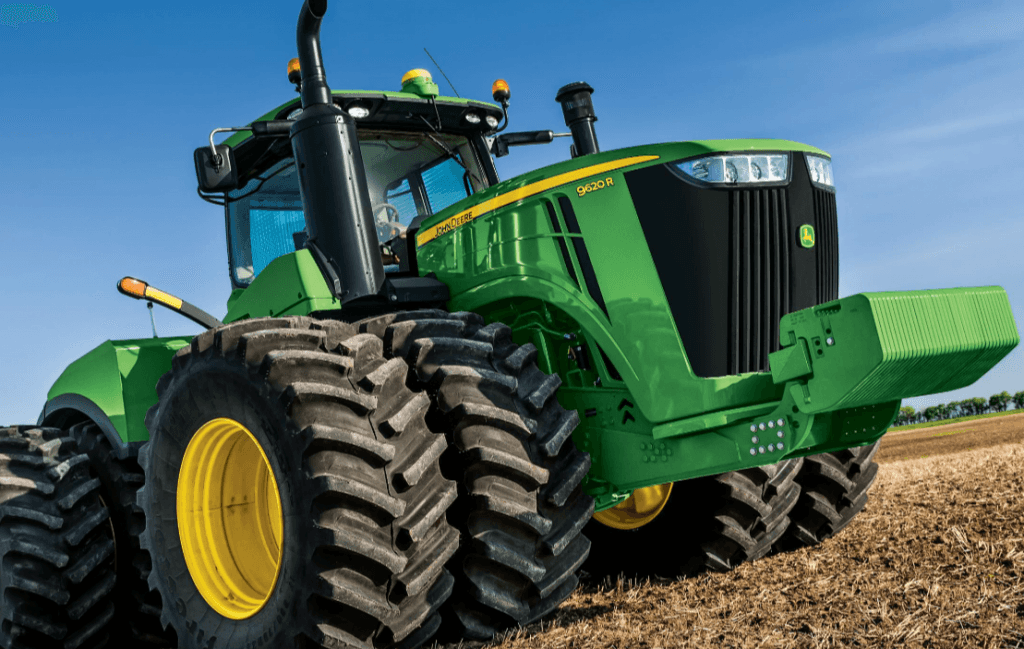

John Deere 9620R Tractor

Technical Specifications

Engine

Manufacturer: Cummins
Model: QSX15
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 6
Displacement (ci): 912
Bore (in): 5.39
Stroke (in): 6.65
Rated RPM: 2100
Power Output (hp): 620

Transmission

Type: Full power shift
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 319.3
Width (in): 192.9
Height (in): 144.9
Operating Weight (lb): 47895

Power Take-Off (PTO)

PTO Type: Independent with electro-hydraulic clutch
PTO Speed 1 (rpm): 1000
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: Articulated power
Coolant Capacity (qts): 87.7
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): 15000
Operator Station Type: Command View Cab III (standard)
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Closed-center pressure/flow compensated

Test Results

Nebraska Tractor Test Laboratory - Test Date: November 10 to November 20, 2015

Maximum Power and Fuel Consumption

Maximum Power (1 hour): 365.74 HP (272.73 kW) at 1701 rpm
Fuel Consumption at Maximum Power: 19.71 Gal/hr (74.62 l/h) with a fuel efficiency of 0.377 lb/hp.hr (0.230 kg/kW.h)
DEF Consumption: 0.78 Gal/hr (2.95 l/h)
Rated Engine Speed: 322.64 HP (240.59 kW) at 2101 rpm, fuel consumption of 19.68 Gal/hr (74.49 l/h), and DEF consumption of 0.72 Gal/hr (2.74 l/h)

Drawbar Performance

Maximum Power: 495.25 HP (369.30 kW) with a drawbar pull of 35076 lbs (156.02 kN) at 5.30 mph (8.52 km/h)
Fuel Consumption at Max Power: 0.436 lb/hp.hr (0.265 kg/kW.h) with a fuel efficiency of 16.07 Hp.hr/gal (3.17 kW.h/l)
75% Pull at Max Power: 390.81 HP (291.43 kW) with a drawbar pull of 26336 lbs (117.15 kN) at 5.56 mph (8.96 km/h), fuel consumption of 0.442 lb/hp.hr (0.269 kg/kW.h), and DEF consumption of 0.020 Gal/hr (0.012 l/h)

Torque and Engine Performance

Maximum Torque: 1194 lb.-ft. (1619 Nm) at 1501 rpm
Torque Rise: 48.0% with power increase at 1701 rpm of 13.4%

Hydraulic Performance

Maximum Force Exerted: 21446 lbs (95.4 kN) at hitch points
Pump Delivery Rate: 60.0 GPM (227.0 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 92.0 HP (68.6 kW) at delivery pressure of 2584 psi (178 bar)

Overall Efficiency

Fuel Efficiency at 1000 rpm PTO Speed: 17.80 Hp.hr/gal (3.51 kW.h/l)
Fuel Consumption: 20.13 Gal/hr (76.20 l/h) at 1895 rpm

NTTL.(2015).Nebraska OECD Tractor test 2135 for John Deere 9620R Diesel. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from http://digitalcommons.unl.edu/tractormuseumlit/2551
