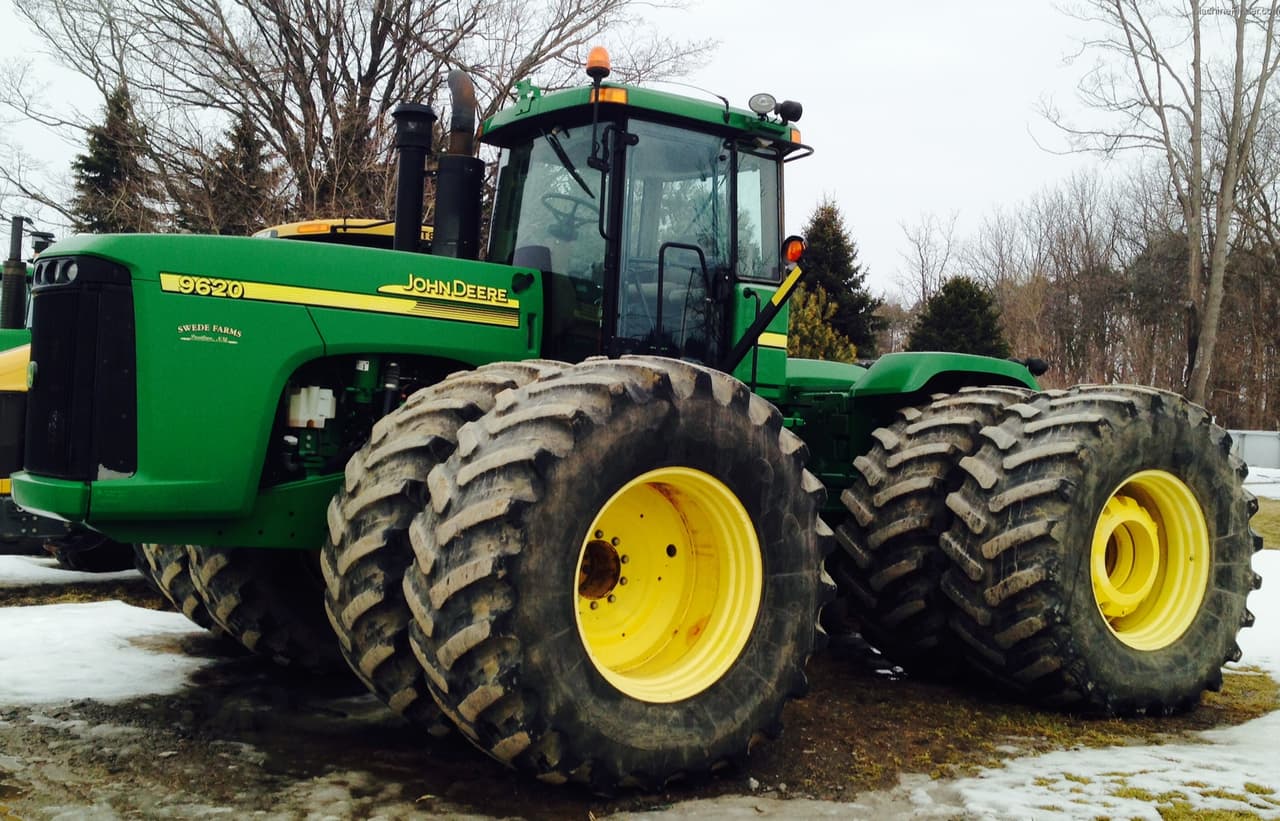

John Deere 9620

Last Updated: June 2024

Overview

The John Deere 9620 is a formidable four-wheel-drive tractor that was a part of John Deere's 9020 series. Manufactured in Waterloo, Iowa, USA, this tractor is designed to handle a variety of heavy-duty farming tasks. Equipped with a six-cylinder, turbocharged diesel engine that displaces 765 cubic inches (12.5 liters), it delivers a solid 500 horsepower. Its full power shift transmission enables it to have 18 forward and 6 reverse gears, offering great flexibility in speed and handling. The 9620 also features a hydrostatic power steering system and hydraulic wet disc brakes for efficient operation and control. The CommandView cab provides a comfortable operating environment, which is vital for long working hours. With impressive lift capacities and the capability to operate with various hydraulic implements, the John Deere 9620 remains a reliable choice for those in the agricultural sector.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 500

Transmission: full power shift

Drive Type: 4WD

Operating Weight: 39100

Fuel Type: Diesel

John Deere 9620 vs. Similar Tractors

Power Output
Excellent
Greater than 97% of similar tractors.
Hitch Capacity
Above Average
Greater than 88% of similar tractors.
Operating Weight
Above Average
Greater than 74% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
liquid-cooled
Cylinder Orientation
inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
turbocharged
Cylinders
6
Displacement (ci)
765
Bore (in)
5
Stroke (in)
6.5
Rated RPM
2100
Power Output (hp)
500

Transmission

Type
full power shift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
274
Width (in)
115.5
Height (in)
-
Operating Weight (lb)
39100

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
38
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
III
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
13871
Operator Station Type
CommandView cab
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
closed center pressure/flow compensated
