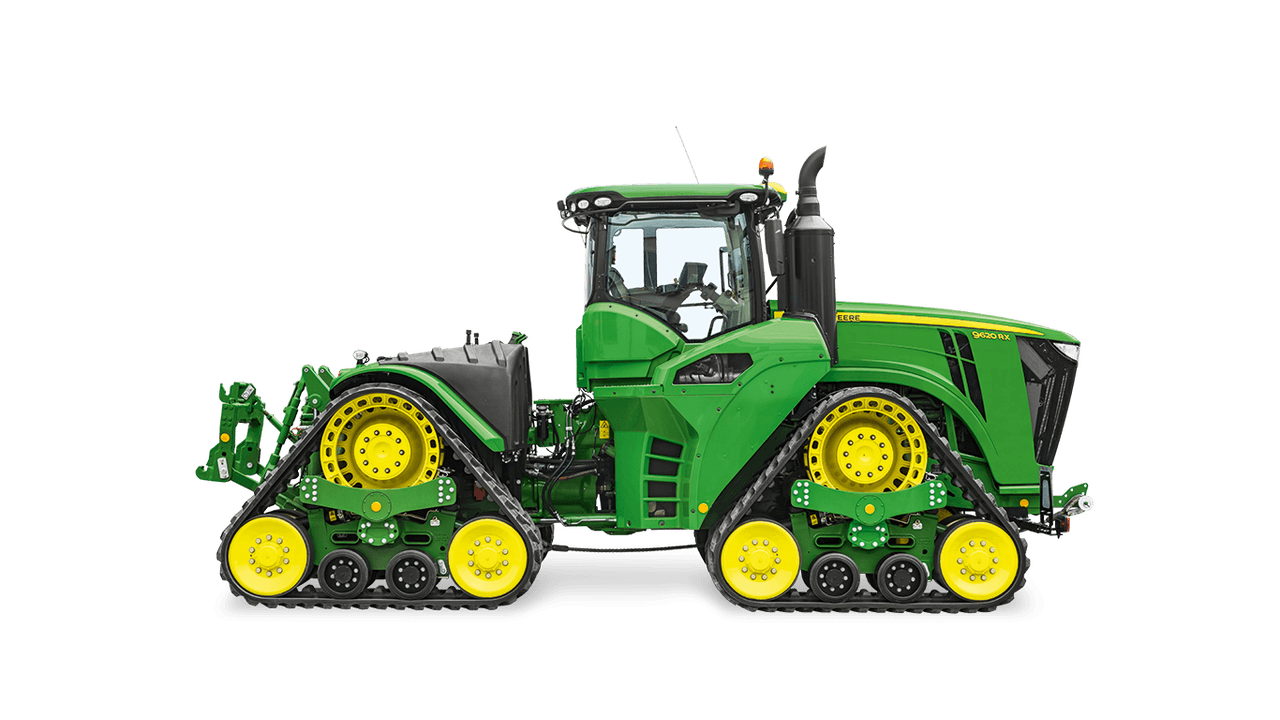

John Deere 9570RX

Last Updated: June 2024

Overview

The John Deere 9570RX is a large agricultural crawler, part of John Deere's 9R series, and is particularly suitable for heavy cultivation and earthmoving tasks thanks to its robust track system and powerful Cummins QSX15 six-cylinder diesel engine. The articulated-crawler design aids in maneuvering and operation on tough terrains, while the e18 PowerShift transmission provides 18 forward and 6 reverse gears, allowing for versatility and precision in various agricultural operations. CommandView III cab enhances operator comfort and productivity, especially during long working hours. The tractor's high horsepower and heavy-duty chassis make it an excellent choice for large-scale farming operations that demand reliability and high performance.
Show more...

Key Specifications

Category: Agricultural, Crawler

Power Output: 570

Transmission: Full power shift

Drive Type: Track

Operating Weight: 55500

Fuel Type: Diesel

Image Gallery

John Deere 9570RX Tractor John Deere 9570RX Tractor John Deere 9570RX Tractor John Deere 9570RX Tractor John Deere 9570RX Tractor John Deere 9570RX Tractor

John Deere 9570RX vs. Similar Tractors

Power Output
Excellent
Greater than 94% of similar tractors.
Hitch Capacity
Excellent
Greater than 100% of similar tractors.
Operating Weight
Above Average
Greater than 73% of similar tractors.

Technical Specifications

Engine

Manufacturer
Cummins
Model
QSX15
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Variable geometry turbocharger
Cylinders
6
Displacement (ci)
912
Bore (in)
5.39
Stroke (in)
6.65
Rated RPM
-
Power Output (hp)
570

Transmission

Type
Full power shift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
321.7
Width (in)
116.9 (for 30-in tracks), 122.8 (for 36-in tracks)
Height (in)
162.2
Operating Weight (lb)
55500

Power Take-Off (PTO)

PTO Type
Independent with electro-hydraulic clutch (optional)
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Articulated-crawler
Drive Type
Track
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
IV/IVN Opt
Hitch Position
Rear
Hitch Capacity (lb)
15000 - 20000 (depending on configuration)
Operator Station Type
CommandView III cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed-center pressure/flow compensated

Test Results

Nebraska Tractor Test Laboratory - Test Date: April 7 to 19, 2017

Maximum Power and Fuel Consumption

  • Maximum Power (derated mode): 355.97 HP (265.45 kW) at 1650 rpm
  • Fuel Consumption at Maximum Power: 19.22 Gal/hr (72.74 l/h) with a fuel efficiency of 0.378 lb/hp.hr (0.230 kg/kW.h)
  • DEF Consumption: 0.98 Gal/hr (3.71 l/h)

Drawbar Performance

  • Power at Rated Engine Speed (7th Gear, Manual mode): 446.57 HP (333.00 kW) with a drawbar pull of 33904 lbs (150.81 kN) and a speed of 4.94 mph (7.95 km/h)
  • Fuel Consumption at Rated Speed: 0.447 lb/hp.hr (0.272 kg/kW.h) with a fuel efficiency of 15.67 Hp.hr/gal (3.09 kW.h/l)

Torque and Engine Performance

  • Maximum Torque: 1173 lb-ft (1591 Nm) at 1499 rpm
  • Torque Rise: 46.4% with a power increase at 1650 rpm of 11.1%

Hydraulic Performance

  • Maximum Force Exerted (Category 4N): 20965 lbs (93.3 kN) with dual 110 mm lift cylinders
  • Pump Delivery Rate at Minimum Pressure and Rated Engine Speed: 60.5 GPM (228.9 l/min)
  • Hydraulic Power at Delivery Pressure of 2533 psi (175 bar): 90.9 HP (67.8 kW)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.41 Hp.hr/gal (3.43 kW.h/l)
  • Fuel Consumption at Rated Engine Speed: 19.68 Gal/hr (74.50 l/h) with a DEF consumption of 0.95 Gal/hr (3.58 l/h)



NTTL. (2017). Nebraska OECD Tractor test 2173 for John Deere 9570RX Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2285
