John Deere 9570R

Last Updated: July 2024

Overview

The John Deere 9570R is a powerful agricultural tractor designed to handle large-scale farming operations. Equipped with a Cummins QSX15 engine, it offers a liquid-cooled 6-cylinder diesel engine with a displacement of 912 cubic inches. The engine boasts a rated power of 570 horsepower according to EC 97/98 standards and can reach up to 628 horsepower for maximum output. The tractor features an e18 PowerShift transmission, providing 18 forward and 6 reverse gears for a broad range of speed options. With a shipping weight of 43,550 lbs, the 9570R is built for durability and performance. Despite its size, the tractor's length measures 319.5 inches and a width of 193 inches, with an overall height reaching 163 inches. The tractor includes a high-capacity hydraulic system with closed-center pressure/flow compensation, known for its efficiency and responsiveness. This model utilizes an advanced fuel system, described as high-pressure common rail, maintaining optimal fuel efficiency and emissions compliance, and includes an electric starter with a 12-volt system.

Key Specifications

Power Output: 570 hp (Rated Power) / 628 hp (Maximum Power)

Transmission: Full Power Shift

Operating Weight: 43550

Fuel Type: Diesel

Image Gallery

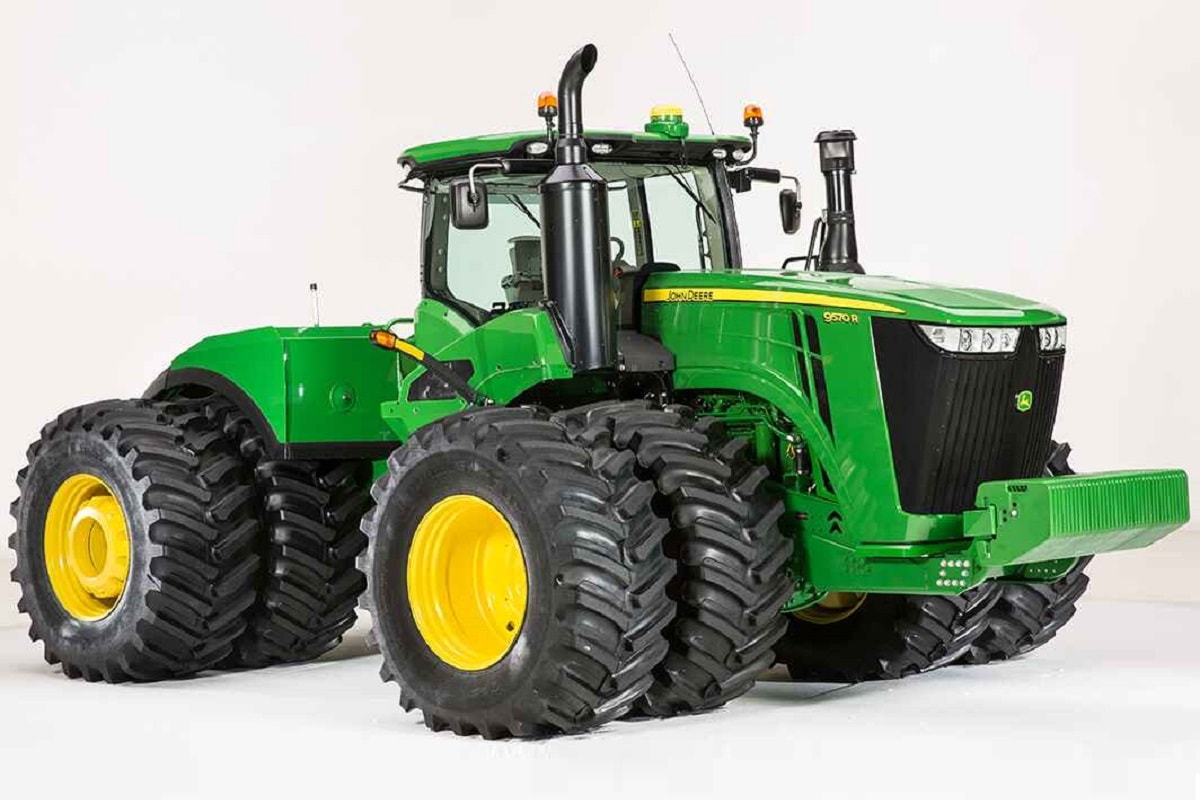

John Deere 9570R Tractor

Technical Specifications

Engine

Manufacturer: Cummins
Model: QSX15
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 6
Displacement (ci): 912
Bore (in): 5.39
Stroke (in): 6.65
Rated RPM: 2100
Power Output (hp): 570 hp (Rated Power) / 628 hp (Maximum Power)

Transmission

Type: Full Power Shift
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 319.5
Width (in): 193
Height (in): 163
Operating Weight (lb): 43550

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 87.7
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: IV/IVN Opt
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed-Center Pressure/Flow Compensated

Test Results

Nebraska Tractor Test Laboratory - Test Date: November 3 - 13, 2015

Maximum Power and Fuel Consumption

Rated Engine Speed (PTO speed—1110 rpm): 313.25 HP (233.59 kW) at 2103 rpm
Fuel Consumption: 19.51 Gal/hr (73.87 l/h) with an efficiency of 0.436 lb/hp.hr (0.265 kg/kW.h)
DEF Consumption: 0.99 Gal/hr (3.76 l/h)
Standard Power Take-off Speed (1000 rpm): 352.19 HP (262.63 kW) at 1895 rpm
Fuel Consumption: 20.13 Gal/hr (76.20 l/h) with an efficiency of 0.400 lb/hp.hr (0.243 kg/kW.h)
DEF Consumption: 1.02 Gal/hr (3.84 l/h)
Maximum Power (1 hour): 363.15 HP (270.80 kW) at 1702 rpm
Fuel Consumption: 19.84 Gal/hr (75.10 l/h) with an efficiency of 0.383 lb/hp.hr (0.233 kg/kW.h)
DEF Consumption: 1.07 Gal/hr (4.06 l/h)

Drawbar Performance

Maximum Power—7th Gear (Manual mode):
Power: 450.82 HP (336.17 kW)
Drawbar Pull: 35508 lbs (157.95 kN)
Speed: 4.76 mph (7.66 km/h)
Fuel Consumption: 0.446 lb/hp.hr (0.271 kg/kW.h) with an efficiency of 15.71 Hp.hr/gal (3.10 kW.h/l)
DEF Consumption: 0.017 lb/hp.hr (0.010 kg/kW.h)

Torque and Engine Performance

Maximum Torque: 1179 lb.-ft. (1599 Nm) at 1501 rpm
Torque Rise: 50.7%
Torque rise at 1681 engine rpm: 44%
Power increase at 1702 rpm: 15.9 %

Hydraulic Performance

Maximum Force Exerted:
Category 4N (1 x 90 mm and 1 x 100 mm): 16040 lbs (71.3 kN)
Category 4 (2 x 110 mm): 20997 lbs (93.4 kN)
Pump Delivery Rate at Minimum Pressure and Rated Engine Speed:
Base Pump: 60.8 GPM (230.1 l/min)
Tandem Pump: 57.2 GPM (216.5 l/min)
Hydraulic Power:
Base Pump: 89.6 HP (66.8 kW)
Tandem Pump: 81.6 HP (60.8 kW)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.50 Hp.hr/gal (3.45 kW.h/l)
Fuel Consumption: 20.13 Gal/hr (76.20 l/h) at 1895 rpm

NTTL.(2015).Nebraska OECD Tractor Test 2133 for John Deere 9570R Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2553
