John Deere 9560R

Last Updated: July 2024

Overview

The John Deere 9560R is a large four-wheel drive tractor that was part of the 9R/RT series, manufactured in Waterloo, Iowa, USA. With a substantial operating weight of 43,410 pounds and powered by a robust six-cylinder, 13.5L John Deere PowerTech PSX turbocharged diesel engine, this tractor is designed to handle large-scale farming operations. The engine outputs up to 560 horsepower at 2100 RPM and works through an 18-speed selective gear fixed ratio transmission with full range operator-controlled powershift, accommodating a diverse range of tasks with efficiency. Nebraska Tractor Test results show a maximum drawbar power of 454.33 HP and a maximum torque of 1193 lb-ft. With its articulated 4WD chassis, hydrostatic power steering, and hydraulic wet disc brakes, the 9560R provides the power and maneuverability needed for heavy-duty work. The tractor features a wheelbase of 137.8 inches and a variable tread width of 59.1 to 163.8 inches. Its hydraulic system delivers 53.3 GPM at 2517 psi, producing 76.0 hydraulic horsepower. The spacious CommandView II cab ensures operator comfort during extended use.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 560

Transmission: Selective gear fixed ratio with full range operator-controlled powershift

Drive Type: 4WD

Operating Weight: 43410

Fuel Type: Diesel

Image Gallery

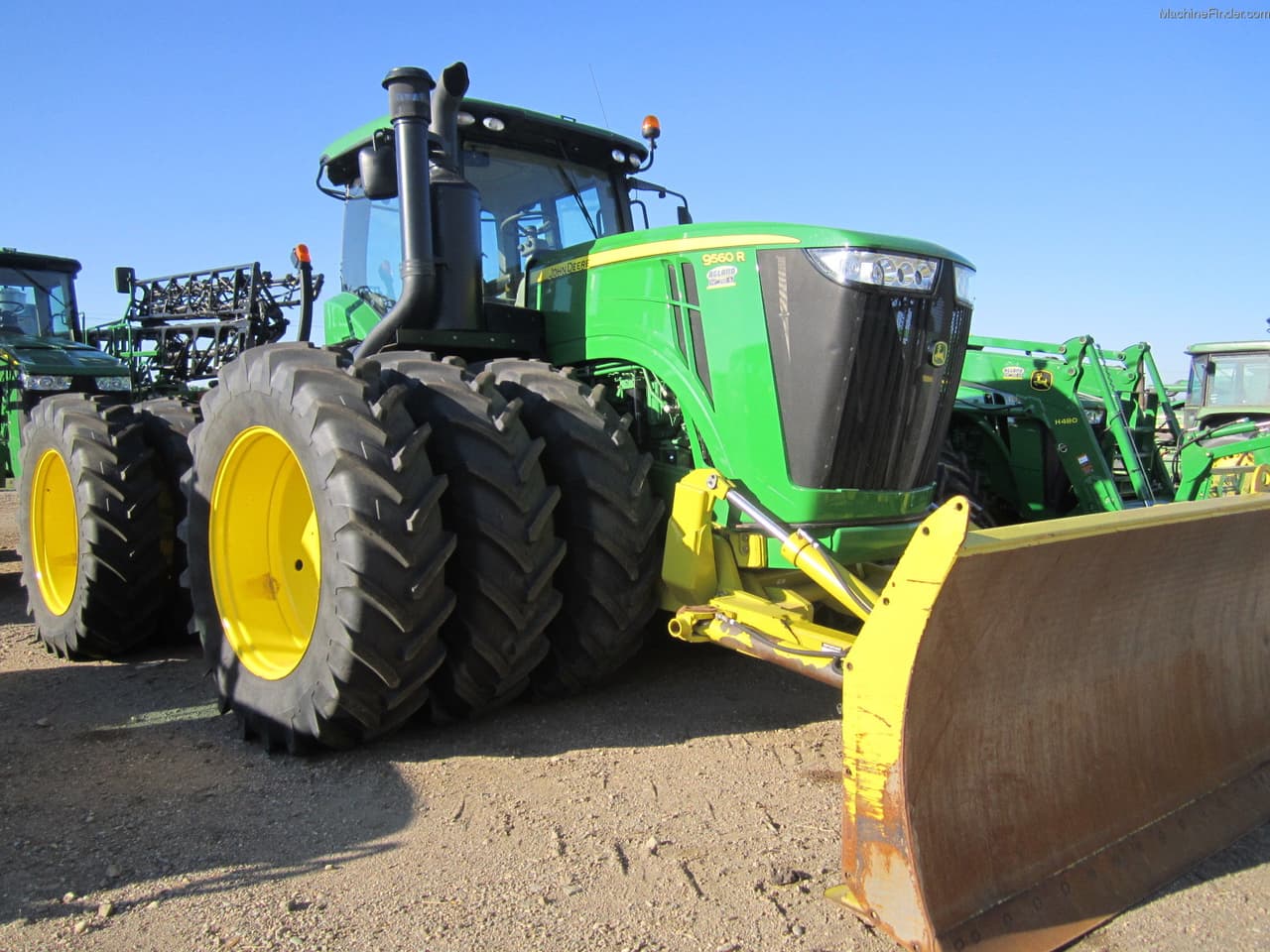

John Deere 9560R Tractor

John Deere 9560R vs. Similar Tractors

Power Output

Excellent

Greater than 98% of similar tractors.

Hitch Capacity

Excellent

Greater than 100% of similar tractors.

Operating Weight

Above Average

Greater than 75% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PowerTech PSX
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: 24-valve
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 826
Bore (in): 5.197
Stroke (in): 6.496
Rated RPM: 2100
Power Output (hp): 560

Transmission

Type: Selective gear fixed ratio with full range operator-controlled powershift
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 282
Width (in): 120
Height (in): 145
Operating Weight (lb): 43410

Power Take-Off (PTO)

PTO Type: Independent (optional)
PTO Speed 1 (rpm): 1000
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: Hydraulic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: IVN/IV
Hitch Position: Rear
Hitch Capacity (lb): 15300 (Optional: 20000)
Operator Station Type: Cab (CommandView II with air-conditioning)
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Closed center pressure flow compensated (PFC)

Test Results

Nebraska Tractor Test Laboratory - Test Date: October 9 to 26, 2012

Maximum Power and Fuel Consumption

Maximum Power: 364.23 HP (271.61 kW) at 1749 rpm
Fuel Consumption at Maximum Power: 21.10 Gal/hr (79.86 l/h) with a fuel efficiency of 0.408 lb/hp.hr (0.248 kg/kW.h)
DEF Consumption: Not listed

Drawbar Performance

Power at Rated Engine Speed (7th Gear): 454.33 HP (338.79 kW) with a drawbar pull of 35438 lbs (157.63 kN) and a speed of 4.81 mph (7.74 km/h)
Fuel Consumption at Rated Speed: 0.450 lb/hp.hr (0.274 kg/kW.h) with a fuel efficiency of 15.64 Hp.hr/gal (3.08 kW.h/l)

Torque and Engine Performance

Maximum Torque: 1193 lb.-ft. (1618 Nm) at 1401 rpm
Torque Rise: 48.3% with a power increase at 1679 rpm of 13.1%

Hydraulic Performance

Maximum Force Exerted: 21123 lbs (94.0 kN) at hitch points
Pump Delivery Rate: 53.3 GPM (201.8 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 76.0 HP (56.7 kW) at delivery pressure of 2517 psi (173 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 16.80 Hp.hr/gal (3.31 kW.h/l)
Fuel Consumption: 21.28 Gal/hr (80.56 l/h) at 1895 rpm

Nebraska Tractor Test Lab. (2012). Test 2044: John Deere 9560R. Nebraska Tractor Tests. 2449. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2449
