John Deere 9530T

Last Updated: July 2024

Overview

The John Deere 9530T is a robust and powerful agricultural crawler tractor, designed for heavy-duty farm and fieldwork. Boasting an impressive 475 horsepower engine, it utilizes a John Deere PowerTech Plus 6-cylinder turbocharged aftercooled diesel engine with a large 826 cubic inch displacement. Its full power shift transmission with 18 forward and 6 reverse gears allows for efficient field operations. With a weight of 43,990 pounds (with operator), this machine is built to perform in demanding conditions, supported by its substantial track and differential steer system. The cooling system capacity stands at 56 quarts and an engine oil capacity of 63.2 quarts, ensuring the tractor can operate for extended periods without overheating or requiring frequent maintenance. The 9530T features a spacious cab for the operator and the convenience of an electric starter. The precise electro-hydraulic power steering adds to the tractor's smooth operation. Despite its power, the tractor provides reasonable ground clearance and drawbar clearance, ensuring agility over varied terrain.

Key Specifications

Category: Agricultural, Crawler

Power Output: 475

Transmission: Full power shift

Drive Type: Track

Operating Weight: 43990

Fuel Type: Diesel

Image Gallery

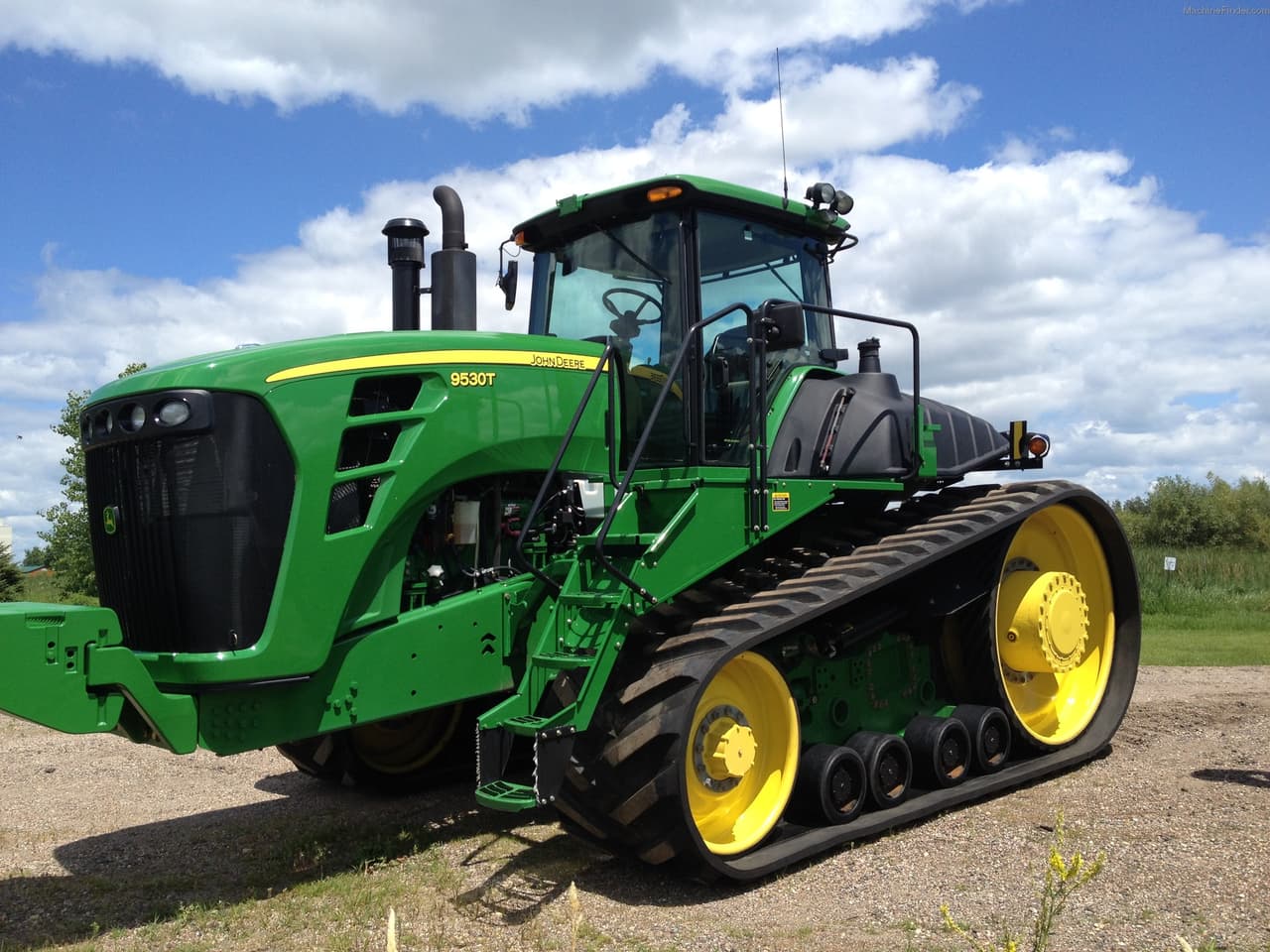

John Deere 9530T Tractor

John Deere 9530T vs. Similar Tractors

Power Output

Above Average

Greater than 89% of similar tractors.

Operating Weight

Average

Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PowerTech Plus
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged aftercooled
Cylinders: 6
Displacement (ci): 826
Bore (in): 5.197
Stroke (in): 6.496
Rated RPM: 2100
Power Output (hp): 475

Transmission

Type: Full power shift
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 237
Width (in): 136
Height (in): 155
Operating Weight (lb): 43990

Power Take-Off (PTO)

PTO Type: Optional Transmission or Live PTO
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: Crawler
Drive Type: Track
Steering Type: Electro-hydraulic power
Coolant Capacity (qts): 56
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: 4/4N (optional)
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric Starter
Brake Type: Hydraulic wet discs
Hydraulic System Type: Closed-center pressure flow compensated (PFC)

Test Results

Nebraska Tractor Test Laboratory - Test Date: April 28 to May 7, 2008

Maximum Power and Fuel Consumption

Maximum Power: 366.03 HP (272.95 kW) at 2096 rpm
Fuel Consumption at Maximum Power in 7th Gear: 23.94 Gal/hr (90.63 l/h) with a fuel efficiency of 0.466 lb/hp.hr (0.284 kg/kW.h)

Drawbar Performance

Power at Rated Engine Speed (7th Gear): 366.03 HP (272.95 kW) with a drawbar pull of 31961 lbs (142.17 kN) and a speed of 4.29 mph (6.91 km/h)
Fuel Consumption at Rated Speed (7th Gear): 0.466 lb/hp.hr (0.284 kg/kW.h) with a fuel efficiency of 15.03 Hp.hr/gal (2.96 kW.h/l)

Torque and Engine Performance

Maximum Torque: Not explicitly provided in this report
Torque Rise: Not explicitly provided in this report

Hydraulic Performance

Maximum Force Exerted: 16070 lbs (71.5 kN) at hitch points
Pump Delivery Rate: 51.6 GPM (195.2 l/min) at minimum pressure and rated engine speed combined
Hydraulic Power: 72.6 HP (54.1 kW) at delivery pressure of 2492 psi (172 bar)

Overall Efficiency

Fuel Efficiency at Maximum Power in 7th Gear: 15.03 Hp.hr/gal (2.96 kW.h/l)
Fuel Consumption: 23.94 Gal/hr (90.63 l/h) at 2096 rpm

Additional Information

Turbo Boost Pressure: Nominal 29.7 - 33.4 psi (205 - 230 kPa), measured at 31.5 psi (217 kPa)
Fuel Specifics: Specific gravity converted to 60°/60°F (15°/15°C) 0.8419, Fuel weight 7.010 lbs/gal (0.840 kg/l)
Lubricant Data: Engine: SAE 15W-40 API service classification CJ-4, Transmission and hydraulic: John Deere Hy-Gard fluid
Sound Levels: No load in 7th gear: 73.0 dB(A), Transport speed - no load - 18th gear: 74.6 dB(A), Bystander in 18th gear: 92.4 dB(A)

Nebraska Tractor Test Lab.(2008).Test 1925: John Deere 9530T Diesel. Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2307
