John Deere 9530

Last Updated: June 2024

Overview

The John Deere 9530 is a large, four-wheel drive tractor, part of the 9030 series. Manufactured by John Deere in Waterloo, Iowa, USA, it offers a powerful 13.5 L, six-cylinder, turbocharged aftercooled diesel engine rated at 475 horsepower. With hydrostatic power steering, hydraulic wet disc brakes, and a CommandView cab as standard, this tractor provides both comfort and performance. It is capable of 18 forward and 6 reverse gears with an electronic wet disc clutch. The tractor's weight ranges from 37,747 to 39,845 pounds and it comes with a hefty 350-gallon fuel tank capacity, making it well suited for large-scale farming operations and heavy-duty tasks.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 475

Transmission: Full power shift

Drive Type: 4WD

Operating Weight: 39845

Fuel Type: Diesel

Image Gallery

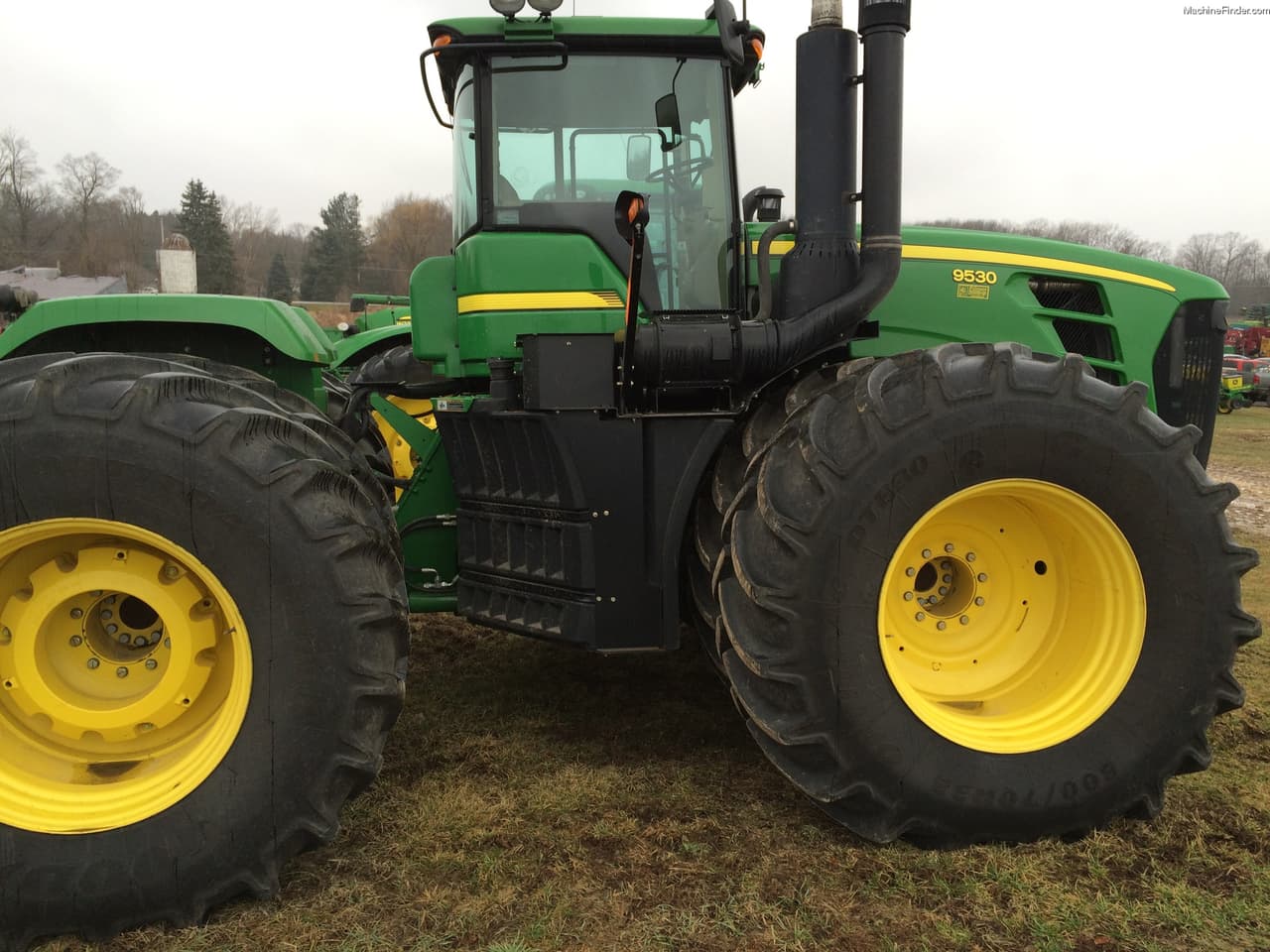

John Deere 9530 Tractor

John Deere 9530 vs. Similar Tractors

Power Output

Excellent

Greater than 97% of similar tractors.

Hitch Capacity

Above Average

Greater than 89% of similar tractors.

Operating Weight

Above Average

Greater than 75% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PowerTech Plus
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged, air-to-air aftercooling
Cylinders: 6
Displacement (ci): 826.7
Bore (in): 5.197
Stroke (in): 6.496
Rated RPM: 2100
Power Output (hp): 475

Transmission

Type: Full power shift
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 270
Width (in): 118.6
Height (in): 142
Operating Weight (lb): 39845

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 70
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: 4/4N
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): 15300
Operator Station Type: CommandView Cab
Starter Type: Electric
Brake Type: Hydraulic wet discs
Hydraulic System Type: Closed-center pressure and flow compensating
