John Deere 9510R

Last Updated: July 2024

Overview

The John Deere 9510R is a high-powered, four-wheel drive tractor designed for heavy-duty farming applications. It features a selective gear fixed ratio transmission with full range operator controlled powershift, providing 18 forward and 6 reverse gears. The engine is a 6-cylinder, 24-valve, liquid-cooled PowerTech PSX diesel with two turbochargers and an air-to-air aftercooler. It has a displacement of 826 cubic inches and produces 510 hp at a rated 2100 rpm. The tractor has an operating weight of 44,430 lbs and is equipped with wet multiple disc hydraulically actuated foot pedal brakes. The exhaust system includes a regenerative particulate filter integrated within a vertical muffler. The hydraulic control system is direct engine driven with quick attach capabilities and OECD static test lift cylinders. Additional notable features include a maximum torque of 1210 lb-ft at 1450 rpm and a maximum torque rise of 51.4%. Detailed fuel consumption characteristics are available from the test results.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 510

Transmission: selective gear fixed ratio with full range operator controlled powershift

Drive Type: 4WD

Operating Weight: 44430

Fuel Type: diesel

Image Gallery

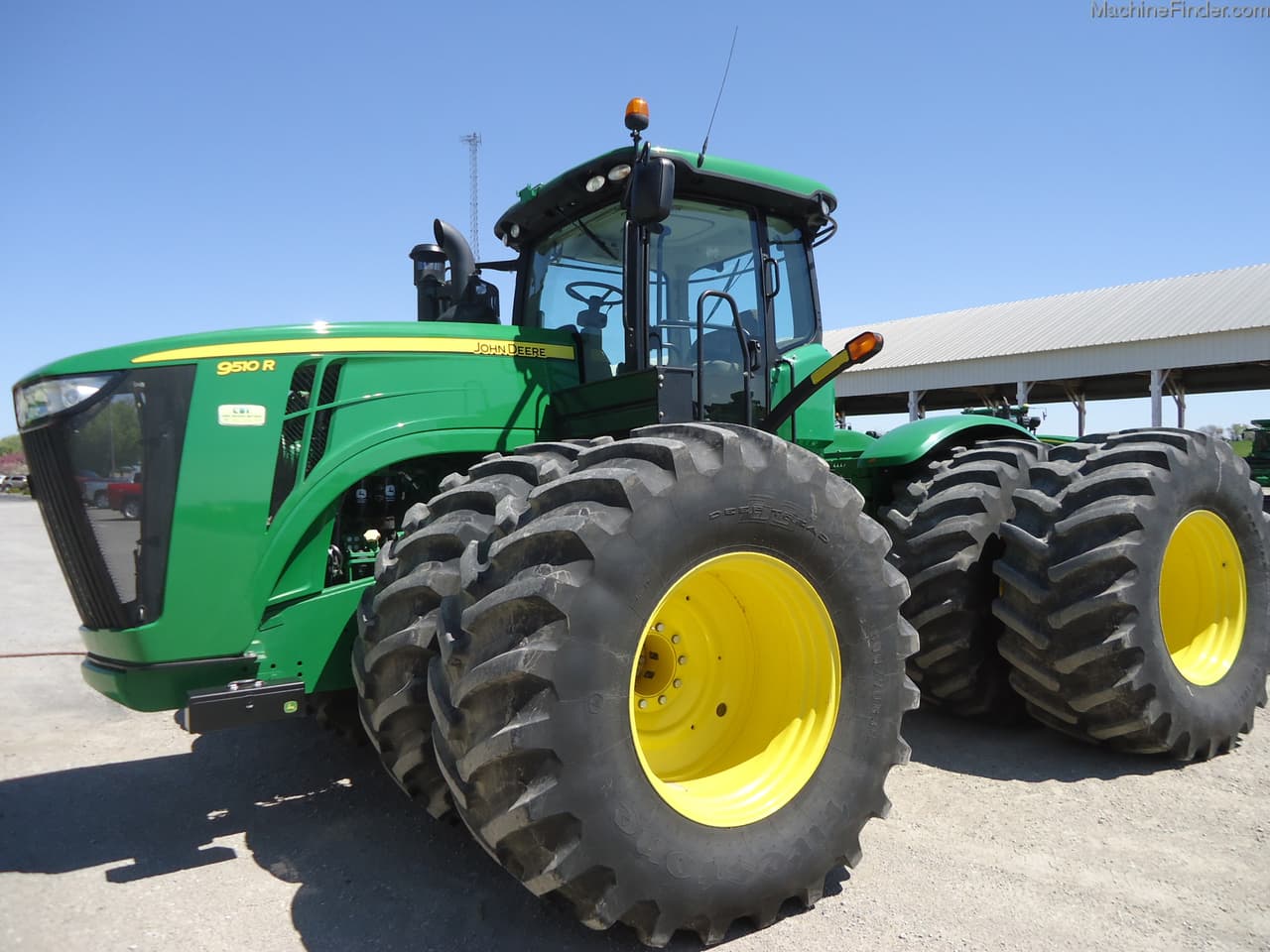

John Deere 9510R Tractor

John Deere 9510R vs. Similar Tractors

Power Output

Excellent

Greater than 98% of similar tractors.

Operating Weight

Above Average

Greater than 76% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PowerTech PSX
Cooling Type: liquid-cooled
Cylinder Orientation: inline
Valve Configuration: 24-valve
Fuel Type: diesel
Induction Type: two turbochargers and air-to-air aftercooler
Cylinders: 6
Displacement (ci): 826
Bore (in): 5.197
Stroke (in): 6.496
Rated RPM: 2100
Power Output (hp): 510

Transmission

Type: selective gear fixed ratio with full range operator controlled powershift
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 282
Width (in): 120
Height (in): Cab: 145, Hood: 108, Exhaust: 177, highest value taken
Operating Weight (lb): 44430

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: hydraulic power
Coolant Capacity (qts): -
Front Tire Diameter (in): 70
Front Tire Width (in): 710/70R42, assume aspect ratio 70 (R series tire), width cannot be accurately assumed
Rear Tire Diameter (in): 70
Rear Tire Width (in): 710/70R42, assume aspect ratio 70 (R series tire), width cannot be accurately assumed
Front/Rear Rim Diameter (in): 42
Tire Type: -
Manufacture - End Year: -
Hitch Type: 4N/4
Hitch Category: 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (12 volt)
Brake Type: -
Hydraulic System Type: closed center pressure flow compensated; direct engine drive; Quick Attach: Yes; OECD Static test lift cylinders

Test Results

Nebraska Tractor Test Laboratory - Test Date: October 23-31, 2012

Maximum Power and Fuel Consumption

Maximum Power (Rated Engine Speed): 320.07 HP (238.67 kW) at 2099 rpm
Fuel Consumption at Rated Speed: 20.96 Gal/hr (79.34 l/h) with a fuel efficiency of 0.461 lb/hp.hr (0.280 kg/kW.h)
Maximum Power Tested: 368.33 HP (274.67 kW) at 1650 rpm

Drawbar Performance

Power at Maximum Power (7th Gear): 410.97 HP (306.46 kW) with a drawbar pull of 31,792 lbs (141.42 kN) and a speed of 4.85 mph (7.80 km/h)
Fuel Consumption at Maximum Power: 0.461 lb/hp.hr (0.280 kg/kW.h) with a fuel efficiency of 15.28 Hp.hr/gal (3.01 kW.h/l)

Torque and Engine Performance

Maximum Torque: 1210 lb.-ft. (1640 Nm) at 1450 rpm
Torque Rise: 51.4% with a power increase at 1650 engine rpm of 15.1%

Hydraulic Performance

Maximum Force Exerted: 21,123 lbs (94.0 kN) at hitch points
Combined Pump Delivery Rate: 84.7 GPM (320.7 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 76.4 HP (56.9 kW) at delivery pressure of 2490 psi (172 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 16.79 Hp.hr/gal (3.31 kW.h/l)
Fuel Consumption: 21.45 Gal/hr (81.19 l/h) at 1895 rpm

Nebraska Tractor Test Lab, "Test 2042: John Deere 9510R" (2012). Nebraska Tractor Tests. 2451. Link to Document
