John Deere 9470RX

Last Updated: July 2024

Overview

The John Deere 9470RX is a high-powered tractor designed for heavy-duty farming tasks. It boasts a 6-cylinder vertical, liquid-cooled, turbocharged diesel engine from John Deere's PSS series, with two turbochargers, an air-to-air aftercooler, and DEF exhaust treatment. The engine has a displacement of 826 cubic inches and produces up to 470 horsepower. It features a selective gear fixed ratio transmission with full range operator-controlled power shift, offering 18 forward gears and 6 reverse gears for precise handling and efficient field operation. The tractor has an unladen weight of 60,050 lbs, ensuring stability on various terrains. Its extended length and width provide a substantial operating platform. The hydraulic system is closed-center and pressure/flow compensated, with detailed performance specifications available from independent testing. With Tier IV emissions compliance, it also takes into account environmental concerns. The 9470RX's track system provides reduced ground pressure, enhancing traction and minimizing soil compaction.

Key Specifications

Power Output: 470

Transmission: Selective gear fixed ratio with full range operator-controlled power shift

Drive Type: 4WD with rubber tracks

Operating Weight: 60050

Fuel Type: Diesel

Image Gallery

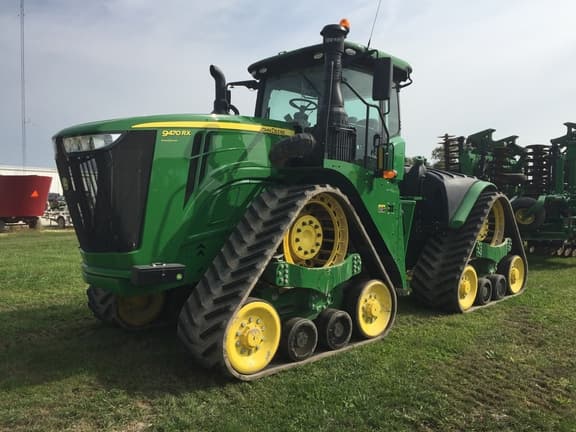

John Deere 9470RX Tractor

Technical Specifications

Engine

Manufacturer: John Deere
Model: PSS
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Two turbochargers, air-to-air aftercooler, and diesel exhaust fluid (DEF) exhaust treatment
Cylinders: 6 (vertical)
Displacement (ci): 826
Bore (in): 5.197
Stroke (in): 6.496
Rated RPM: -
Power Output (hp): 470

Transmission

Type: Selective gear fixed ratio with full range operator-controlled power shift
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 322
Width (in): 117.2
Height (in): 156.6
Operating Weight (lb): 60050

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: 4WD with rubber tracks
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Category 4N/4
Hitch Category: Category 4
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed-center, pressure/flow compensated

Test Results

Nebraska Tractor Test Laboratory - Test Date: November 14 - 28, 2016

Maximum Power and Fuel Consumption

Maximum Power (Rated Engine Speed – PTO Speed 1109 rpm): 312.16 HP (232.78 kW) at 2101 rpm
Fuel Consumption at Rated Engine Speed: 20.24 Gal/hr (76.61 l/h) with a fuel efficiency of 0.454 lb/hp.hr (0.276 kg/kW.h)
DEF Consumption: 0.43 Gal/hr (1.61 l/h)

Drawbar Performance

Power at Rated Engine Speed (7th Gear – Manual Mode): 352.69 HP (263.00 kW) with a drawbar pull of 26188 lbs (116.49 kN) and a speed of 5.05 mph (8.13 km/h)
Fuel Consumption at Rated Speed (7th Gear – Manual Mode): 0.472 lb/hp.hr (0.287 kg/kW.h) with a fuel efficiency of 14.82 Hp.hr/gal (2.92 kW.h/l)

Torque and Engine Performance

Maximum Torque: 1229 lb.-ft. (1666 Nm) at 1550 rpm
Torque Rise: 57.5% with a power increase at 1650 engine rpm of 16.5%

Hydraulic Performance

Maximum Force Exerted Through Whole Range (Category 4N/4): 20965 lbs (93.3 kN)
Pump Delivery Rate (Tandem Pump): 59.7 GPM (225.8 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 88.2 HP (65.7 kW) at a delivery pressure of 2511 psi (173 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.10 Hp.hr/gal (3.37 kW.h/l)
Fuel Consumption at Standard PTO Speed: 20.44 Gal/hr (77.39 l/h) at 1895 rpm

Recommended Citation Format:
NTTL.(2016). Nebraska Tractor test 2170 for John Deere 9470RX Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from http://tractortestlab.unl.edu
