John Deere 9430

Last Updated: June 2024

Overview

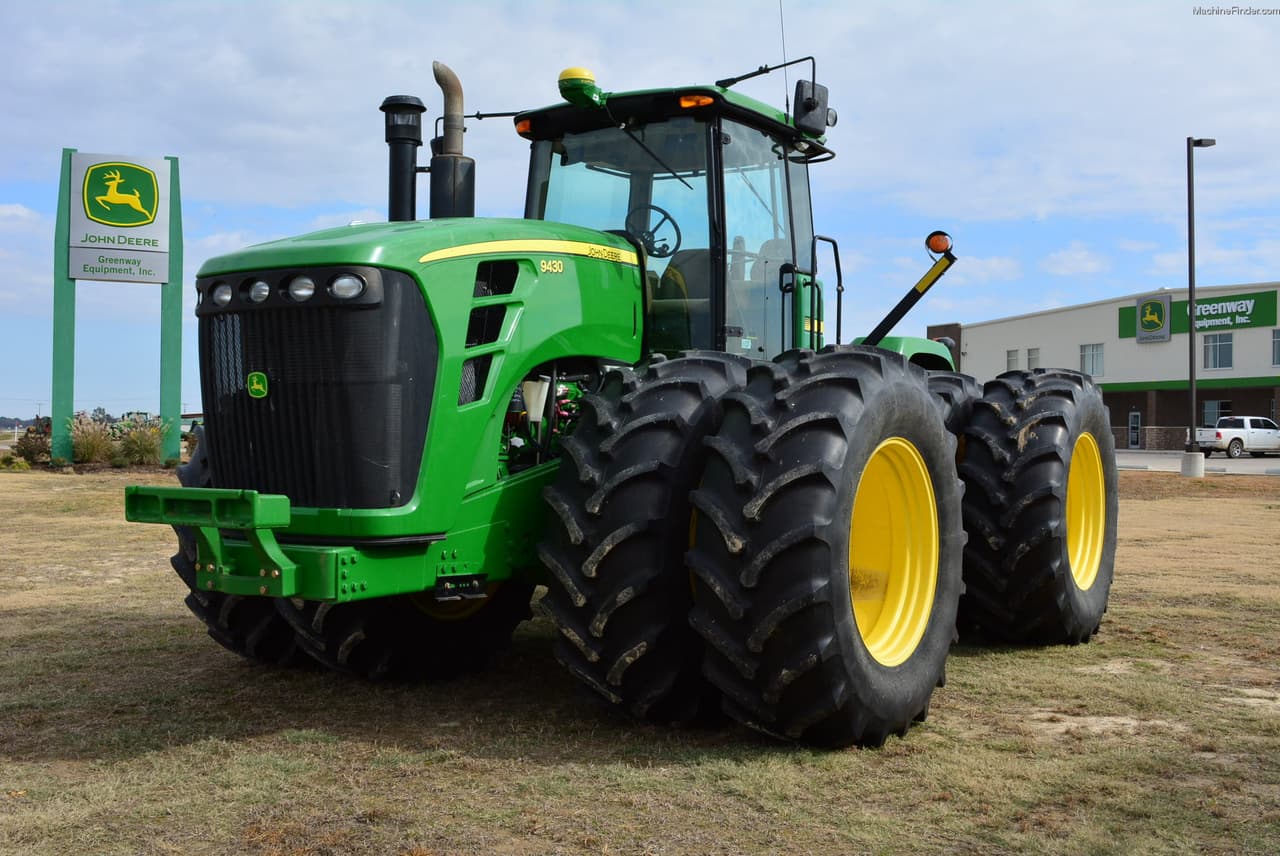

The John Deere 9430 is a robust articulated four-wheel drive tractor, part of the 9030 series, designed for industrial and agricultural applications that demand high horsepower. In production from 2007 to 2011, it was built in Waterloo, Iowa, USA. It features a significant 425 horsepower engine with a displacement of 826.7 cubic inches and functions with a choice between a 24-speed partial power shift or an 18-speed full power shift transmission. Equipped with a spacious CommandView Cab for operator comfort, it offers essential amenities and control systems in a design committed to productivity and ease of use. The 9430 includes an optional independent power take-off (PTO) and a lift capacity of 15,300 pounds, readying it for heavy-duty tasks. This model stands out with its hydrostatic power steering and hydraulic wet disc brakes, ensuring responsive handling and reliable stopping power in demanding environments. With a hefty fuel tank capacity of 350 US gallons, the 9430 can work for extended periods without the need for frequent refueling stops.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 425

Transmission: Partial power shift / Full power shift

Drive Type: 4WD

Operating Weight: 38600

Fuel Type: Diesel

John Deere 9430 vs. Similar Tractors

Power Output
Excellent
Greater than 97% of similar tractors.
Hitch Capacity
Above Average
Greater than 89% of similar tractors.
Operating Weight
Above Average
Greater than 74% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
PowerTech Plus
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
6
Displacement (ci)
826.7
Bore (in)
5.197
Stroke (in)
6.496
Rated RPM
2100
Power Output (hp)
425

Transmission

Type
Partial power shift / Full power shift
Forward Gears
24 / 18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
270
Width (in)
118.6
Height (in)
142 (in)
Operating Weight (lb)
38600

Power Take-Off (PTO)

PTO Type
Independent with electro-hydraulic wet disc clutch (optional)
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
70
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
2011
Hitch Type
-
Hitch Category
IVN/III, IVN/IV
Hitch Position
-
Hitch Capacity (lb)
15300
Operator Station Type
CommandView Cab (standard)
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Closed-center pressure and flow compensating
