John Deere 9420T

Last Updated: June 2024

Overview

The John Deere 9420T is a robust track tractor that features a powerful John Deere 6-cylinder, turbocharged diesel engine with a displacement of 765 cubic inches, producing an impressive 425 horsepower at 2100 RPM. It comes with two transmission options: a full power shift with 18 forward and 6 reverse gears and a partial power shift offering 24 forward and 6 reverse gears. The tractor is equipped with electro-hydraulic power steering and a sophisticated hydraulic system with a flow capacity of 30 gallons per minute and a relief valve pressure of 2900 psi. It has a hefty operating weight of 39,000 pounds and offers a three-point hitch capable of lifting up to 13,871 pounds. The 9420T is designed to tackle tough field conditions and is recognized for its durability and performance on large agricultural operations.

Key Specifications

Category: Crawler

Power Output: 425

Transmission: Full power shift, Partial power shift

Drive Type: Track

Operating Weight: 39,000

Fuel Type: Diesel

Image Gallery

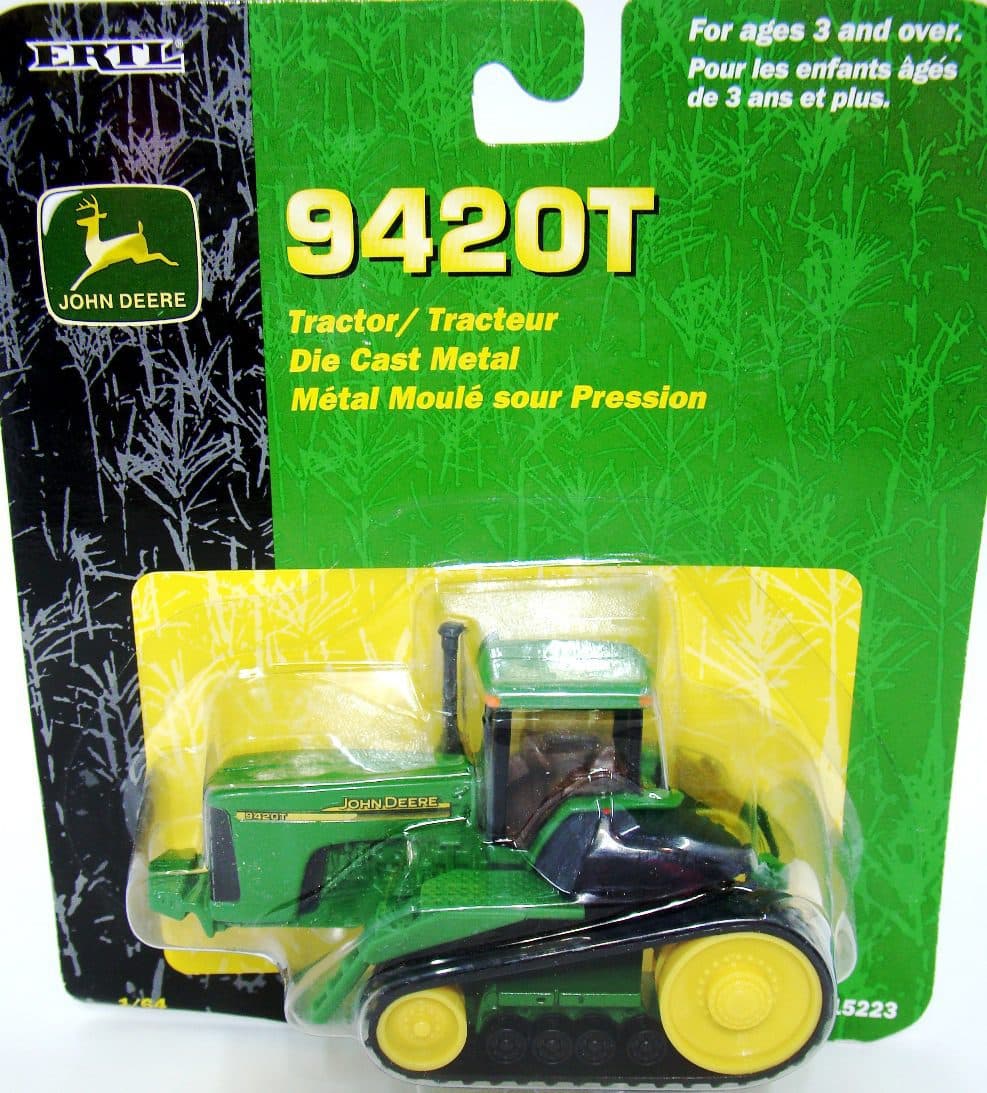

John Deere 9420T Tractor

John Deere 9420T vs. Similar Tractors

Power Output

Average

Greater than 67% of similar tractors.

Hitch Capacity

Poor

Greater than 8% of similar tractors.

Operating Weight

Poor

Greater than 10% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged and air-air aftercooled
Cylinders: 6
Displacement (ci): 765
Bore (in): 5
Stroke (in): 6.5
Rated RPM: 2100
Power Output (hp): 425

Transmission

Type: Full power shift, Partial power shift
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 237
Width (in): 141
Height (in): 138.5 (height to exhaust)
Operating Weight (lb): 39,000

Power Take-Off (PTO)

PTO Type: 1000
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: Track
Drive Type: Track
Steering Type: Electro-hydraulic power
Coolant Capacity (qts): 64
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: Three-Point Hitch
Hitch Category: III, IV/IVN
Hitch Position: Rear
Hitch Capacity (lb): 13,871 lbs
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed center pressure/flow compensated
