John Deere 940

Last Updated: June 2024

Overview

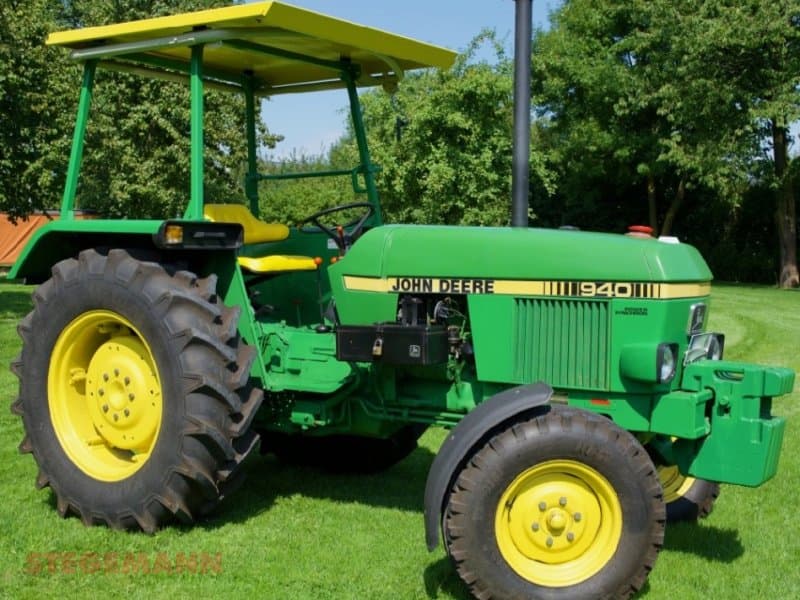

The John Deere 940 is a utility tractor that provides a blend of power and versatility, making it suitable for a variety of tasks around the farm. This model comes with a liquid-cooled diesel engine that produces 42.9 horsepower and has a displacement of 179 cubic inches with a 4.19 inch bore and a 4.33 inch stroke. Operating within a RPM range of 1300 to 2400, this John Deere unit is designed to offer reliable performance. The tractor has a wheelbase of 74.4 inches and an overall length of 138 inches which provides stability in a variety of working conditions. The tractor's weight is listed at 5004 pounds, helping to ensure substantial traction and power transfer. With its power steering and a choice between collar shift transmission and a two-speed power shift, the John Deere 940 offers ease of use and a good level of control over shifting with a total of 16 forward gears and 8 reverse gears.
Show more...

Key Specifications

Category: Utility

Power Output: 42.9

Transmission: Collar shift, Two-speed power shift

Drive Type: 2WD

Operating Weight: 5004

Fuel Type: Diesel

John Deere 940 vs. Similar Tractors

Power Output
Average
Greater than 40% of similar tractors.
Operating Weight
Average
Greater than 43% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
179
Bore (in)
4.19
Stroke (in)
4.33
Rated RPM
2400
Power Output (hp)
42.9

Transmission

Type
Collar shift, Two-speed power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
138
Width (in)
65.4
Height (in)
103.1
Operating Weight (lb)
5004

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
11.1
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Closed center
