John Deere 9370R

Last Updated: July 2024

Overview

The John Deere 9370R is a robust Row Crop tractor designed for extensive farming operations. It has a 4x4 (MFWD) chassis and is powered by a 6-cylinder, 548 cubic inch, turbocharged and intercooled John Deere PSS diesel engine with a 16.0 to 1 compression ratio. The engine produces 370 hp rated power at 2100 rpm, with a maximum torque of 1129 lb-ft at 1599 rpm and a 46.6% torque rise. It uses a 32% aqueous urea DEF solution. The e18 PowerShift transmission has 18 forward and 6 reverse gears. Key dimensions are 314.3 inches length, 176 inches width, and 144.5 inches height. The unladen operating weight is 39,410 lbs. Extensive test data is available on drawbar performance, hydraulics, PTO, gear travel speeds, weight distribution, tire specifications, and sound levels. The hydraulic system can exert up to 21,408 lbs of force.

Key Specifications

Category: Row Crop

Power Output: 370

Transmission: Full Power Shift

Drive Type: Four-wheel Drive (4WD)

Operating Weight: 39410

Fuel Type: Diesel

Image Gallery

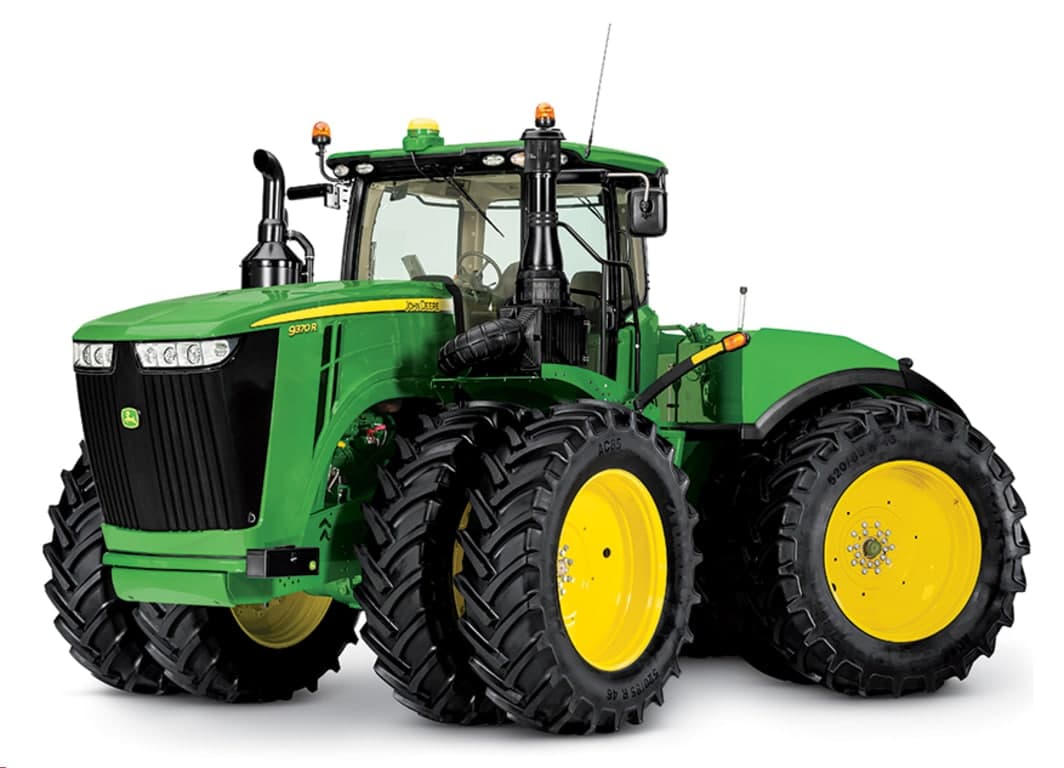

John Deere 9370R Tractor

John Deere 9370R vs. Similar Tractors

Power Output

Excellent

Greater than 92% of similar tractors.

Operating Weight

Above Average

Greater than 81% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PSS
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged and Intercooled
Cylinders: 6
Displacement (ci): 548.0
Bore (in): 4.661
Stroke (in): 5.354
Rated RPM: 2100
Power Output (hp): 370

Transmission

Type: Full Power Shift
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 314.3
Width (in): 176
Height (in): -
Operating Weight (lb): 39410

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 (MFWD)
Drive Type: Four-wheel Drive (4WD)
Steering Type: -
Coolant Capacity (qts): 44.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: IV/IVN Opt
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed-center Pressure/Flow Compensated

Test Results

Nebraska Tractor Test Laboratory - Test Date: March 25 to April 2, 2015

Maximum Power and Fuel Consumption

Rated Engine Speed (PTO speed - 1108 rpm): 307.66 HP (229.42 kW) at 2099 rpm
Fuel Consumption at Rated Speed: 17.33 Gal/hr (65.62 l/h) with a fuel efficiency of 0.396 lb/hp.hr (0.241 kg/kW.h) and 17.75 Hp.hr/gal (3.50 kW.h/l)
Maximum Power (1 hour): 354.60 HP (264.43 kW) at 1800 rpm
DEF Consumption at Maximum Power: 0.46 Gal/hr (1.73 l/h)

Drawbar Performance

Maximum Power in 7th Gear (Manual mode): 292.24 HP (217.92 kW) with a drawbar pull of 22917 lbs (101.94 kN) and a speed of 4.78 mph (7.69 km/h)
Fuel Consumption at Maximum Power (7th Gear): 16.86 Hp.hr/gal (3.32 kW.h/l) with 0.417 lb/hp.hr (0.254 kg/kW.h)

Torque and Engine Performance

Maximum Torque: 1129 lb.-ft. (1531 Nm) at 1599 rpm
Torque Rise: 46.6% with a power increase at 1800 rpm of 15.3%

Hydraulic Performance

Maximum Force Exerted (Category 4N): 21408 lbs (95.2 kN)
Pump Delivery Rate at Minimum Pressure: 60.1 GPM (227.5 l/min) at rated engine speed
Hydraulic Power: 100.2 HP (74.8 kW) at delivery pressure of 2820 psi (194 bar)

Tire, Ballast, and Weight Information

Rear Tires: Four 480/80R46
Front Tires: Four 480/80R46
Unladen Tractor Mass: 39410 lb (17876 kg)

NTTL.(2015).Nebraska OECD Tractor test 2107 for John Deere 9370R Diesel. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2547
