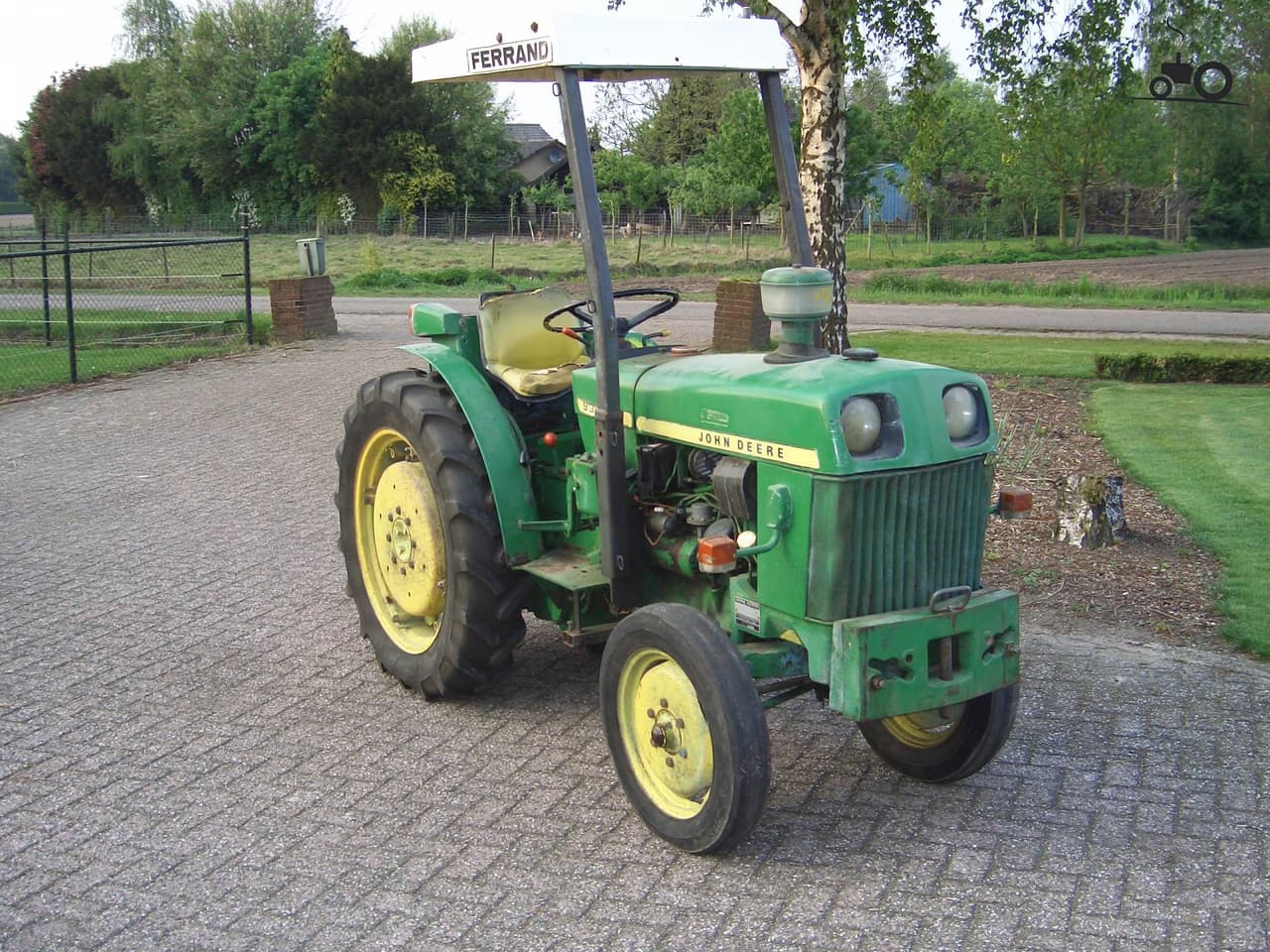

John Deere 930VU

Last Updated: September 2024

Overview

The John Deere 930VU is a compact tractor designed for orchards and vineyards. It's a 2WD model with a manual steering system, making it easy to maneuver in tight spaces. The tractor has a 12-speed transmission with 8 forward and 4 reverse gears, giving farmers good control over their work speed.

Under the hood, the 930VU has a John Deere diesel engine with 3 cylinders. The engine is liquid-cooled and produces 40.2 hp at 2500 rpm, which is enough power for most orchard tasks. It has a below-average engine displacement of 164.5 ci, but its rated rpm is very high compared to other tractors. The tractor's compact size, measuring 97.6 inches long, 38.6 inches wide, and 45.3 inches high at the hood, makes it perfect for working between tree rows. It comes with agricultural tires, a rear-mounted Type I hitch, and an open center hydraulic system for attaching various implements.
Show more...

Key Specifications

Category: Orchard/Vineyard

Power Output: 40 hp (30.0 kW)

Drive Type: 2WD

Fuel Type: Diesel

John Deere 930VU vs. Similar Tractors

Power Output

The Power Output for the John Deere 930VU is Below Average. It is greater than 13% of similar Orchard/Vineyard tractors in our database.

Horsepower distribution of Orchard/Vineyard tractors

(across 0.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the John Deere 930VU is Below Average. It is greater than 22% of similar Orchard/Vineyard tractors in our database.

Engine displacement distribution of Orchard/Vineyard tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the John Deere 930VU is Above Average. It is greater than 83% of similar Orchard/Vineyard tractors in our database.

Engine rated RPM distribution of Orchard/Vineyard tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
John Deere
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Cylinders
3
Displacement
164 ci (2.7 L)
Bore
4.02 in (102.1 mm)
Stroke
4.33 in (110.0 mm)
Rated RPM
2500
Power Output
40 hp (30.0 kW)

Transmission

Forward Gears
8
Reverse Gears
4
Total Gears
12

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
