John Deere 9300T

Last Updated: July 2024

Overview

The John Deere 9300T is a powerful tracked agricultural tractor equipped with a 765 ci (12.5 L) turbocharged and aspirated 6-cylinder diesel engine. At rated speed of 2101 RPM, it delivers 302.73 hp, with a maximum power output of 345.46 hp at 1700 RPM for up to 2 hours. The engine produces a peak torque of 1145 lb-ft at 1102 RPM with a torque rise of 51.5%. The transmission offers 24 forward and 6 reverse gears through a two-range operator-controlled power shift system. Drawbar performance tests recorded a maximum power of 269.06 hp in 8th gear with a drawbar pull of 22,714 lbs. Fuel efficiency ranges from 0.409 lb/hp.hr at rated speed to 15.24 hp.hr/gal at maximum drawbar power. The hydraulic system can exert up to 14,921 lbs of force on Category IV hitch points. With an operating weight of 42,090 lbs and electro-hydraulic steering, this tractor is designed for demanding agricultural applications.

Key Specifications

Power Output: 302.73 @ 2101 RPM (Rated PTO Power), 345.46 @ 1700 RPM (Maximum Power for 2 hours)

Drive Type: Track

Operating Weight: 42090

Fuel Type: No. 2 Diesel

Image Gallery

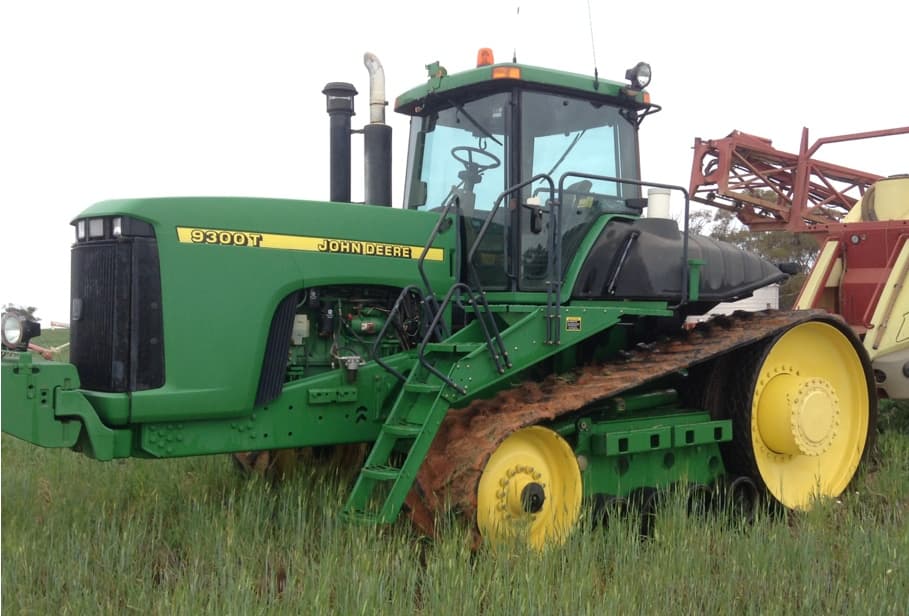

John Deere 9300T Tractor

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid
Cylinder Orientation: Vertical
Valve Configuration: -
Fuel Type: No. 2 Diesel
Induction Type: Turbo, Aspirator
Cylinders: 6
Displacement (ci): 765
Bore (in): 5
Stroke (in): 6.5
Rated RPM: 2101
Power Output (hp): 302.73 @ 2101 RPM (Rated PTO Power), 345.46 @ 1700 RPM (Maximum Power for 2 hours)

Transmission

Type: -
Forward Gears: 24
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 42090

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: Tracked
Drive Type: Track
Steering Type: Electro-hydraulic
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category III and IV
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (based on the starter volts provided)
Brake Type: -
Hydraulic System Type: -

Test Results

Nebraska Tractor Test Laboratory - Test Date: March 22 to April 20, 2001

Maximum Power and Fuel Consumption

Rated Engine Speed: 302.73 HP (225.75 kW) at 2101 rpm
Fuel Consumption at Rated Speed: 17.62 Gal/hr (66.70 l/h) with a fuel efficiency of 0.409 lb/hp.hr (0.249 kg/kW.h)
Maximum Power (2 hours): 345.46 HP (257.61 kW) at 1700 rpm

Drawbar Performance

Maximum Power (8th Gear): 269.06 HP (200.64 kW) with a drawbar pull of 22714 lbs (101.04 kN) and a speed of 4.44 mph (7.15 km/h)
Fuel Consumption at Maximum Power (8th Gear): 0.461 lb/hp.hr (0.280 kg/kW.h) with a fuel efficiency of 15.24 Hp.hr/gal (3.00 kW.h/l)

Torque and Engine Performance

Maximum Torque: 1145 lb.-ft. (1553 Nm) at 1102 rpm
Torque Rise: 51.5% with a power increase at 1700 rpm of 41%

Hydraulic Performance

Maximum Force Exerted: 14921 lbs (66.4 kN) at hitch points (Category IV)
Pump Delivery Rate: 46.1 GPM (174.5 l/min) at minimum pressure and rated engine speed (Two outlet sets combined)
Hydraulic Power: 61.9 HP (46.1 kW) at delivery pressure of 2460 psi (170 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 18.49 Hp.hr/gal (3.64 kW.h/l)
Fuel Consumption: 18.23 Gal/hr (68.99 l/h) at 1895 rpm

Nebraska Tractor Test Lab. (2001). Test 1790: 9300T 24 Speed. Lincoln, NE: University of Nebraska. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/180
