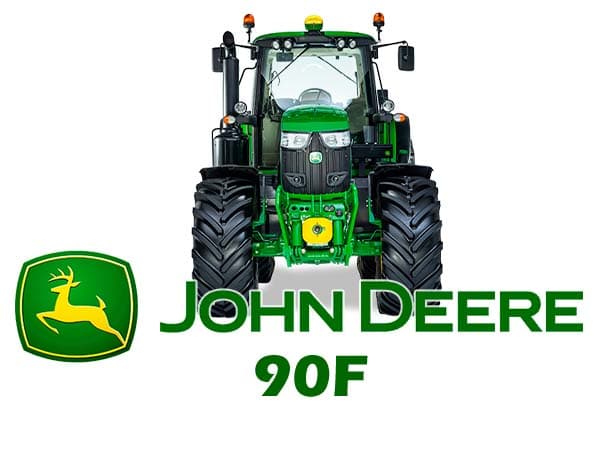

John Deere 90F

Last Updated: June 2024

Overview

The John Deere 90F is an orchard/vineyard tractor known for its 4x4 MFWD 4WD chassis which provides increased traction and stability on varied terrain. It features a powerful John Deere liquid-cooled diesel engine with a displacement of 274.6 cubic inches, producing 82 horsepower at 2500 RPM. The engine is enhanced with a bore and stroke of 4.19 inches by 5.00 inches, respectively. This model boasts a 16-forward and 8-reverse speed transmission, enabling it to tackle a wide range of tasks with precision. The power steering contributes to easy and efficient manoeuvrability. The tractor's operating weight stands at 5908 lbs with a height of 85.9 inches, ensuring a robust presence and utility in the field. In addition, it comes with an electric starter system for convenience and an open-center hydraulic system that supports various attachments and implements.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 82

Drive Type: 4WD

Operating Weight: 5908

Fuel Type: Diesel

John Deere 90F vs. Similar Tractors

Power Output
Average
Greater than 59% of similar tractors.
Operating Weight
Average
Greater than 35% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
274.6
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2500
Power Output (hp)
82

Transmission

Type
-
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
126
Width (in)
-
Height (in)
85.9
Operating Weight (lb)
5908

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
