John Deere 8870

Last Updated: July 2024

Overview

The John Deere 8870 is a robust four-wheel drive tractor designed for the demands of large-scale farming operations. Manufactured by John Deere in Waterloo, Iowa, from 1993 to 1996, it is known for its power and versatility. Powered by a 6-cylinder, 619 cubic inch displacement turbocharged aftercooled diesel engine, it delivers 350 horsepower. The transmission is a Powersync Diesel with 24 forward and 12 reverse gears. The tractor features a Category 3 three-point hitch and hydrostatic power steering for easy maneuvering. Its standard Sound-Gard cab provides a comfortable working environment for long hours in the field. Equipped with hydraulic wet disc brakes and a closed center pressure compensated hydraulic system, this tractor is built to handle heavy lifting and a wide range of attachments. Additional performance data such as fuel consumption, drawbar power, and performance under load are available from the Nebraska Tractor Test Laboratory.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 350

Transmission: Powersync Diesel 12 and 24 Speeds

Drive Type: 4WD

Operating Weight: 35130

Fuel Type: Diesel

Image Gallery

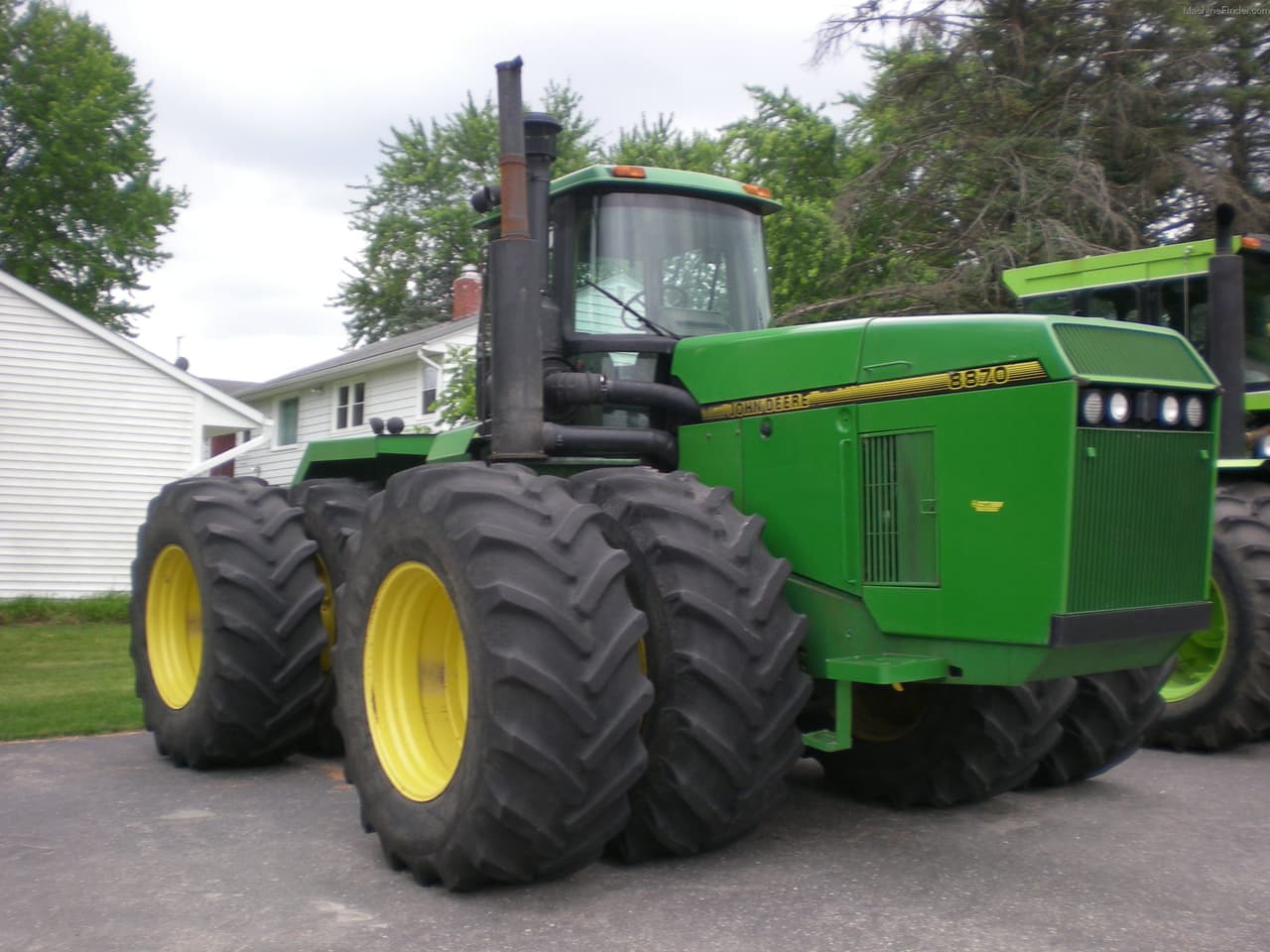

John Deere 8870 Tractor

John Deere 8870 vs. Similar Tractors

Power Output

Excellent

Greater than 95% of similar tractors.

Hitch Capacity

Above Average

Greater than 89% of similar tractors.

Operating Weight

Above Average

Greater than 74% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: liquid-cooled
Cylinder Orientation: inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: turbocharged aftercooled
Cylinders: 6
Displacement (ci): 619
Bore (in): 5.12
Stroke (in): 5
Rated RPM: 2100
Power Output (hp): 350

Transmission

Type: Powersync Diesel 12 and 24 Speeds
Forward Gears: 24
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): 268.9
Width (in): -
Height (in): -
Operating Weight (lb): 35130

Power Take-Off (PTO)

PTO Type: Independent (optional)
PTO Speed 1 (rpm): 1000
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: hydrostatic power
Coolant Capacity (qts): 58
Front Tire Diameter (in): 32
Front Tire Width (in): -
Rear Tire Diameter (in): 32
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1996
Hitch Type: 3-point hitch
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): 14980
Operator Station Type: Sound-Gard cab (standard)
Starter Type: Electric
Brake Type: Hydraulic wet discs
Hydraulic System Type: Closed center pressure compensated
