John Deere 8440

Last Updated: June 2024

Overview

The John Deere 8440 is a large, four-wheel drive tractor that was part of the John Deere Iron Horses series. Produced between 1979 and 1982, it features a 466 cubic inch, six-cylinder turbocharged diesel engine that delivers 215 horsepower at 2100 rpm. This tractor's chassis is an articulated 4WD configuration, enhancing its robustness for heavy-duty applications. The 8440 model comes equipped with a 16-speed partial power shift transmission, hydraulic wet disc brakes, and articulated power steering. It is designed to be compatible with a Category 3 three-point hitch system and has a rear hitch lift capacity of 8545 pounds. Enclosed within a standard cab, the operator is provided with essential comforts for prolonged use. This model's versatility and power make it suitable for a variety of demanding tasks in large-scale agriculture and construction.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 215

Transmission: partial power shift

Drive Type: 4WD

Operating Weight: 26,590

Fuel Type: Diesel

Image Gallery

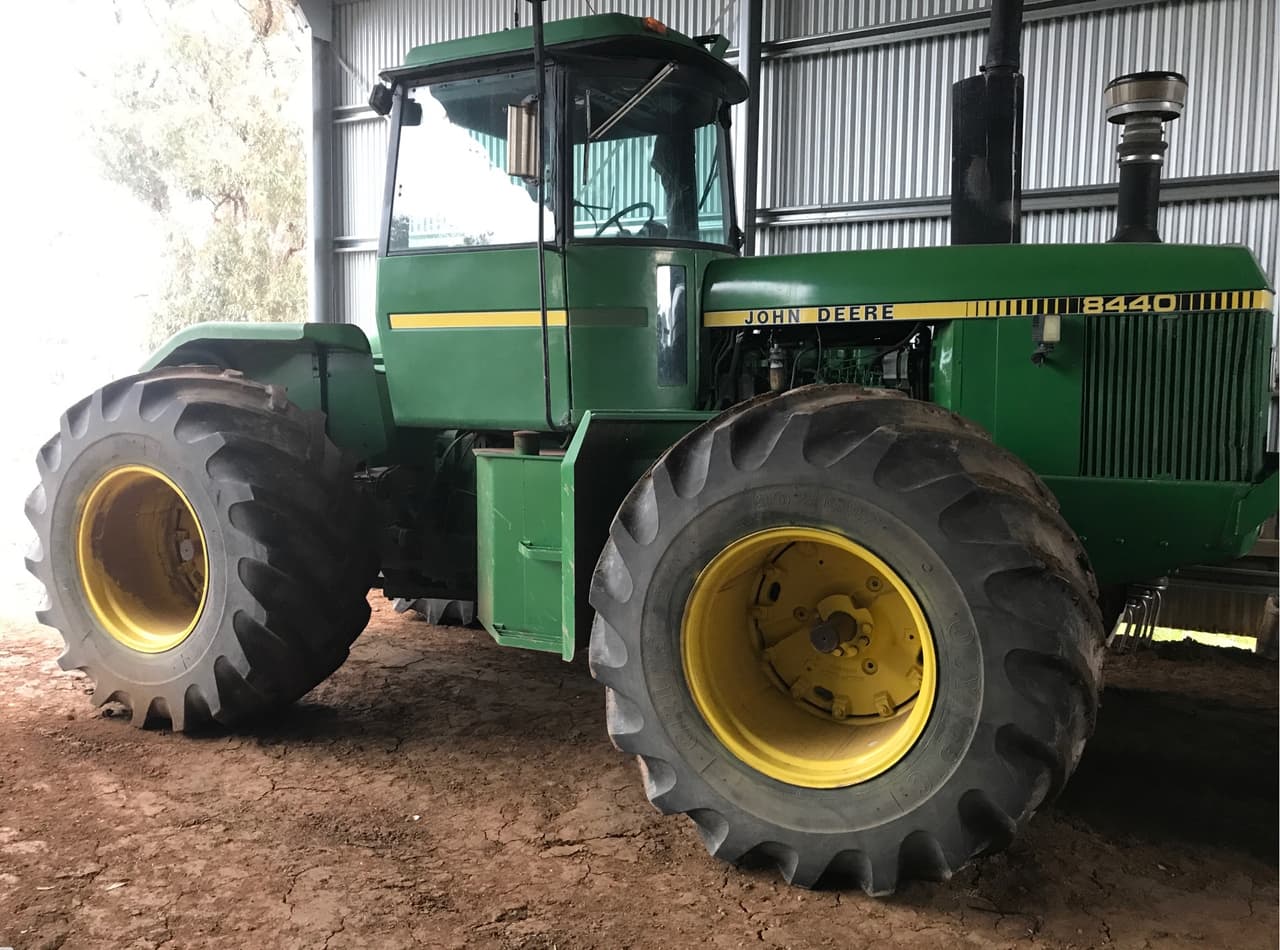

John Deere 8440 Tractor

John Deere 8440 vs. Similar Tractors

Power Output

Excellent

Greater than 92% of similar tractors.

Hitch Capacity

Above Average

Greater than 84% of similar tractors.

Operating Weight

Poor

Greater than 6% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: liquid-cooled
Cylinder Orientation: inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: turbocharged
Cylinders: 6
Displacement (ci): 466
Bore (in): 4.57
Stroke (in): 4.76
Rated RPM: 2100
Power Output (hp): 215

Transmission

Type: partial power shift
Forward Gears: 16
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 223.5
Width (in): -
Height (in): 126.6 (cab)
Operating Weight (lb): 26,590

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 1000
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: articulated power
Coolant Capacity (qts): 40
Front Tire Diameter (in): 34
Front Tire Width (in): -
Rear Tire Diameter (in): 34
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1982
Hitch Type: III
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): 8545 lbs
Operator Station Type: Cab (standard)
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Closed center
