John Deere 8345R

Last Updated: July 2024

Overview

The John Deere 8345R is a powerful row-crop tractor equipped with a 9.0L six-cylinder vertical turbocharged aftercooled diesel engine with DOC, SCR, and DPF producing up to 325.01 hp at 1802 rpm. It features a selective gear fixed ratio transmission with up to 23 forward gears and multiple reverse gears, with a full range operator-controlled power shift. Key performance metrics include a maximum torque of 1101 lb-ft at 1600 rpm, 44.6% torque rise, and 13.8% power increase at 1802 rpm. The hydraulic system delivers 91.3 hp at 2431 psi with a pump flow rate of 64.4 GPM. Fuel efficiency ranges from 16.14 hp-hr/gal at maximum drawbar power to 18.55 hp-hr/gal at standard PTO speed. Other notable specs are the 4WD chassis, hydrostatic power steering, wet disc brakes, and various hitch/PTO options. Detailed performance data under load conditions is now included.

Key Specifications

Category: Row Crop

Power Output: 325.01 hp (maximum power at 1802 rpm)

Transmission: Selective gear fixed ratio with a full range operator-controlled power shift (manual mode)

Drive Type: MFWD 4WD

Operating Weight: 27820 lb (static weight from test results)

Fuel Type: Diesel

Image Gallery

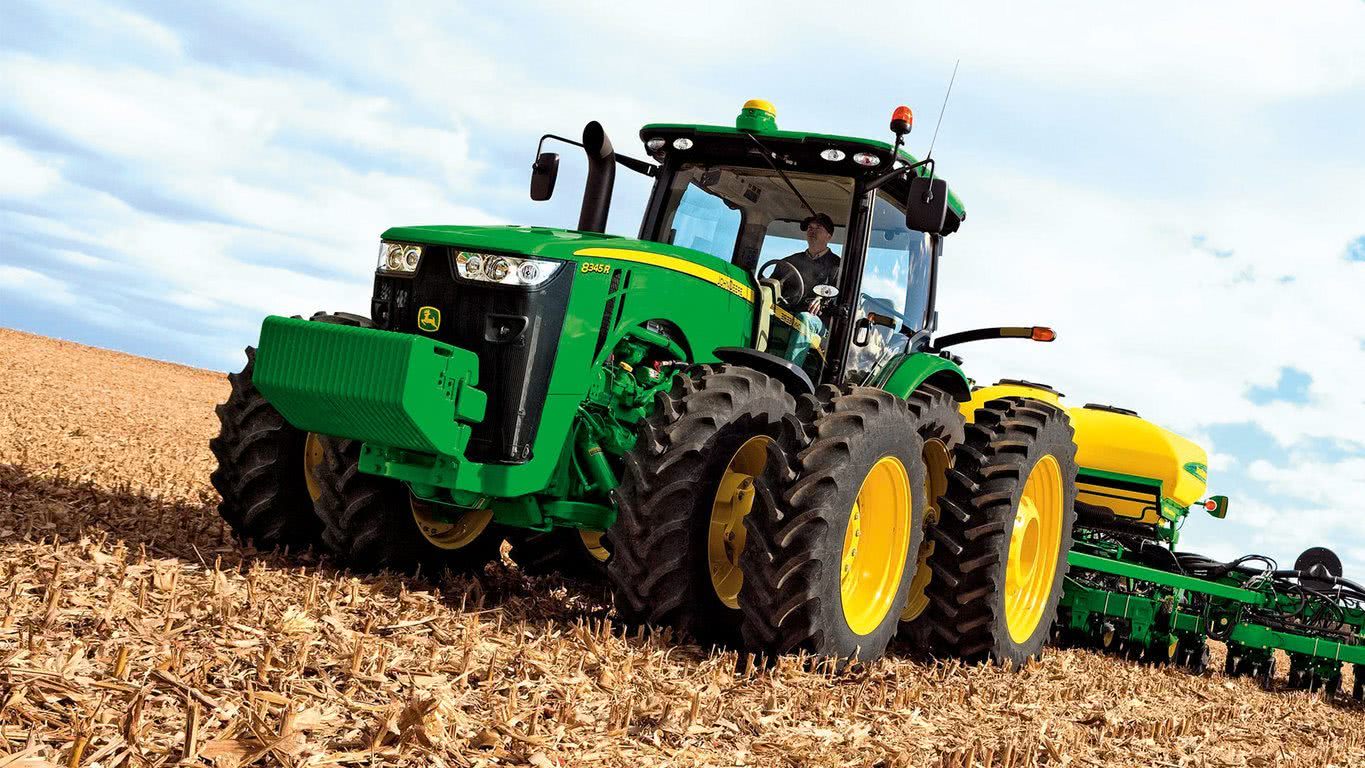

John Deere 8345R Tractor

John Deere 8345R vs. Similar Tractors

Power Output

Excellent

Greater than 91% of similar tractors.

Hitch Capacity

Excellent

Greater than 91% of similar tractors.

Operating Weight

Above Average

Greater than 81% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PowerTech PSS
Cooling Type: Liquid-cooled
Cylinder Orientation: Six-cylinder vertical
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged aftercooled with DOC, SCR, and DPF
Cylinders: 6
Displacement (ci): 548 ci
Bore (in): 4.66
Stroke (in): 5.35
Rated RPM: 2100
Power Output (hp): 325.01 hp (maximum power at 1802 rpm)

Transmission

Type: Selective gear fixed ratio with a full range operator-controlled power shift (manual mode)
Forward Gears: Up to 23 forward gears
Reverse Gears: Multiple reverse gears
Total Gears: -

Dimensions

Length (in): 245
Width (in): 137.3 (with warning lamps)
Height (in): 129.3 (cab)
Operating Weight (lb): 27820 lb (static weight from test results)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 1000 (1.75) or 1000 (1.375)
PTO Speed 2 (rpm): 540/1000 (1.375) (optional)
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 42.3 qts
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag: 380/80R38 front, 480/80R50 rear
Manufacture - End Year: 2010 (based on test results)
Hitch Type: IVN/III
Hitch Category: IVN/III
Hitch Position: -
Hitch Capacity (lb): 29300 lbs @ 24 inches
Operator Station Type: CommandView III cab (standard)
Starter Type: Electric
Brake Type: Wet multiple disc hydraulically operated brakes
Hydraulic System Type: Closed-center load sensing pressure flow compensated

Test Results

Nebraska Tractor Test Laboratory - Test Date: May 11 to June 4, 2010

Maximum Power and Fuel Consumption

Maximum Power (1 hour): 325.01 HP (242.36 kW) at 1802 rpm
Fuel Consumption at Maximum Power: 17.31 Gal/hr (65.54 l/h) with a fuel efficiency of 0.374 lb/hp.hr (0.228 kg/kW.h)
Standard Power Take-off Speed (1000 rpm): 313.52 HP (233.79 kW) at 2000 rpm with a fuel consumption of 16.90 Gal/hr (63.97 l/h)

Drawbar Performance

Maximum Power—5.6 mph (9.0 km/h): 249.74 HP (186.23 kW) with a drawbar pull of 17899 lbs (79.62 kN) and a speed of 5.24 mph (8.42 km/h)
Fuel Consumption at Maximum Power: 0.435 lb/hp.hr (0.265 kg/kW.h) with a fuel efficiency of 16.14 Hp.hr/gal (3.18 kW.h/l)

Torque and Engine Performance

Maximum Torque: 1053 lb.-ft. (1428 Nm) at 1496 rpm
Torque Rise: 47.7%
Power Increase at 1802 rpm: 13.8%

Hydraulic Performance

Maximum Force Exerted: 18326 lbs (81.5 kN)
Pump Delivery Rate at Maximum Hydraulic Power: 64.4 GPM (243.6 l/min)
Hydraulic Power: 91.3 HP (68.1 kW) at delivery pressure of 2431 psi (168 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 18.55 Hp.hr/gal (3.65 kW.h/l)
Fuel Consumption at 1000 rpm: 16.90 Gal/hr (63.97 l/h)

Nebraska Tractor Test Lab. (2010). Test 1972: John Deere 8345R. University of Nebraska-Lincoln. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2386
