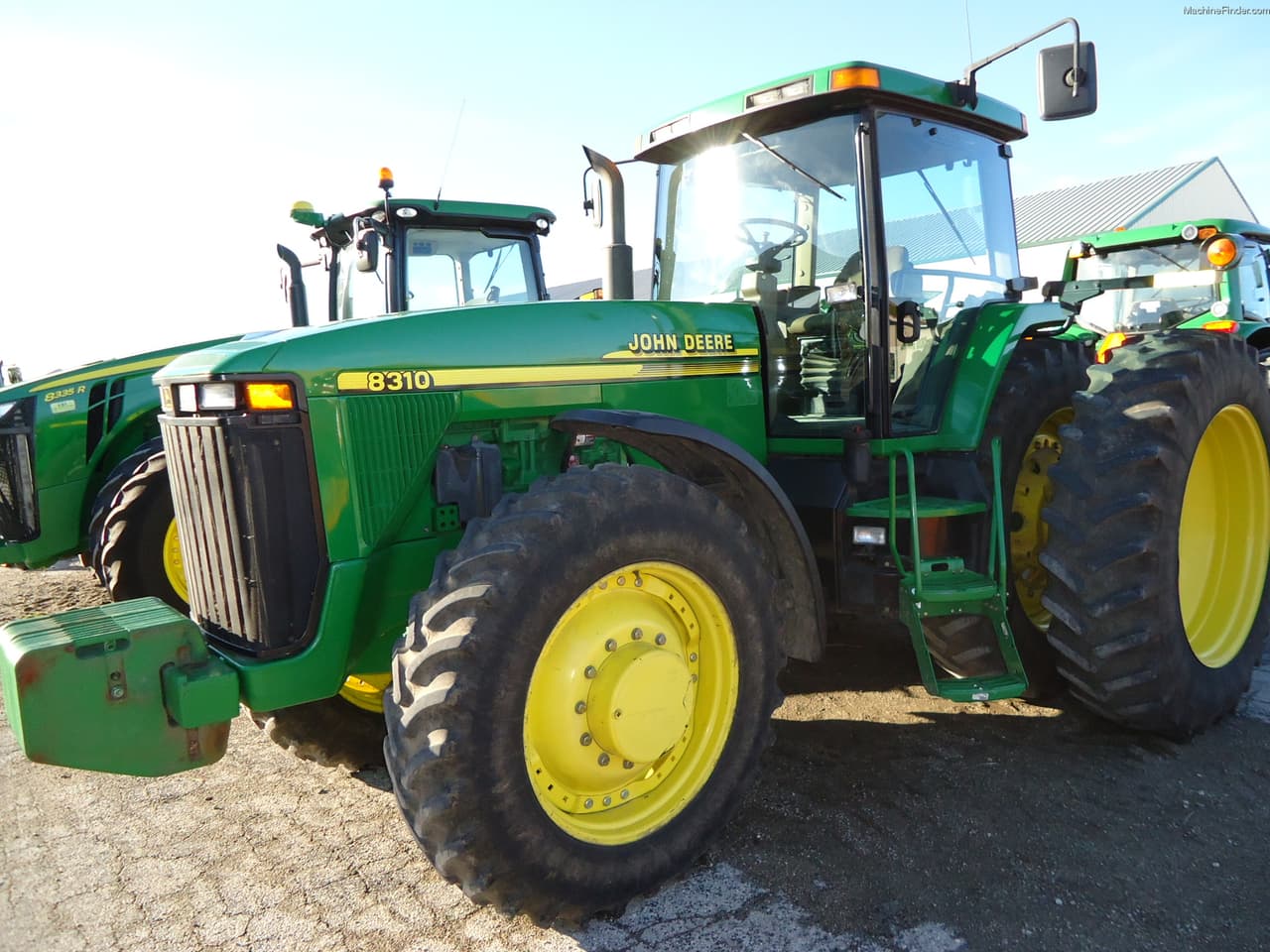

John Deere 8310

Last Updated: June 2024

Overview

The John Deere 8310 is a powerful row-crop tractor designed for various agricultural tasks, featuring a robust 8.1 L, six-cylinder, turbocharged aftercooled diesel engine with a displacement of 496 cubic inches. It maintains an engine rated RPM of 2200 and delivers a gross power output of 227 horsepower. This tractor is equipped with a John Deere PowerShift transmission offering 16 forward and 4 reverse gears, facilitating a variety of operations with different speed requirements. The tractor operates on a two-wheel-drive (2WD) chassis and is classified as a 4x2 2WD. The cooling system has a capacity of 35.9 quarts ensuring that the engine operates effectively within temperature ranges. Additionally, it utilizes a liquid-cooling mechanism to manage engine temperature and ensure optimal performance under demanding conditions. Designed to address the needs of row-crop farming efficiently, the tractor has an operating weight of 18,523 pounds and is supported by a wheelbase of 116.9 inches, providing stability and support for heavy-duty work.
Show more...

Key Specifications

Category: Row Crop

Power Output: 227

Transmission: PowerShift

Drive Type: 2WD

Operating Weight: 18523

Fuel Type: Diesel

John Deere 8310 vs. Similar Tractors

Power Output
Above Average
Greater than 79% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged aftercooled
Cylinders
6
Displacement (ci)
496
Bore (in)
4.56
Stroke (in)
5.06
Rated RPM
2200
Power Output (hp)
227

Transmission

Type
PowerShift
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
18523

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
35.9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (Categories III and IIIN inferred from "Rear Type")
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
Closed center PFC
