John Deere 8200

Last Updated: June 2024

Overview

The John Deere 8200 is a versatile row-crop tractor that was produced between 1995 and 1999 in Waterloo, Iowa, USA. It comes with a choice of either a 2WD or 4WD chassis and is powered by a six-cylinder turbocharged diesel engine with a displacement of 466 cubic inches (7.6 L). With an engine rated at 180 horsepower and a maximum RPM of 2200, this machine delivers strong performance in various farming applications. Equipped with a 16-speed full power shift transmission, the John Deere 8200 provides ample control and efficient operation across a wide range of speeds. The tractor also boasts hydrostatic power steering, a CommandView standard cab, and differential hydraulic wet disc brakes for enhanced convenience and safety. Its rear hitch is of Category 3, capable of lifting up to 10,410 lbs. Furthermore, the tractor is equipped with an independent PTO that offers speeds of 1000 and 540/1000 RPM, catering to various implement needs. The closed center hydraulic system with pressure-flow compensation ensures responsive and precise control. With a length of 206.3 inches and height of 120.1 inches, the John Deere 8200 can navigate through the fields with ease, although its exact width remains unknown.

Key Specifications

Category: Row Crop

Power Output: 180 HP (182.5 PS; 134.2 kW) at 2,200 rpm

Transmission: Full power shift

Operating Weight: 16457 to 18928 pounds

Fuel Type: Diesel

Lift Capacity: 10,410 lbs (4720 kg)

Image Gallery

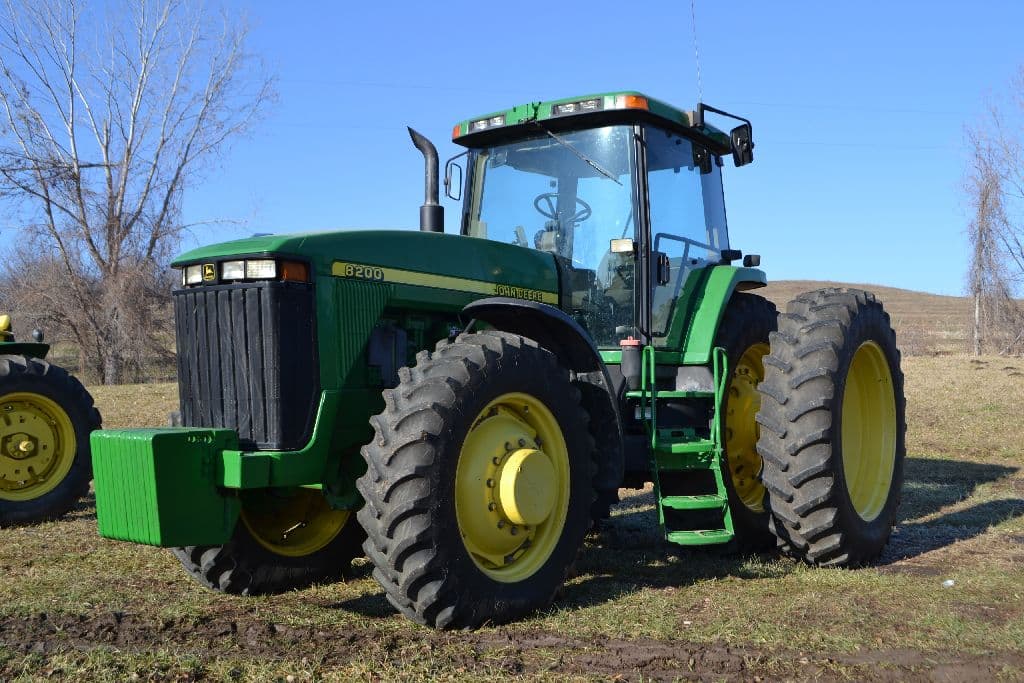

John Deere 8200 Tractor

John Deere 8200 vs. Similar Tractors

Hitch Capacity

Below Average

Greater than 15% of similar tractors.

Operating Weight

Excellent

Greater than 95% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 466 ci (7.6 L)
Bore (in): 4.5625 (116 mm)
Stroke (in): 4.75 (121 mm)
Rated RPM: 2200
Power Output (hp): 180 HP (182.5 PS; 134.2 kW) at 2,200 rpm

Transmission

Type: Full power shift
Forward Gears: 16
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 206.3 (524 cm)
Width (in): -
Height (in): 120.1 (305 cm)
Operating Weight (lb): 16457 to 18928 pounds

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 1000
PTO Speed 2 (rpm): 540/1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: -
Steering Type: Hydrostatic power
Coolant Capacity (qts): 28.8 US. qt (27.3 L)
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1999
Hitch Type: -
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): 10,410 lbs (4720 kg)
Operator Station Type: CommandView Cab (standard)
Starter Type: Electric
Brake Type: Differential hydraulic wet disc
Hydraulic System Type: Closed center pressure-flow compensated (PFC)

Test Results

Nebraska Tractor Test Laboratory - Test Date: April 24 to May 12, 1995

Maximum Power and Fuel Consumption

Maximum Power: 181.71 HP (135.50 kW) at 2199 rpm
Fuel Consumption at Maximum Power: 10.38 Gal/hr (39.3 l/h) with a fuel efficiency of 0.398 lb/hp.hr (0.242 kg/kWh)
Maximum Torque: 626 lb.-ft. (848 Nm) at 1400 rpm

Drawbar Performance

Power at Rated Engine Speed: 181.71 HP (135.50 kW) with a drawbar pull of 10,389 lbs (46.2 kN) and a speed of 2.98 mph (4.8 km/h)
Fuel Consumption at Rated Speed: 0.419 lb/hp.hr (0.255 kg/kWh) with a fuel efficiency of 16.62 Hp.hr/gal (3.27 kWh/l)
Maximum Force Exerted at Hitch Points: 13,622 lbs (60.6 kN)

Hydraulic Performance

Pump Delivery Rate: 30.5 GPM (115.5 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 43.3 HP (32.3 kW) at delivery pressure of 2670 psi (184 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.71 Hp.hr/gal (3.49 kWh/l)
Fuel Consumption: 10.37 Gal/hr (39.3 l/h) at 2200 rpm

Recommended Citation Format

Nebraska Tractor Test Lab. (1995). Test 1689: John Deere 8200 Diesel 16-Speed. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/1998
