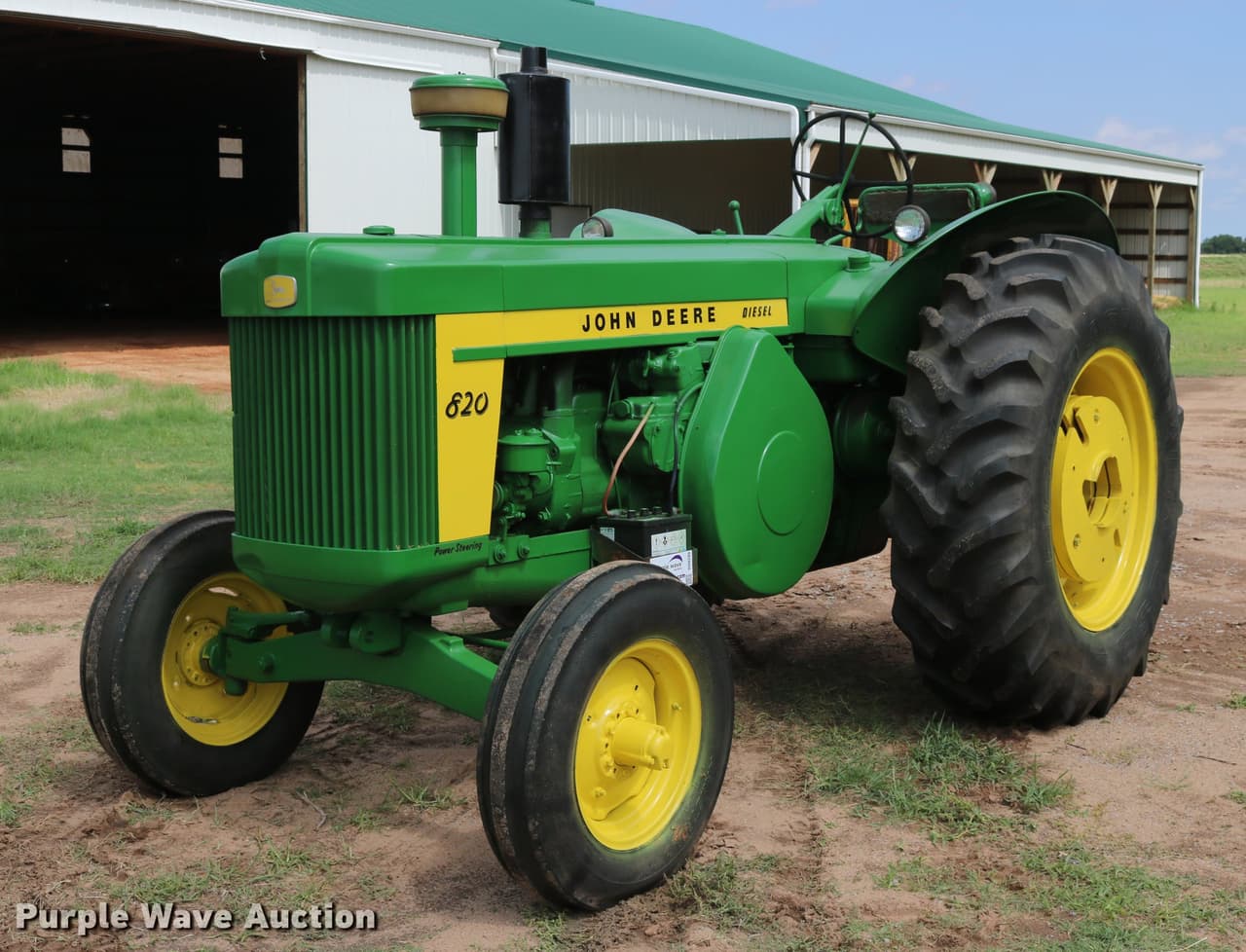

John Deere 820

Last Updated: June 2024

Overview

The John Deere 820 is a durable and robust tractor designed for a variety of tasks. With a liquid-cooled diesel engine, a 3-cylinder setup, and a displacement of 151.9 cubic inches, this tractor is capable of delivering 32 horsepower. It operates at a rated RPM of 2100 and contains an 8-quart coolant capacity. The manual steering system and open operator station reflect the simplicity yet functionality of the machine. The tractor's dimensions, with a length of 142.75 inches, width of 79.5 inches, and height of 81 inches, allow it to operate effectively in various environments. Its operating weight is 8600 pounds, which indicates its solid construction and the ability to handle tough tasks. Despite the considerable data provided, there are missing specifics, which limit a more detailed understanding of this tractor's capabilities. Notably, its efficient open center hydraulic system and the Powr-Trol feature mark its design for effective power management and control.
Show more...

Key Specifications

Power Output: 32

Operating Weight: 8600

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
151.9
Bore (in)
3.858
Stroke (in)
4.33
Rated RPM
2100
Power Output (hp)
32

Transmission

Type
-
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
142.75
Width (in)
79.5
Height (in)
81
Operating Weight (lb)
8600

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Manual
Coolant Capacity (qts)
8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Open Center
