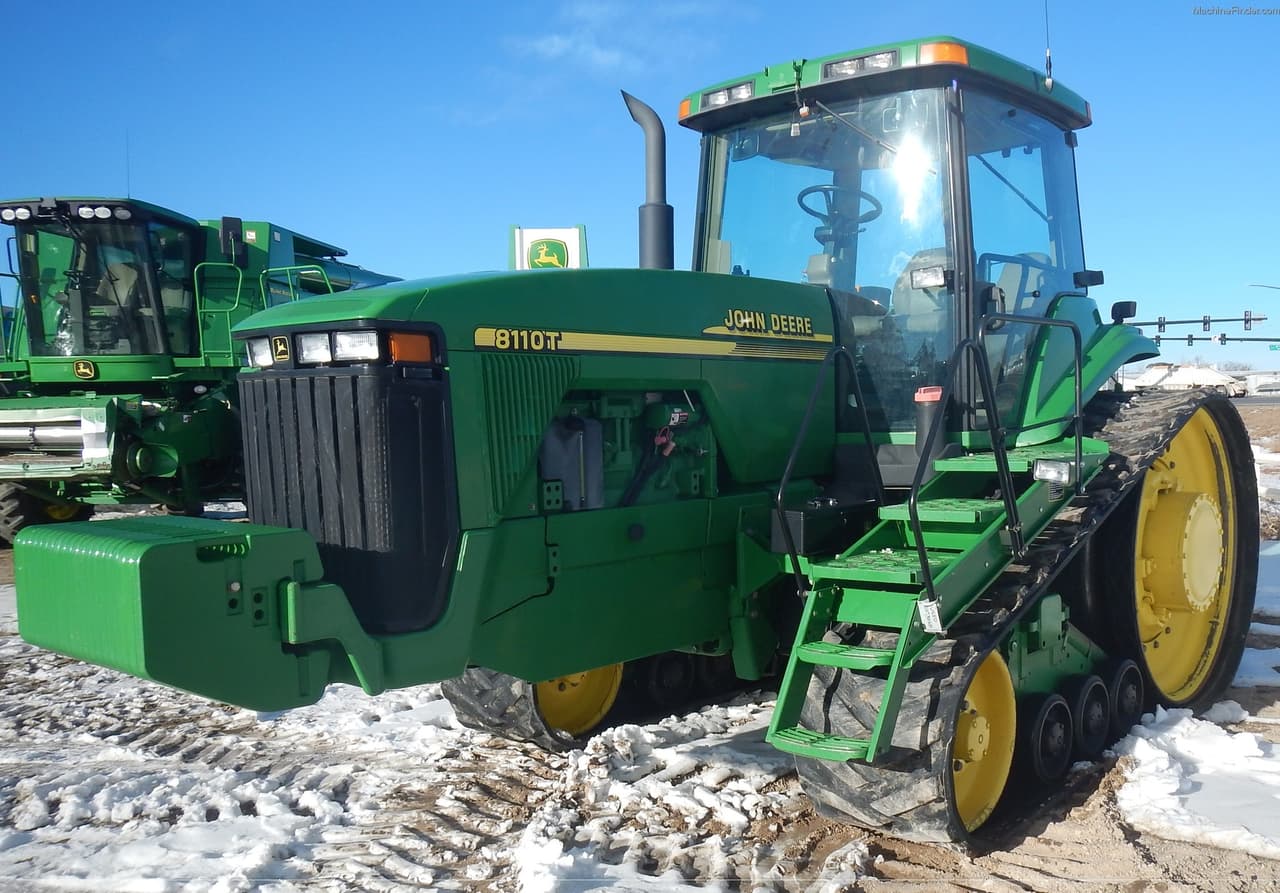

John Deere 8110T

Last Updated: June 2024

Overview

The John Deere 8110T is a tractor designed with a hydrostatic steering system and a full powershift transmission that offers 16 forward and 4 reverse gears. It is powered by a 6-cylinder, John Deere turbocharged aftercooled engine that is liquid-cooled, with a displacement of 496 cubic inches, rated at 183 horsepower, and operates at a rated RPM of 2200. The cooling system's capacity is 35.9 quarts. The tractor's dimensions reveal a length of 207 inches, a minimum width of 103.7 inches, and a height with the cab of 122.9 inches. It has a substantial operating weight of 23,650 lbs. The track-driven nature of the 8110T ensures improved traction and reduces soil compaction, making it suitable for a range of agricultural tasks. The tractor is equipped with a pressure/flow compensated (PFC) hydraulic system and is identifiable by its distinctive III/IIIN rear hitch type. The lack of information on manufacture years suggests that further research is needed to determine the production period of the 8110T.
Show more...

Key Specifications

Power Output: 183

Transmission: Full Powershift

Drive Type: Track

Operating Weight: 23,650

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged aftercooled
Cylinders
6
Displacement (ci)
496
Bore (in)
4.56
Stroke (in)
5.06
Rated RPM
2200
Power Output (hp)
183

Transmission

Type
Full Powershift
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
207
Width (in)
103.7 (minimum)
Height (in)
122.9 (with cab)
Operating Weight (lb)
23,650

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
Track
Steering Type
Hydrostatic
Coolant Capacity (qts)
35.9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
III/IIIN
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
-
Brake Type
-
Hydraulic System Type
Pressure/Flow Compensated (PFC)
