John Deere 8110

Last Updated: June 2024

Overview

The John Deere 8110 is a 2WD/4WD row-crop tractor from the 8000 Ten series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 1999 to 2002. The John Deere 8110 is equipped with an 8.1 L six-cylinder diesel engine and a PowerShift transmission with 16 forward and 4 reverse gears. It has hydrostatic power steering, disc brakes, and standard cab options, making it suitable for various farm and field tasks. With its capable engine producing 164.9 HP and large fuel capacity of 135 US gal, the 8110 can handle demanding workloads with efficiency and comfort for the operator.

Key Specifications

Category: Row Crop

Power Output: 164.9 HP

Transmission: PowerShift

Drive Type: 2WD or 4WD (optional information suggests both are available)

Fuel Type: Diesel

Lift Capacity: 10,400 lbs (Optional: 14,165 lbs)

Image Gallery

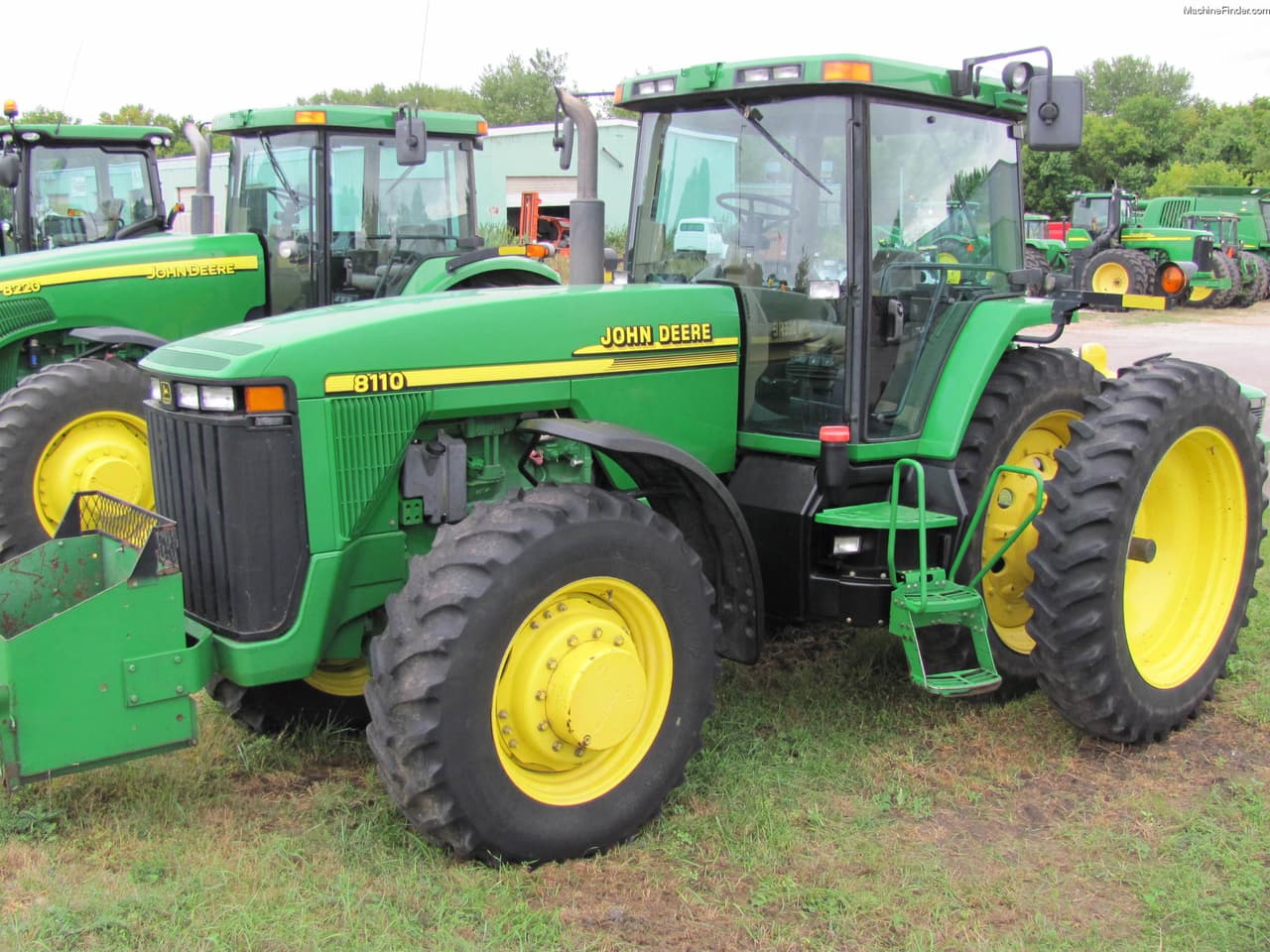

John Deere 8110 Tractor

John Deere 8110 vs. Similar Tractors

Power Output

Average

Greater than 60% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 8.1 L
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged aftercooled
Cylinders: 6
Displacement (ci): 496 ci
Bore (in): 4.57
Stroke (in): 5.08
Rated RPM: 2200
Power Output (hp): 164.9 HP

Transmission

Type: PowerShift
Forward Gears: 16
Reverse Gears: 4
Total Gears: Unknown (forward and reverse gears provided, so total not required)

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 1000 or 540/1000 (optional)
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD or 4WD (optional information suggests both are available)
Steering Type: Hydrostatic power
Coolant Capacity (qts): 35.9 qts
Front Tire Diameter (in): Unknown (provided specification is a tire code, not a diameter)
Front Tire Width (in): Unknown (provided specification is a tire code, not a width)
Rear Tire Diameter (in): Unknown (provided specification is a tire code, not a diameter)
Rear Tire Width (in): Unknown (provided specification is a tire code, not a width)
Front/Rear Rim Diameter (in): Unknown (specific rim diameter not provided)
Tire Type: Ag (Agricultural)
Manufacture - End Year: 2002
Hitch Type: Three-Point Hitch
Hitch Category: III, IIIN
Hitch Position: Rear
Hitch Capacity (lb): 10,400 lbs (Optional: 14,165 lbs)
Operator Station Type: Cab (standard)
Starter Type: Electric
Brake Type: Disc
Hydraulic System Type: Closed center pressure flow compensated (PFC)
