John Deere 7R 270

Last Updated: July 2024

Overview

The John Deere 7R 270, also known as 7270R Diesel or e23 Diesel, is a powerful row-crop tractor. It features a 4x4 MFWD chassis with power steering. The tractor is equipped with a John Deere 6-cylinder, twin turbocharged diesel engine with 414 cubic inch displacement, delivering 270 hp and a rated PTO power of 227.46 hp. The engine has a 16.0:1 compression ratio and produces a maximum torque of 822 lb-ft at 1500 rpm with a 44.3% torque rise. The transmission is a selective gear fixed ratio with a range of power shift, electronically limited. The hydraulic system is closed-center pressure flow compensated, capable of 58.5 GPM flow at 2773 psi. The tractor weighs 24,265 lbs and is fitted with 420/90R30 front tires and 480/80R46 rear tires. Its advanced cooling system includes an engine coolant heat exchanger for crankcase oil and a radiator for hydraulic and transmission oil, with two thermostats and a variable speed fan.

Key Specifications

Category: Row Crop

Power Output: 270

Transmission: Selective gear fixed ratio with a range of power shift (Electronically limited)

Drive Type: 4WD

Fuel Type: diesel

Image Gallery

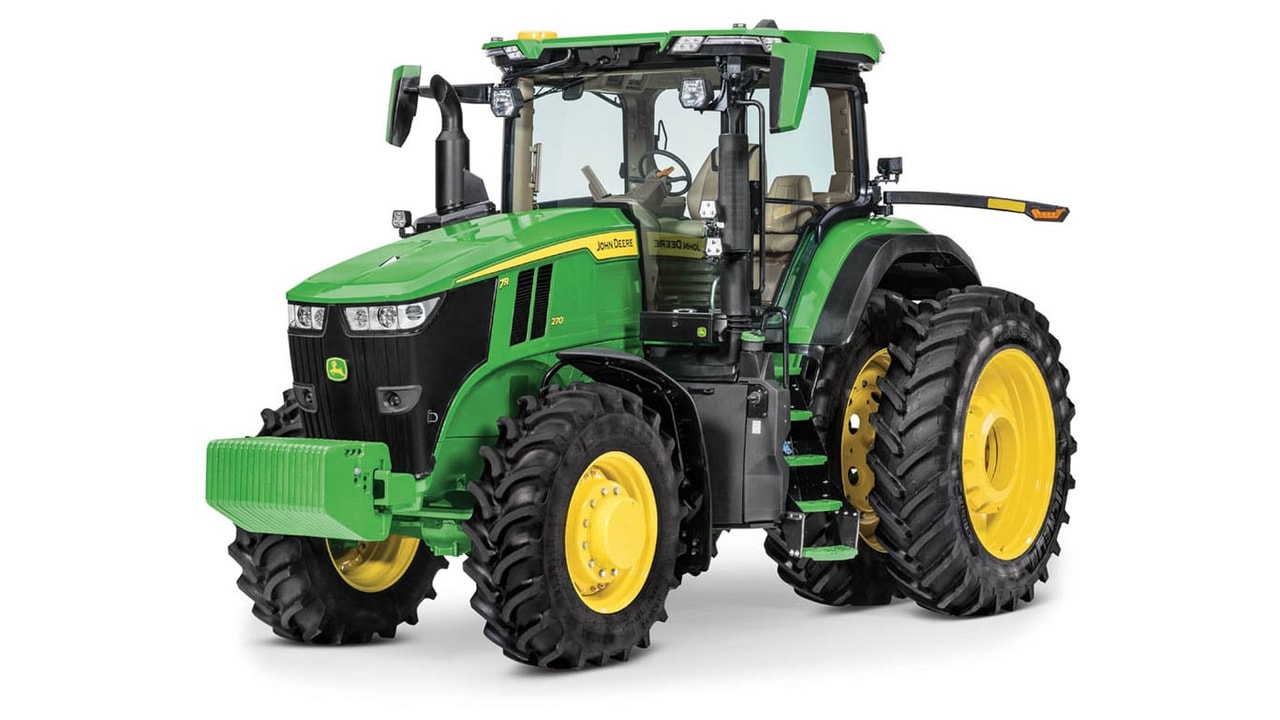

John Deere 7R 270 Tractor

John Deere 7R 270 vs. Similar Tractors

Power Output

Above Average

Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: liquid-cooled with engine coolant heat exchanger for crankcase oil and radiator for hydraulic and transmission oil, two thermostats and variable speed fan
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: twin turbocharged
Cylinders: 6
Displacement (ci): 414
Bore (in): 4.19
Stroke (in): 5
Rated RPM: -
Power Output (hp): 270

Transmission

Type: Selective gear fixed ratio with a range of power shift (Electronically limited)
Forward Gears: 23
Reverse Gears: 11
Total Gears: -

Dimensions

Length (in): 218
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: power
Coolant Capacity (qts): -
Front Tire Diameter (in): 49.7
Front Tire Width (in): -
Rear Tire Diameter (in): 63.3
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: standard (ag)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: III/IIIN
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: electric
Brake Type: -
Hydraulic System Type: closed-center pressure flow compensated

Test Results

Nebraska Tractor Test Laboratory - Test Date: April 18-23, 2014

Maximum Power and Fuel Consumption

Rated Engine Speed (PTO speed—1077 rpm): 227.46 HP (169.62 kW) at 2100 rpm
Fuel Consumption at Rated Engine Speed: 13.25 Gal/hr (50.17 l/h) with a fuel efficiency of 0.408 lb/hp.hr (0.248 kg/kW.h)
DEF Consumption at Rated Engine Speed: 0.40 Gal/hr (1.52 l/h)

Drawbar Performance

Power at Rated Engine Speed (9th Gear): 203.00 HP (151.38 kW) with a drawbar pull of 17921 lbs (79.72 kN) and a speed of 4.25 mph (6.84 km/h)
Fuel Consumption at Rated Speed: 0.455 lb/hp.hr (0.277 kg/kW.h) with a fuel efficiency of 15.39 Hp.hr/gal (3.03 kW.h/l)

Torque and Engine Performance

Maximum Torque: 822 lb.-ft. (1114 Nm) at 1500 rpm
Torque Rise: 44.3% with a power increase at 1800 rpm of 12.5%

Hydraulic Performance

Maximum Force Exerted: 18302 lbs (81.4 kN) at hitch points
Pump Delivery Rate: 58.5 GPM (221.4 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 94.3 HP (70.3 kW) at delivery pressure of 2773 psi (191 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.40 Hp.hr/gal (3.43 kW.h/l)
Fuel Consumption: 14.22 Gal/hr (53.84 l/h) at 1950 rpm

NTTL.(2021). Nebraska OECD tractor test 2084A for John Deere 7R 270 e23 Diesel. Lincoln, NE:Nebraska Tractor Test Laboratory. Retrieved from http://tractortestlab.unl.edu
