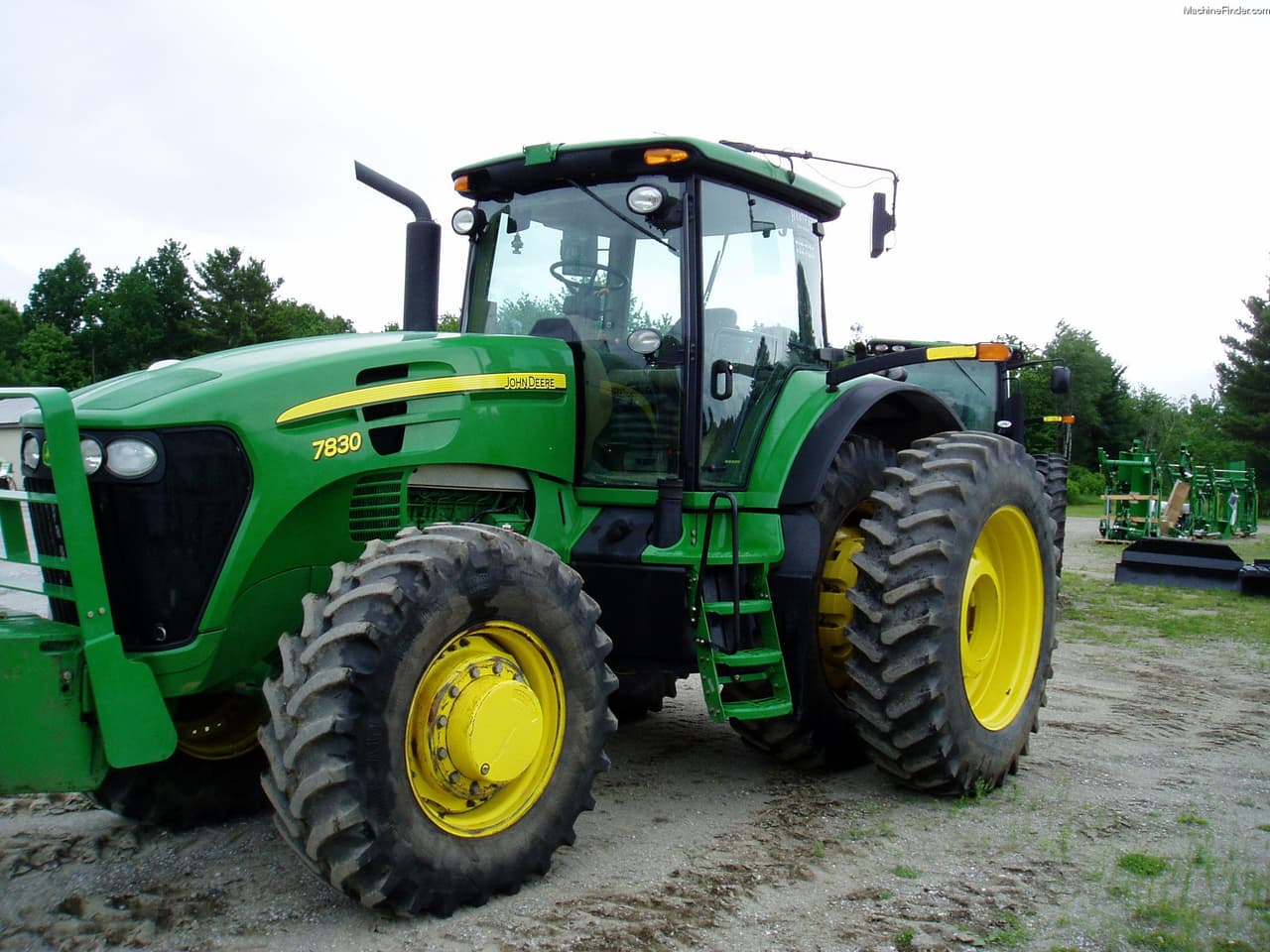

John Deere 7830

Last Updated: June 2024

Overview

The John Deere 7830 is a utility tractor known for its robust design and proficient power delivery. Equipped with a six-cylinder John Deere 2240 engine with a displacement of 415 cubic inches, this tractor can deliver a gross power output of 205 horsepower at 2100 rpm and a PTO power of approximately 166.9 horsepower. The engine features a turbocharged induction system that ensures efficient air intake for maximum combustion efficiency. It has an impressive torque of 608 lbs/ft measured at 1598 rpm. The innovative PowrQuad Plus transmission provides 16 forward and reverse gears, allowing for a wide range of speed adjustments tailor-fit for various agricultural tasks. This model includes a standard three-point hitch system with a notable lift capacity of 10,985.7 pounds, which speaks to its capabilities in handling a variety of implements with relative ease. The tractor rolls on front 11.00-16 (F2) type tires and rear 480/80R46 (R1) type tires, denoting it is designed for a variety of terrains. A large fuel tank with a capacity of 103.1 gallons permits extended operation hours without the need for frequent refueling. The John Deere 7830 is a trusted workhorse suitable for a variety of agricultural operations.
Show more...

Key Specifications

Category: Utility

Power Output: 205

Transmission: PowrQuad Plus

Lift Capacity: 10985.7 lbs

John Deere 7830 vs. Similar Tractors

Power Output
Excellent
Greater than 92% of similar tractors.
Hitch Capacity
Above Average
Greater than 86% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
2240
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
turbocharged
Cylinders
6
Displacement (ci)
415
Bore (in)
-
Stroke (in)
-
Rated RPM
2100
Power Output (hp)
205

Transmission

Type
PowrQuad Plus
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
F2 front, R1 rear
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
10985.7 lbs
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
