John Deere 7730

Last Updated: June 2024

Overview

The John Deere 7730 is a large row-crop tractor that offers substantial power and versatility. It features an intercooled turbocharged diesel engine with an impressive 190 horsepower and a torque of 564 lb-ft, suitable for heavy-duty farming tasks. The liquid-cooling system and the high-pressure common rail fuel system ensure the engine operates efficiently. The tractor's chassis is available in either 2WD or 4WD, and it can be equipped with three different transmission options, including an Infinitely Variable Transmission (IVT) for adaptable speed control. With a standard cab equipped with air conditioning, operations can be conducted in comfort, and with the various transmission options, tasks can be tailor-made to the farm's needs. The 7730 model, manufactured between 2007 and 2011 in Waterloo, Iowa, stands out as a capable machine for a variety of agricultural applications.

Key Specifications

Category: Row Crop

Power Output: 190 hp

Transmission: Partial power shift or Infinitely Variable Transmission (IVT)

Drive Type: 2WD or 4WD

Operating Weight: 17,125 lbs (4WD AutoQuad)

Fuel Type: Diesel

Image Gallery

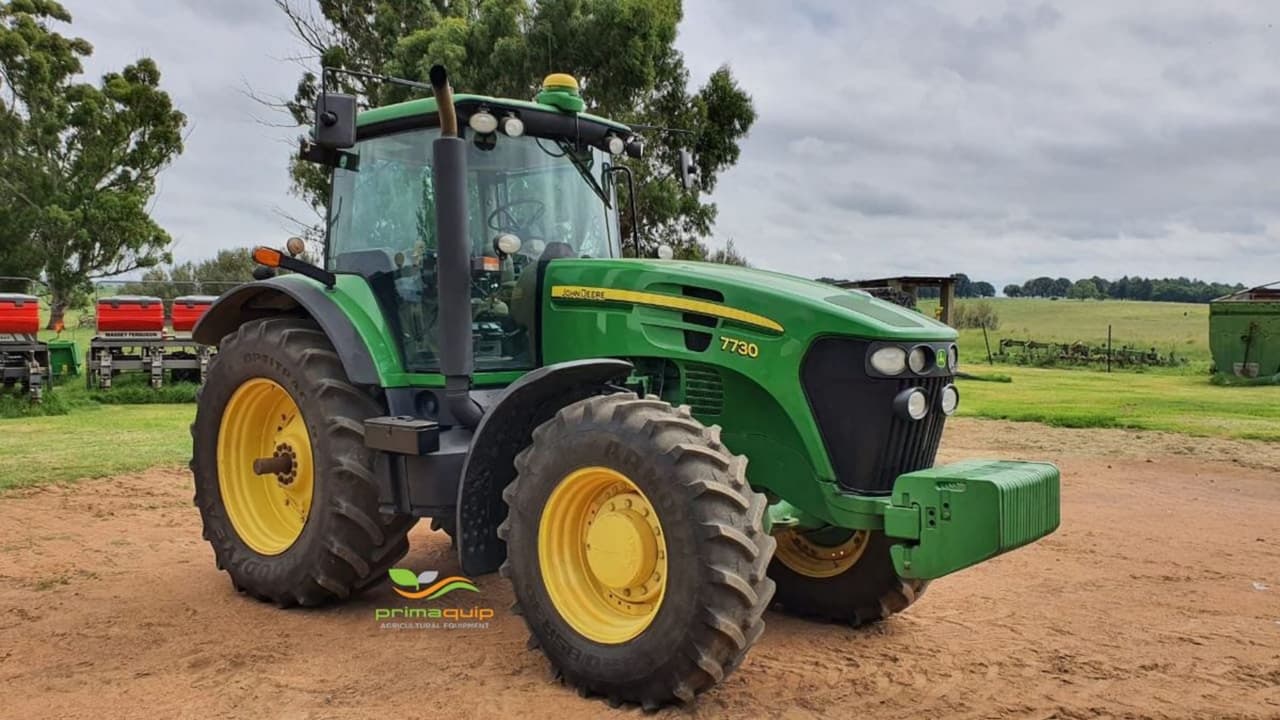

John Deere 7730 Tractor

John Deere 7730 vs. Similar Tractors

Power Output

Above Average

Greater than 70% of similar tractors.

Operating Weight

Below Average

Greater than 10% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged and intercooled
Cylinders: 6
Displacement (ci): 414 ci
Bore (in): 4.17 in
Stroke (in): 5 in
Rated RPM: 2100
Power Output (hp): 190 hp

Transmission

Type: Partial power shift or Infinitely Variable Transmission (IVT)
Forward Gears: -
Reverse Gears: -
Total Gears: 16 forward and reverse (PowrQuad PLUS), 20 forward and reverse (AutoQuad PLUS), infinite (IVT)

Dimensions

Length (in): 224.8 in
Width (in): 95.7 in
Height (in): 120.9 in (cab)
Operating Weight (lb): 17,125 lbs (4WD AutoQuad)

Power Take-Off (PTO)

PTO Type: Independent with hydraulic wet disc clutch
PTO Speed 1 (rpm): 540 rpm
PTO Speed 2 (rpm): 1000 rpm
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD or 4WD
Steering Type: Power
Coolant Capacity (qts): 27.5 qts
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2011
Hitch Type: -
Hitch Category: III
Hitch Position: Rear
Hitch Capacity (lb): 10,050 lbs to 14,000 lbs
Operator Station Type: Cab (standard) with air-conditioning
Starter Type: Electric
Brake Type: Hydraulic wet disc
Hydraulic System Type: Closed center load-sensing
