John Deere 7715

Last Updated: June 2024

Overview

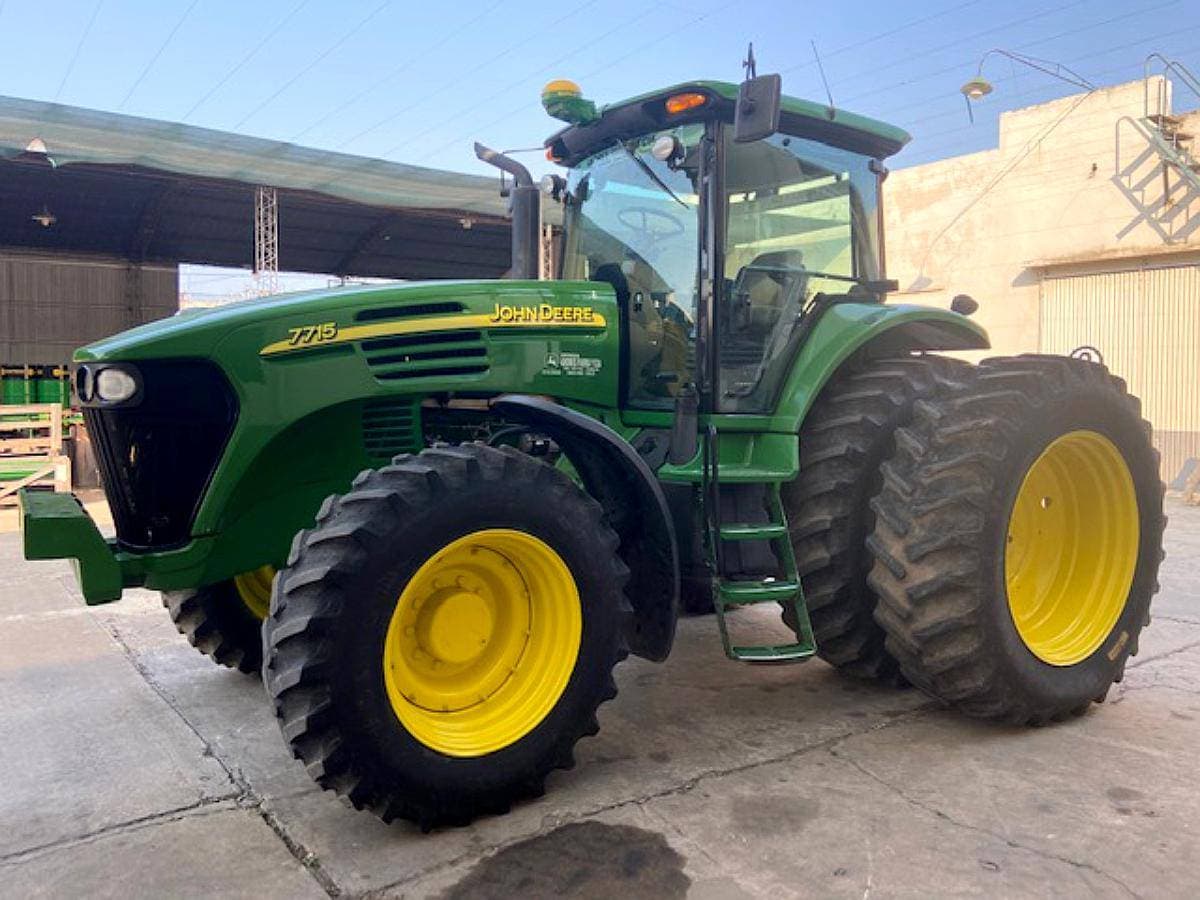

The John Deere 7715 is a robust row-crop tractor that brings together power, durability, and advanced technology, tailored to meet the needs of modern farming operations. At its heart lies a John Deere six-cylinder, 414 cubic inches (6.8 L) diesel engine, which delivers a strong 182 horsepower. It features a liquid-cooling system that allows for efficient thermal regulation during long working hours. The drivetrain is built around a 16-speed partial power shift transmission, offering flexibility in a variety of agricultural tasks. This tractor has a chassis of 4x4 MFWD (mechanical front wheel drive), which is suited for varied terrain, paired with hydrostatic power steering to enhance maneuverability. The 7715 weighs 17,860 lbs and boasts a three-point hitch system, with a standard tire configuration of 16.9-30 in the front and 20.8-42 in the rear, with optional rear tires available in 20.8R42 size. Dimensions place its length at 212.4 inches, width at 96 inches, and height with the cab at 123.3 inches. This model provides a comfortable cab for the operator and features a closed-center load-sensing hydraulic system.
Show more...

Key Specifications

Category: Row Crop

Power Output: 182

Transmission: Partial power shift

Drive Type: 4WD

Operating Weight: 17,860

Fuel Type: Diesel

John Deere 7715 vs. Similar Tractors

Power Output
Average
Greater than 67% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
414
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
182

Transmission

Type
Partial power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
212.4
Width (in)
96
Height (in)
123.3
Operating Weight (lb)
17,860

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
30.9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag): Front: 16.9-30. Rear: 20.8-42, Optional tires (ag): Front: 16.9-30. Rear: 20.8R42
Manufacture - End Year
-
Hitch Type
3/3N (assumes Three-Point Hitch)
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric Starter (assumes based on engine starter volts)
Brake Type
-
Hydraulic System Type
Closed center load sensing
