John Deere 7700

Last Updated: July 2024

Overview

The John Deere 7700 is a versatile row-crop tractor that was manufactured by John Deere from 1993 to 1996. This model can be found with either a 2-wheel drive or 4-wheel drive configuration and features a robust 7.6-liter 6-cylinder turbocharged diesel engine that produces 150 horsepower at 2100 RPM. The tractor is equipped with a 16-speed partial power shift transmission and has differential hydraulic wet disc brakes for reliable stopping power. Additional amenities include a ComfortGard cab with standard air-conditioning, making it comfortable for long hours of operation. The tractor has a shipping weight ranging from 13,870 to 15,505 pounds and supports a three-point hitch with lift capabilities between 8,930 and 10,050 pounds. It provides PTO speeds of 540 and 1000 rpm, making it adaptable to various implements.

Key Specifications

Category: Row Crop

Power Output: 150 hp

Transmission: Partial Power Shift

Drive Type: 2WD or 4WD

Operating Weight: 13870 to 15505

Fuel Type: Diesel

Image Gallery

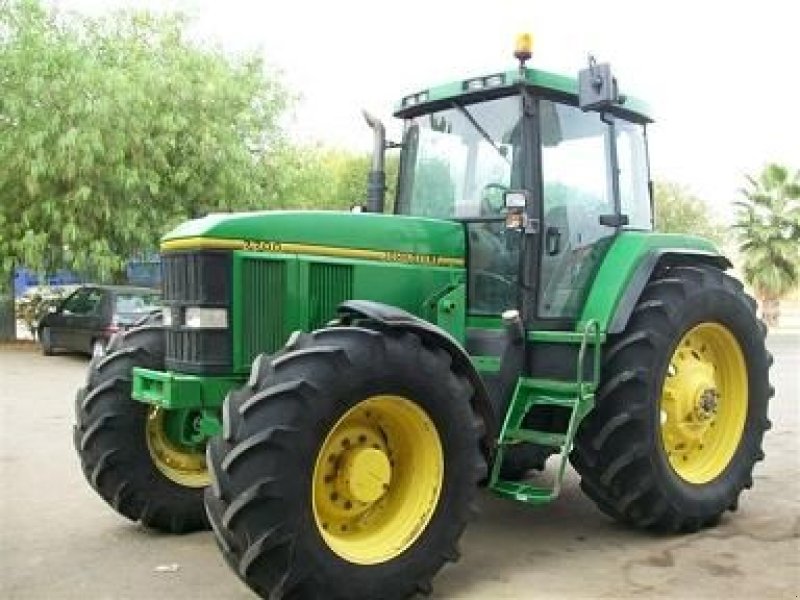

John Deere 7700 Tractor

John Deere 7700 vs. Similar Tractors

Power Output

Average

Greater than 54% of similar tractors.

Operating Weight

Excellent

Greater than 94% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: John Deere
Cooling Type: Liquid
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 466 ci
Bore (in): 4.57
Stroke (in): 4.76
Rated RPM: 2100
Power Output (hp): 150 hp

Transmission

Type: Partial Power Shift
Forward Gears: 16
Reverse Gears: 12 or 7
Total Gears: -

Dimensions

Length (in): 187.2
Width (in): -
Height (in): 118.4
Operating Weight (lb): 13870 to 15505

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540/1000
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD or 4WD
Steering Type: Power
Coolant Capacity (qts): 26.5
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1996
Hitch Type: Three-point hitch
Hitch Category: IIIN/II
Hitch Position: -
Hitch Capacity (lb): 8,930 to 10,050 lbs
Operator Station Type: ComfortGard cab (standard) with air-conditioning
Starter Type: Electric
Brake Type: Differential hydraulic wet disc
Hydraulic System Type: Open center
