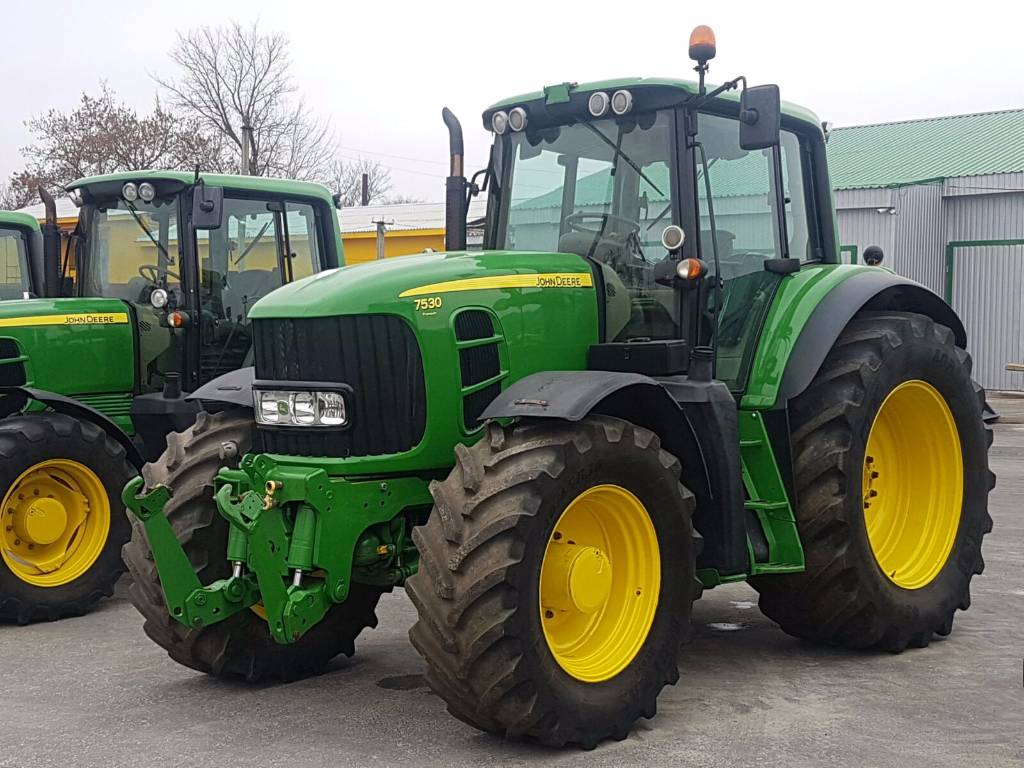

John Deere 7530 Premium

Last Updated: June 2024

Overview

The John Deere 7530 Premium is a 4WD row-crop tractor that offers versatility and durability for a range of agricultural applications. Manufactured by John Deere in Waterloo, Iowa, USA, and in Mannheim, Baden-Württemberg, Germany, this model boasts a powerful six-cylinder, turbocharged and intercooled diesel engine with a liquid cooling system to maintain consistent performance under various operating conditions. The tractor's operating weight stands at a substantial 14,600 pounds, supporting an efficient power output of 180 hp. The John Deere 7530 Premium includes a range of transmission options, from partial power shift to infinitely variable transmission (IVT), accommodating different user preferences and task complexities. It features a hydrostatic power steering system, hydro wet disc brakes for responsive handling, and a ComfordGard cab designed to enhance operator comfort. The hydraulic system is closed center and pressure-flow compensated, ensuring precise control over attachments. The tractor is compatible with a Category III three-point hitch with an ample lift capacity for heavy implements.
Show more...

Key Specifications

Category: Row Crop

Power Output: 180

Transmission: Partial power shift / Infinitely variable transmission (IVT)

Drive Type: 4WD

Operating Weight: 14600

Fuel Type: Diesel

John Deere 7530 Premium vs. Similar Tractors

Power Output
Average
Greater than 67% of similar tractors.
Hitch Capacity
Below Average
Greater than 16% of similar tractors.
Operating Weight
Average
Greater than 59% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068HRW77
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
414.4
Bore (in)
4.17
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
180

Transmission

Type
Partial power shift / Infinitely variable transmission (IVT)
Forward Gears
16 / 20 / Infinite (based on transmission type)
Reverse Gears
16 / 20 / Infinite (based on transmission type)
Total Gears
-

Dimensions

Length (in)
188.9
Width (in)
-
Height (in)
119.9
Operating Weight (lb)
14600

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540/1000
PTO Speed 2 (rpm)
540E (optional)
PTO Speed 3 (rpm)
1000E (optional)

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
37.6
Front Tire Diameter (in)
28
Front Tire Width (in)
-
Rear Tire Diameter (in)
42
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2011
Hitch Type
Three-Point Hitch
Hitch Category
III
Hitch Position
Rear
Hitch Capacity (lb)
10,606 lbs (at 24 in)
Operator Station Type
ComfordGard cab standard
Starter Type
Electric
Brake Type
Differential hydraulic wet disc
Hydraulic System Type
Closed center, pressure and flow compensated
