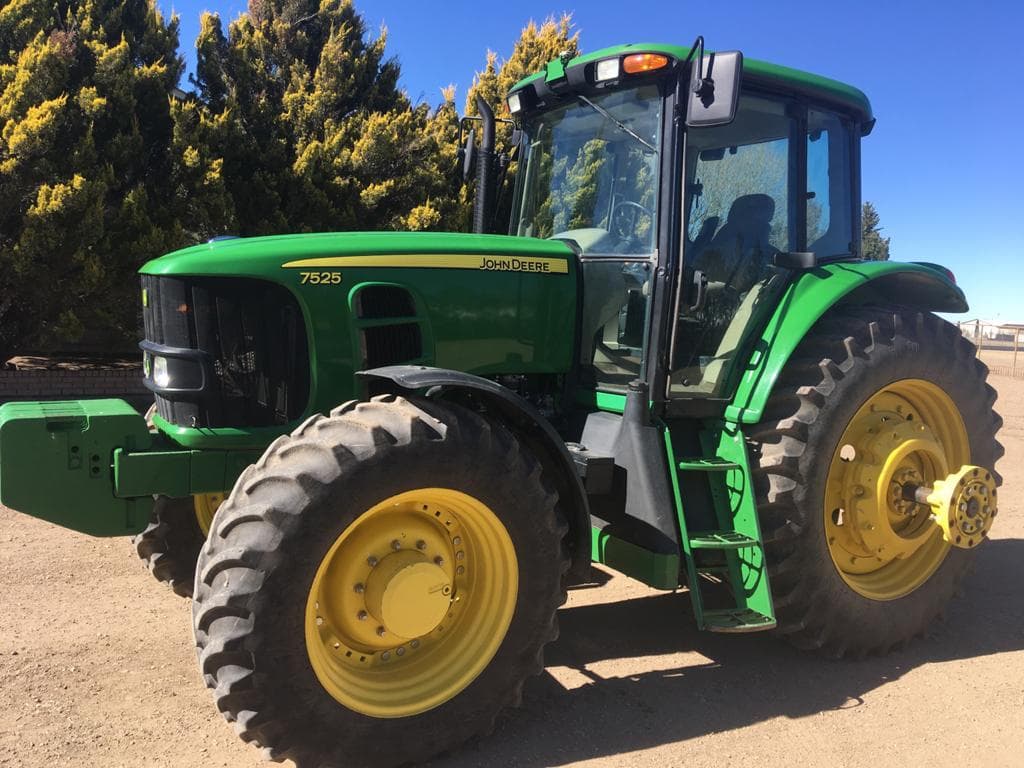

John Deere 7525

Last Updated: June 2024

Overview

The John Deere 7525 is a row-crop tractor designed for versatile field work with its powerful 155 hp engine and 4WD for enhanced traction and performance. Its chassis is configured with 4x4 MFWD, which underlines its capability to handle rugged agricultural tasks. Steering is provided via a power steering system for ease of maneuverability and this model features a 16-speed four-speed power shift transmission, providing ample gear options for various tasks. The wheelbase measures at 106.3 inches, and the tractor's weight ranges between 12960 and 13100 pounds, depending on the configuration. It pilots standard agricultural tires, with fronts at 14.9R30 and rears at 18.4R38. The John Deere 7525 holds 21.1 quarts of coolant and has dimensions that underline its robust nature, measuring 188 inches in length and 86.7 inches in height to the steering wheel. It is equipped with a three-point hitch and utilizes a closed center pressure flow compensated hydraulic system.
Show more...

Key Specifications

Category: Row Crop

Power Output: 155

Transmission: PowrQuad

Drive Type: 4WD

Operating Weight: 12960 (ROPS) to 13100 (Cab)

Fuel Type: Diesel

John Deere 7525 vs. Similar Tractors

Power Output
Average
Greater than 56% of similar tractors.
Operating Weight
Excellent
Greater than 94% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
PE6068
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
414
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
155

Transmission

Type
PowrQuad
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
188
Width (in)
-
Height (in)
86.7 (to steering wheel)
Operating Weight (lb)
12960 (ROPS) to 13100 (Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
21.1
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed center pressure flow compensated
