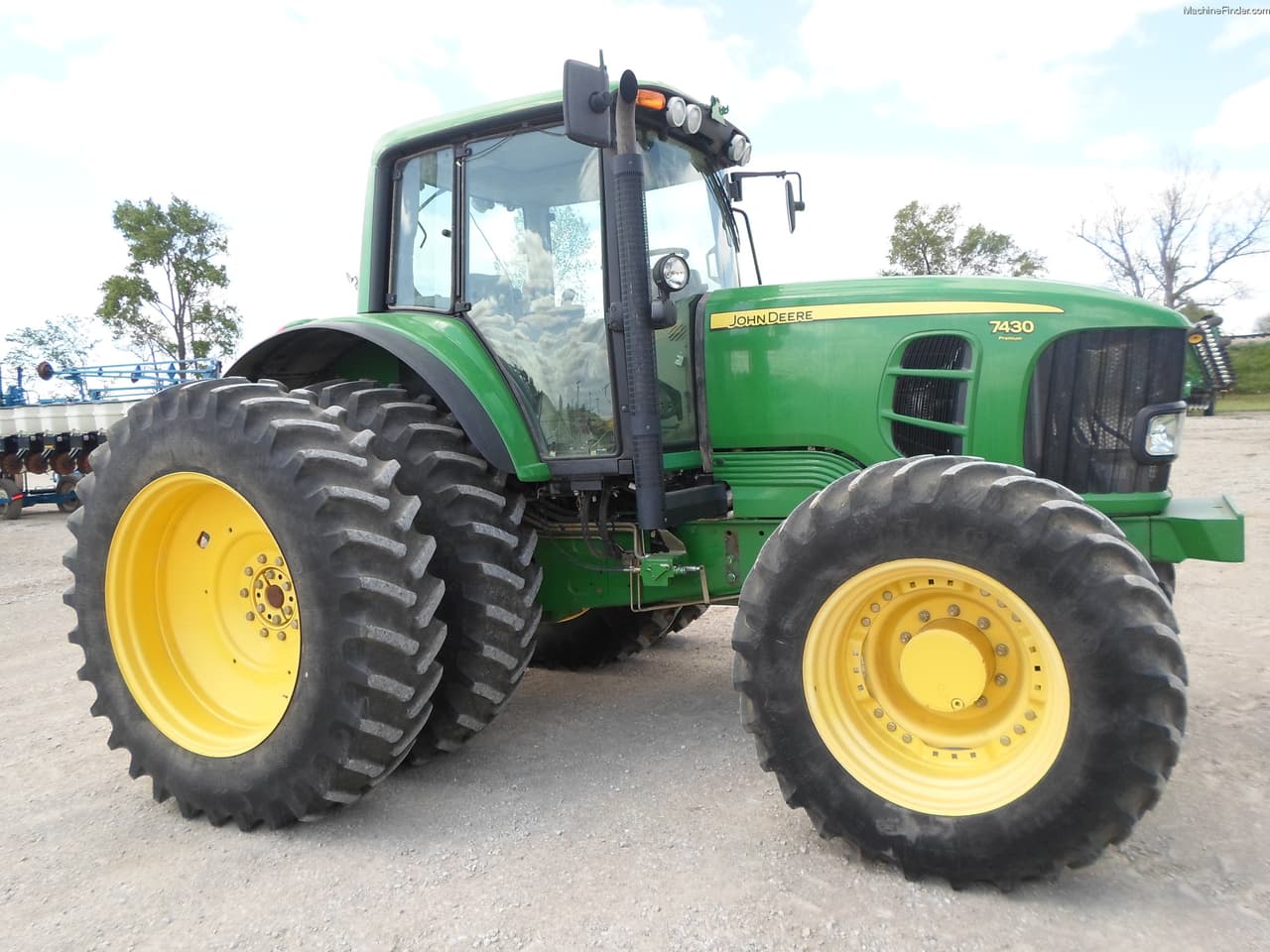

John Deere 7430 Premium Cab Tractor

Last Updated: June 2024

Overview

The John Deere 7430 Premium Cab Tractor is an advanced utility tractor that comes equipped with a 166 horsepower 6.8L PowerTech Plus turbocharged engine designed by John Deere. This engine supports a displacement of 415 cubic inches and operates at 2100 rated RPM. Enhanced by its PowrQuad Plus transmission, the tractor has 16 forward and reverse gears, respectively, facilitating a versatile and flexible operation across various tasks. The tractor features a sturdy three-point hitch system, with a Category 3 type, enabling a hitch lift capacity of up to 10600 lbs, which is ideal for demanding farm tasks. Additional important features include two remote control valves and a hydraulic system capable of a flow of 29.1 gallons per minute with a relief valve setting of 2900 psi. Radial tires support the tractor's performance on the field with a tire size of 16.9R28 for the front and 18.4R42 for the rear. The operating weight of the 7430 model is approximately 14594.7 pounds, highlighting its robust build and capacity for substantial agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 166

Transmission: PowrQuad Plus

Drive Type: 4WD

Operating Weight: 14594.7

Lift Capacity: 10600 lbs

John Deere 7430 Premium Cab Tractor vs. Similar Tractors

Power Output
Excellent
Greater than 91% of similar tractors.
Hitch Capacity
Above Average
Greater than 86% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
6.8L PowerTech Plus
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbocharged
Cylinders
-
Displacement (ci)
415
Bore (in)
-
Stroke (in)
-
Rated RPM
2100
Power Output (hp)
166

Transmission

Type
PowrQuad Plus
Forward Gears
16
Reverse Gears
16
Total Gears
32

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
14594.7

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Radial
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
10600 lbs
Operator Station Type
Cab
Starter Type
-
Brake Type
-
Hydraulic System Type
-
