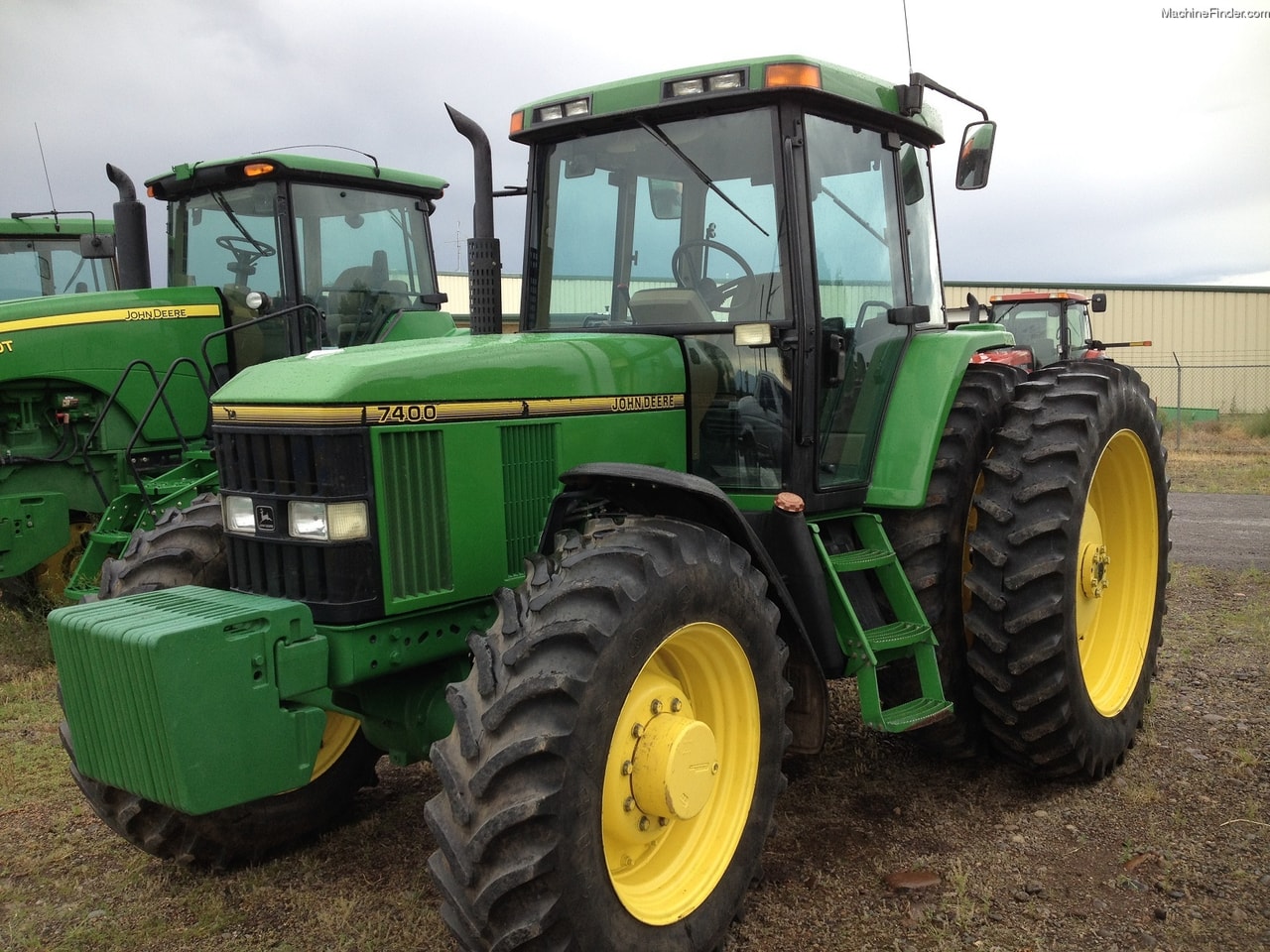

John Deere 7400

Last Updated: June 2024

Overview

The John Deere 7400 is a row-crop tractor that offers versatility for farming tasks through its 2WD (4x2) chassis, with power steering facilitating easier maneuverability. It was built by John Deere from 1993 to 1996 in Waterloo, Iowa. Housing a turbocharged, liquid-cooled, six-cylinder John Deere 6068 diesel engine, it ensures adequate power delivery with its 100 horsepower at 2100 RPM engine, suitable for various agricultural applications. Transmission options include a 12-forward/4-reverse speed fully synchronized transmission (SyncroPlus) and a 16-forward/12-reverse speed four-speed power shift (PowrQuad), allowing for a range of speed options fitting various tasks. With an operating weight starting at 12,666 lbs for SyncroPlus transmission, it sports a robust build, ready to handle demanding field conditions. The tractor is designed to operate with comfort in mind, featuring a standard cab with air conditioning, and is equipped with a hitch system that supports category II/IIIN implements. The hydraulic system is a closed center type with an independent PTO offering 540 and 1000 RPM speeds, complimented by robust hydraulic wet disc brakes ensuring safety and control.
Show more...

Key Specifications

Category: Row Crop

Power Output: 100

Transmission: Fully synchronized

Drive Type: 2WD

Operating Weight: 12666 (SyncroPlus) / 12732 (PowrQuad)

Fuel Type: Diesel

John Deere 7400 vs. Similar Tractors

Power Output
Below Average
Greater than 22% of similar tractors.
Hitch Capacity
Average
Greater than 45% of similar tractors.
Operating Weight
Excellent
Greater than 93% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
OHV (assumed based on common configurations)
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
414
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
100

Transmission

Type
Fully synchronized
Forward Gears
12 (SyncroPlus) / 16 (PowrQuad)
Reverse Gears
4 (SyncroPlus) / 12 (PowrQuad)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
12666 (SyncroPlus) / 12732 (PowrQuad)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1996
Hitch Type
-
Hitch Category
II/IIIN
Hitch Position
-
Hitch Capacity (lb)
6858
Operator Station Type
Cab with air-conditioning
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Closed center
