John Deere 7210R

Last Updated: July 2024

Overview

The John Deere 7210R is a powerful and versatile row-crop tractor designed for modern agriculture. With a maximum power output of 206.11 hp at 1900 rpm and a torque rise of 49.5%, it offers excellent performance. The tractor features advanced transmission options, MFWD capabilities, and a range of additional features like ActiveCommand Steering and Triple-Link Suspension. Its emissions systems comply with stringent Tier 4 standards. The updated specifications include detailed fuel and DEF consumption figures, hydraulic performance data, and PTO power outputs based on independent test results.
Show more...

Key Specifications

Category: Row Crop

Power Output: 206.11 (Maximum Power EC 97/68)

Transmission: Power shift / Full power shift / Infinitely variable transmission (IVT)

Drive Type: MFWD - Mechanical Front Wheel Drive

Operating Weight: 26335 / 22983 (variation reported)

Fuel Type: Diesel

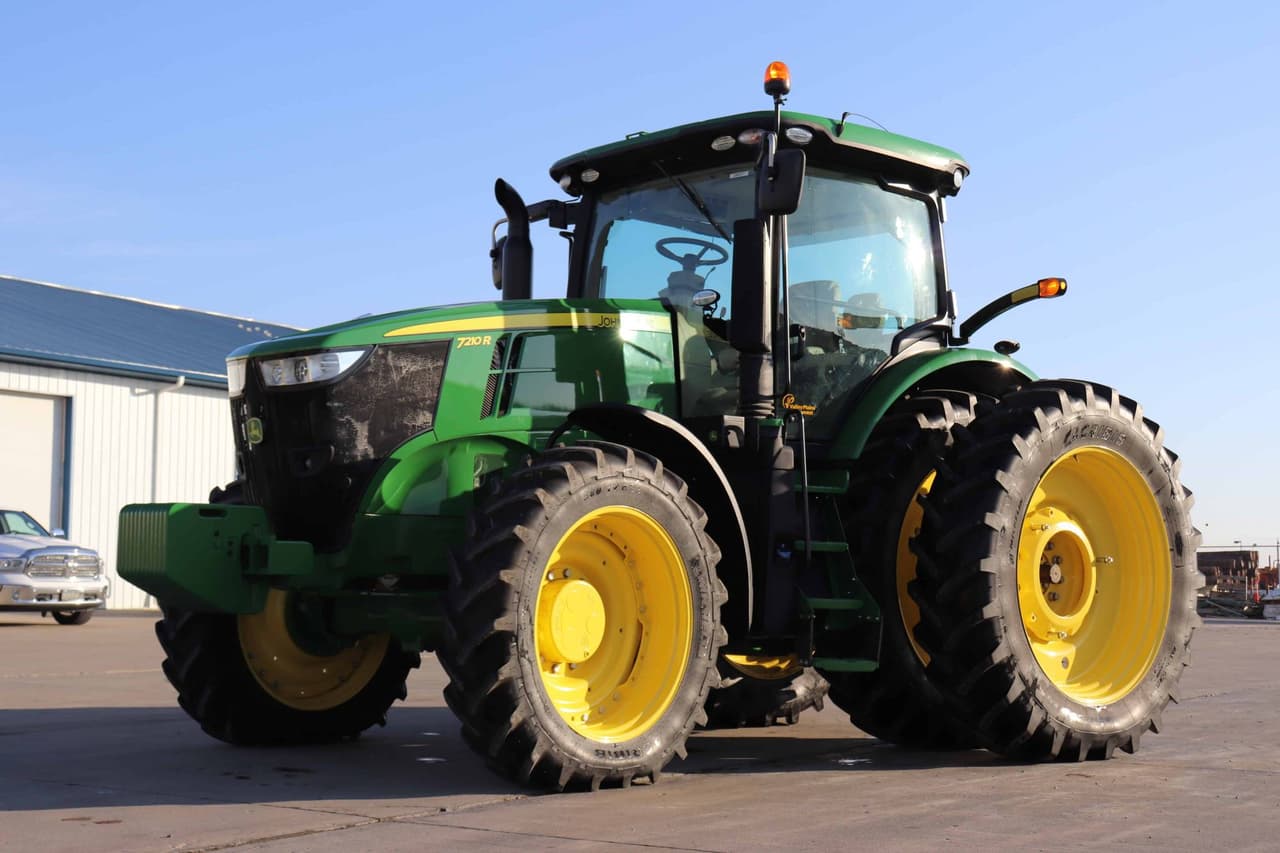

Image Gallery

John Deere 7210R Tractor John Deere 7210R Tractor John Deere 7210R Tractor John Deere 7210R Tractor John Deere 7210R Tractor John Deere 7210R Tractor John Deere 7210R Tractor John Deere 7210R Tractor

John Deere 7210R vs. Similar Tractors

Power Output
Excellent
Greater than 100% of similar tractors.
Hitch Capacity
Excellent
Greater than 99% of similar tractors.
Operating Weight
Excellent
Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
John Deere PowerTech PSX
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
415
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
206.11 (Maximum Power EC 97/68)

Transmission

Type
Power shift / Full power shift / Infinitely variable transmission (IVT)
Forward Gears
20 (Power shift) / 23 (Full power shift) / Infinite (IVT)
Reverse Gears
20 (Power shift) / 11 (Full power shift) / Infinite (IVT)
Total Gears
-

Dimensions

Length (in)
217
Width (in)
-
Height (in)
128 (with G47 tires)
Operating Weight (lb)
26335 / 22983 (variation reported)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
540/1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD - Mechanical Front Wheel Drive
Steering Type
Hydrostatic power
Coolant Capacity (qts)
41.7
Front Tire Diameter (in)
38 / 34 (variation reported)
Front Tire Width (in)
-
Rear Tire Diameter (in)
50 / 38 (variation reported)
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
2019
Hitch Type
III/IIIN
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
16000 (Standard) / 22500 (Optional)
Operator Station Type
CommandView III cab (standard) / Premium cab (optional)
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Closed-center pressure and flow compensated

Test Results

Nebraska Tractor Test Laboratory - Test Date: April 2-14, 2014

Maximum Power and Fuel Consumption

  • Rated Engine Speed (PTO speed—1067 rpm): 177.75 HP (132.55 kW) at 2099 rpm
  • Fuel Consumption at Rated Engine Speed: 10.31 Gal/hr (39.01 l/h) with a fuel efficiency of 0.406 lb/hp.hr (0.247 kg/kW.h)
  • Maximum Power: 206.11 HP (153.69 kW) at 1900 rpm
  • Fuel Consumption at Maximum Power: 11.31 Gal/hr (42.83 l/h) with a fuel efficiency of 0.384 lb/hp.hr (0.234 kg/kW.h)
  • DEF Consumption at Maximum Power: 0.26 Gal/hr (0.99 l/h)

Drawbar Performance

  • Maximum Power in 7th Gear (B3): 166.67 HP (124.29 kW) with a drawbar pull of 12164 lbs (54.11 kN) and a speed of 5.14 mph (8.27 km/h)
  • Fuel Consumption at Maximum Power: 0.434 lb/hp.hr (0.264 kg/kW.h) with a fuel efficiency of 16.14 Hp.hr/gal (3.18 kW.h/l)
  • Maximum Power in 12th Gear (C4) at 1900 rpm: 187.18 HP (139.58 kW) with a drawbar pull of 7652 lbs (34.04 kN) and a speed of 9.17 mph (14.76 km/h)

Torque and Engine Performance

  • Maximum Torque: 665 lb.-ft. (902 Nm) at 1599 rpm
  • Torque Rise: 49.5%
  • Power Increase at 1900 rpm: 15.9%

Hydraulic Performance

  • Maximum Force Exerted:
  • 12408 lbs (55.2 kN) with 2 x 90 mm lift cylinders
  • 15324 lbs (68.2 kN) with 2 x 100 mm lift cylinders
  • Pump Delivery Rate at Minimum Pressure and Rated Speed: 58.3 GPM (220.7 l/min) for the 85 cc pump
  • Hydraulic Power at Delivery Pressure of 2571 psi (177 bar): 86.2 HP (64.3 kW)

Overall Efficiency

  • Fuel Efficiency at Standard PTO Speed (1000 rpm): 18.10 Hp.hr/gal (3.57 kW.h/l)
  • Fuel Consumption at Standard PTO Speed: 11.07 Gal/hr (41.90 l/h)



NTTL. (2014). Nebraska OECD Tractor test 2082 for John Deere 7210R Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2474
