John Deere 7200R

Last Updated: July 2024

Overview

The John Deere 7200R is a powerful row-crop tractor featuring a 6-cylinder, 24-valve, 414 ci turbocharged aftercooled diesel engine with dual turbochargers. Rated at 197.02 hp and producing a maximum torque of 635 lb-ft at 1599 rpm with a 49.3% torque rise. It has a selective gear fixed ratio transmission with a 20-speed AutoQuad Plus power shift. Key specs include an unladen weight of 21,190 lbs, rear static weight of 14,025 lbs, and hydraulic system with 62.4 GPM pump delivery rate. Equipped with 480/80R46 rear and 16.9R30 front tires, and wet multiple disc hydraulic brakes. Excels in drawbar performance with detailed test results available.

Key Specifications

Category: Row Crop

Power Output: 197.02

Transmission: Selective gear fixed ratio with a partial (4) range operator-controlled power shift, AutoQuad Plus 20-speed transmission

Drive Type: 2WD and 4WD available

Operating Weight: Unladen: 21190, With Operator: 21365, Rear Static Weight: 14025, Front Static Weight: 7340

Fuel Type: Diesel

Image Gallery

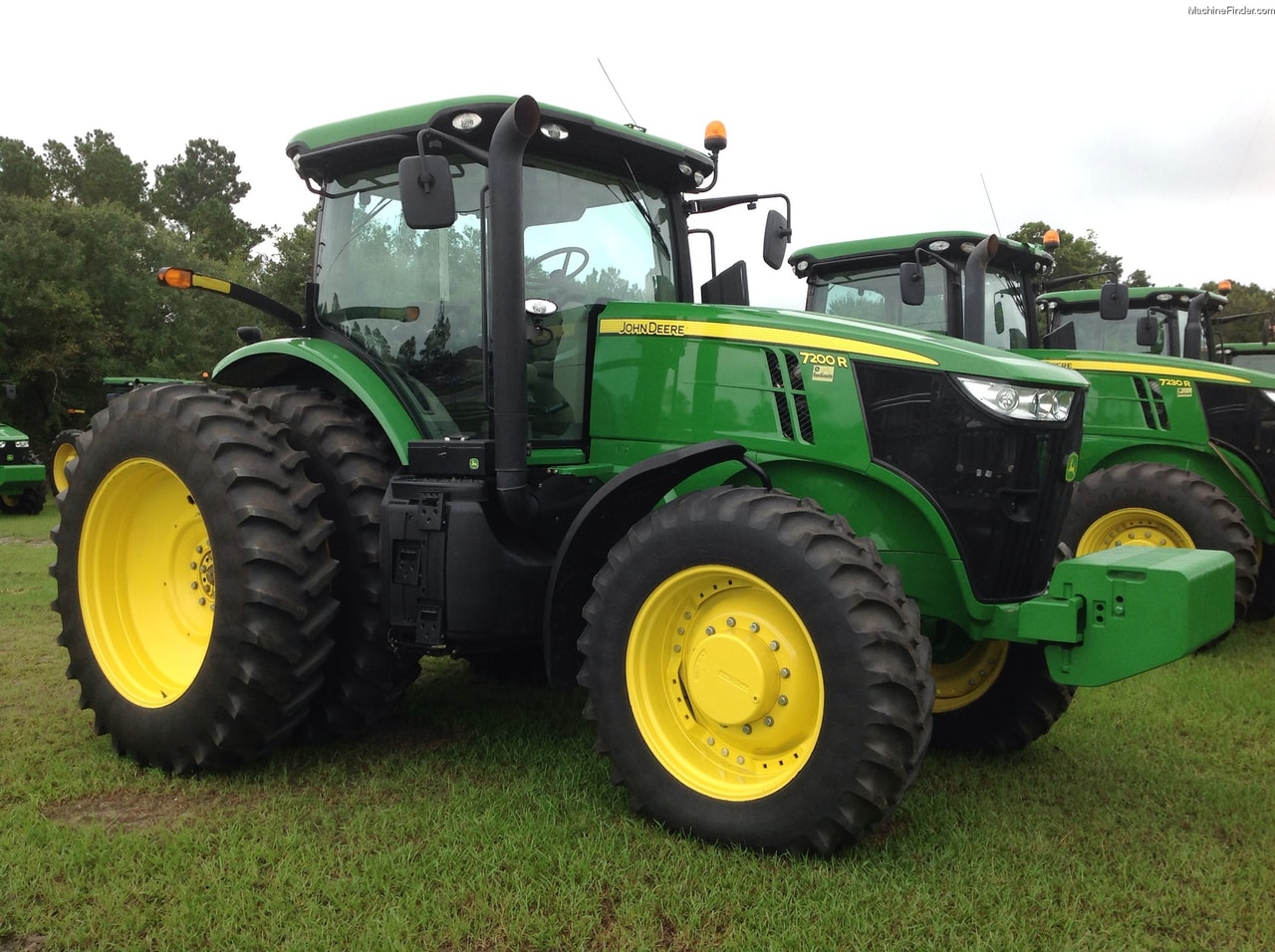

John Deere 7200R Tractor

John Deere 7200R vs. Similar Tractors

Power Output

Above Average

Greater than 73% of similar tractors.

Hitch Capacity

Average

Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: PowerTech PSX
Cooling Type: Liquid-cooled
Cylinder Orientation: Vertical
Valve Configuration: 24-valve
Fuel Type: Diesel
Induction Type: Turbocharged aftercooled with dual turbochargers
Cylinders: 6
Displacement (ci): 414
Bore (in): 4.19
Stroke (in): 5
Rated RPM: 2100
Power Output (hp): 197.02

Transmission

Type: Selective gear fixed ratio with a partial (4) range operator-controlled power shift, AutoQuad Plus 20-speed transmission
Forward Gears: 20 forward (AutoQuad Plus)
Reverse Gears: 20 reverse (AutoQuad Plus)
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): Unladen: 21190, With Operator: 21365, Rear Static Weight: 14025, Front Static Weight: 7340

Power Take-Off (PTO)

PTO Type: Independent (Rear PTO), Optional (Front PTO)
PTO Speed 1 (rpm): 540, 540E, 1000, 1000E (Rear PTO), 1000 (Front PTO)
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD (optional) or 4x4 MFWD 4WD
Drive Type: 2WD and 4WD available
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 2013
Hitch Type: -
Hitch Category: Category 3, IIIN (optional)
Hitch Position: Rear
Hitch Capacity (lb): 12000 lbs base, optional 15200 lbs
Operator Station Type: CommandView II Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed-center pressure and flow compensated (PFC)

Test Results

Nebraska Tractor Test Laboratory - Test Date: April 26 to May 15, 2012

Maximum Power and Fuel Consumption

Maximum Power (1 hour): 197.02 HP (146.92 kW) at 1749 rpm
Fuel Consumption at Maximum Power: 11.06 Gal/hr (41.86 l/h) with a fuel efficiency of 0.395 lb/hp.hr (0.240 kg/kW.h)
Maximum Torque: 635 lb.-ft. (861 Nm) at 1599 rpm
Torque Rise: 49.3% with a power increase at 1749 rpm of 15.9%

Drawbar Performance

Power at Rated Engine Speed (7th Gear): 154.77 HP (115.41 kW) with a drawbar pull of 11127 lbs (49.50 kN) and a speed of 5.22 mph (8.39 km/h)
Fuel Consumption at Rated Speed: 0.464 lb/hp.hr (0.283 kg/kW.h) with a fuel efficiency of 15.16 Hp.hr/gal (2.99 kW.h/l)

Torque and Engine Performance

Maximum Torque: 635 lb.-ft. (861 Nm) at 1599 rpm
Torque Rise: 49.3% with a power increase at 1749 rpm of 15.9%
Power Increase at Reduced Engine Speed: 190.10 HP (141.76 kW) at 1759 rpm with a fuel consumption of 10.37 Gal/hr (39.27 l/h)

Hydraulic Performance

Maximum Force Exerted: 15324 lbs (68.2 kN)
Pump Delivery Rate: 62.4 GPM (236.2 l/min) at minimum pressure and rated engine speed
Hydraulic Power: 91.4 HP (68.1 kW) at delivery pressure of 2542 psi (175 bar)

Overall Efficiency

Fuel Efficiency at Standard PTO Speed (1000 rpm): 17.30 Hp.hr/gal (3.41 kW.h/l)
Fuel Consumption: 11.02 Gal/hr (41.72 l/h) at 1967 rpm

NTTL.(2012).Nebraska OECD Tractor test 2021 for John Deere 7200R Diesel. Lincoln, NE: Nebraska Tractor Test Laboratory. Retrieved from https://digitalcommons.unl.edu/tractormuseumlit/2429
