John Deere 7200

Last Updated: June 2024

Overview

The John Deere 7200 is a versatile and robust row-crop tractor that was manufactured between 1993 and 1996 in Waterloo, Iowa. Available in either a 2WD or 4WD configuration, this tractor can meet a variety of agricultural needs. It is powered by a John Deere 6068 six-cylinder turbocharged diesel engine with a displacement of 359 cubic inches, capable of delivering up to 92 horsepower at 2100 RPM, or 102 horsepower as per the gross power rating. The 7200 comes equipped with either the SyncroPlus or PowrQuad transmission systems, offering 12 forward and 4 reverse gears on the former, or 16 forward and 12 reverse gears on the latter, both with hydraulic wet disc clutches. Power steering, independent hydraulic wet disc brakes, and a closed center hydraulic system increase the tractor's efficiency and ease of use. The tractor boasts a weight of 12,678 pounds, and its standard cab is outfitted with air-conditioning for operator comfort.

Key Specifications

Category: Row Crop

Power Output: 92 (Engine Detail) / 102 (CEG_Gross Power)

Transmission: Fully synchronized / Four-speed power shift

Drive Type: 2WD/4WD

Operating Weight: 12678

Fuel Type: Diesel

Image Gallery

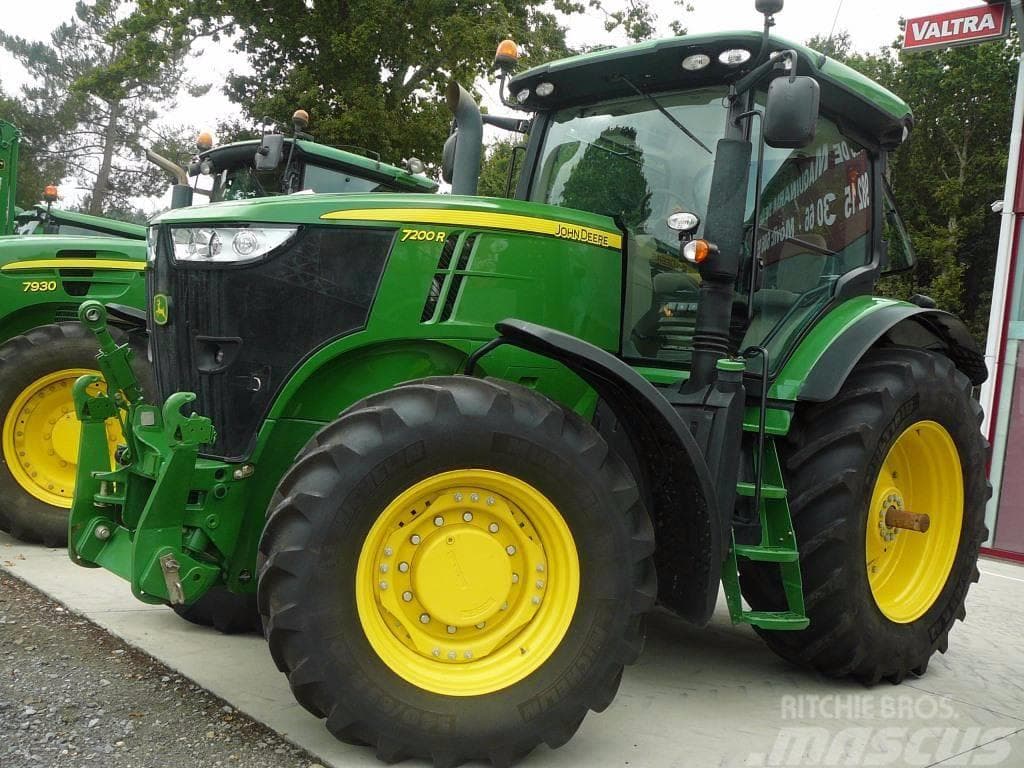

John Deere 7200 Tractor

John Deere 7200 vs. Similar Tractors

Power Output

Excellent

Greater than 94% of similar tractors.

Hitch Capacity

Excellent

Greater than 96% of similar tractors.

Operating Weight

Average

Greater than 49% of similar tractors.

Technical Specifications

Engine

Manufacturer: John Deere
Model: 6068
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 359
Bore (in): 4.19
Stroke (in): 4.33
Rated RPM: 2100
Power Output (hp): 92 (Engine Detail) / 102 (CEG_Gross Power)

Transmission

Type: Fully synchronized / Four-speed power shift
Forward Gears: 12 (SyncroPlus) / 16 (PowrQuad)
Reverse Gears: 4 (SyncroPlus) / 12 (PowrQuad)
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 12678

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD/4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1996
Hitch Type: -
Hitch Category: IIIN/II
Hitch Position: -
Hitch Capacity (lb): 6860 lbs (at 610 mm / 24 in)
Operator Station Type: Cab standard with air-conditioning
Starter Type: Electric
Brake Type: Independent hydraulic wet disc
Hydraulic System Type: Closed center
