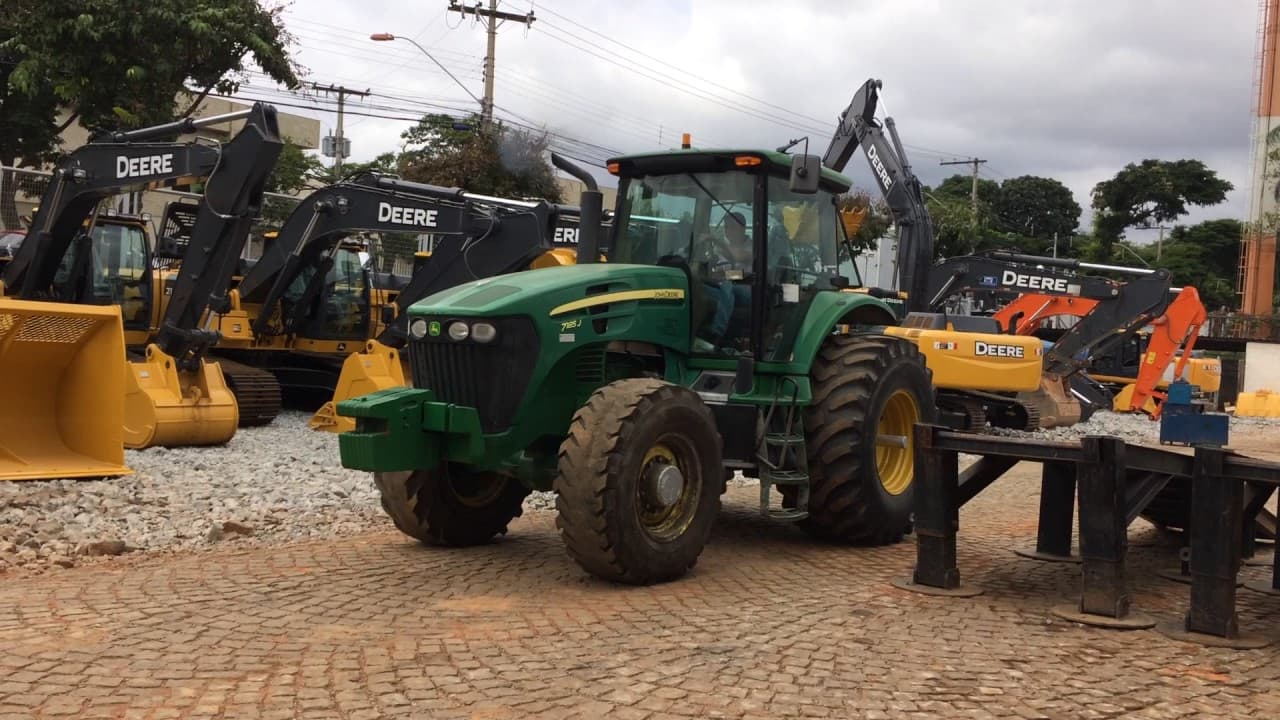

John Deere 7185J

Last Updated: June 2024

Overview

The John Deere 7185J is a robust row-crop tractor that comes with a sophisticated John Deere 6068 Powertech engine. This turbocharged and intercooled diesel powerhouse has six cylinders and delivers an impressive 185 horsepower. The engine's high torque of 609.2 lb-ft at 1400 RPM makes it suitable for various demanding agricultural tasks. The tractor's 414 ci engine employs a mechanical injection pump with an electronic governor for precise fuel control and operates at an optimal powerband with a rated RPM of 2100. With a 16-speed partial power shift transmission, operators can handle the tractor efficiently thanks to the hydraulic wet disc clutch. Hydrostatic power steering provides ease of maneuverability, while its full 4WD capability, denoted by its 4x4 MFWD chassis, offers excellent handling in diverse field conditions. The tractor is designed to operate with standard agricultural tires but offers options for radial tires to suit different terrains. Its weight of 17,860 lbs ensures stability, and the cab height of 123.7 inches gives a commanding view of the surroundings, all while ensuring operator comfort for prolonged working hours.
Show more...

Key Specifications

Category: Row Crop

Power Output: 185

Transmission: Partial power shift

Drive Type: MFWD (Mechanical Front-Wheel Drive)

Operating Weight: 17,860

Fuel Type: Diesel

John Deere 7185J vs. Similar Tractors

Power Output
Average
Greater than 68% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068 Powertech
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
24-valve
Fuel Type
Diesel
Induction Type
Turbocharged intercooled
Cylinders
6
Displacement (ci)
414
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
185

Transmission

Type
Partial power shift
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
240.4
Width (in)
-
Height (in)
123.7
Operating Weight (lb)
17,860

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD (Mechanical Front-Wheel Drive)
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard Ag tires (Optional: Radial)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
3/3N
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
12-volt electric
Brake Type
-
Hydraulic System Type
Closed center
