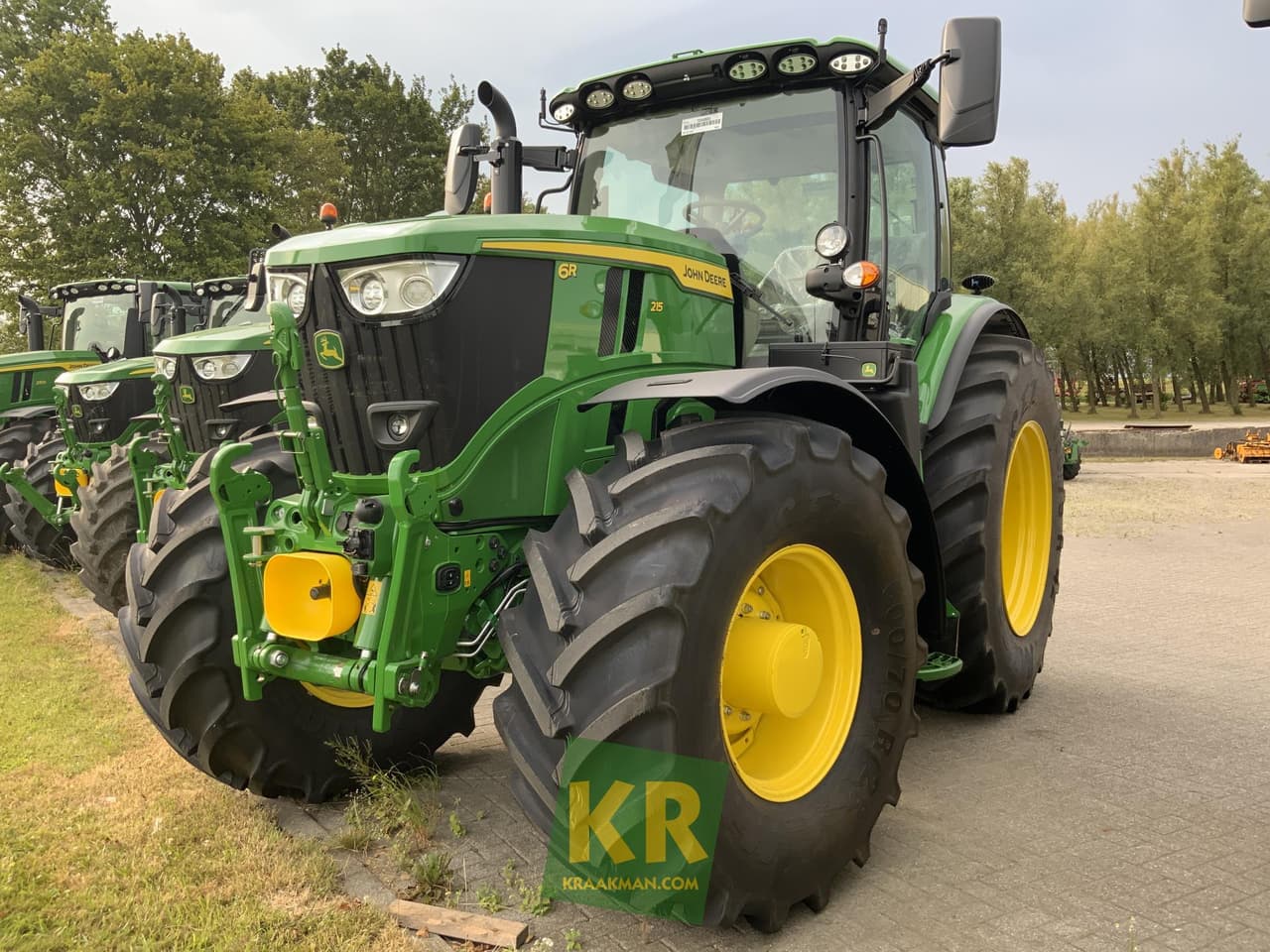

John Deere 6R 215

Last Updated: June 2024

Overview

The John Deere 6R 215 is a utility tractor that comes fitted with a turbocharged diesel PowerTech PVS engine with six cylinders and a displacement of 415 cubic inches. This Tier IV compliant engine is known for substantial power output, providing both rated and maximum power levels of 211.9 hp and 233.3 hp respectively, along with a high torque of 740 lb-ft at 1600 RPM. The 6R 215 is versatile in its transmission options, including an IVT (Infinitely Variable Transmission), 4-speed AutoQuad Plus Eco power shift, and an 8-speed Direct Drive power shift, each catering to different operational preferences. The tractor features a hitch with a Category 3 rating, and it utilizes a closed-center PFC hydraulic system. Its substantial operating weight of 18,739 pounds, along with its wheelbase of 110.2 inches, illustrates the 6R 215's capabilities for hefty workloads and stability. This tractor is designed to meet a variety of agricultural needs, from fieldwork to farm management tasks, aligning with John Deere's commitment to powerful and reliable machinery.
Show more...

Key Specifications

Category: Utility

Power Output: 211.9 (Rated Power EC 97/98), 233.3 (Maximum Power EC 97/68)

Transmission: Continuously Variable Transmission (CVT), 4-speed power shift, 8-speed power shift

Operating Weight: 18739

Fuel Type: Diesel

John Deere 6R 215 vs. Similar Tractors

Operating Weight
Average
Greater than 69% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
PowerTech PVS
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
415
Bore (in)
4.15
Stroke (in)
5
Rated RPM
1600 (assumed from Torque RPM as it is not explicitly provided)
Power Output (hp)
211.9 (Rated Power EC 97/98), 233.3 (Maximum Power EC 97/68)

Transmission

Type
Continuously Variable Transmission (CVT), 4-speed power shift, 8-speed power shift
Forward Gears
Infinite (CVT), 24 (Power Shift)
Reverse Gears
Infinite (CVT), 24 (Power Shift)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
18739

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Type III/IIIN
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed-center PFC
