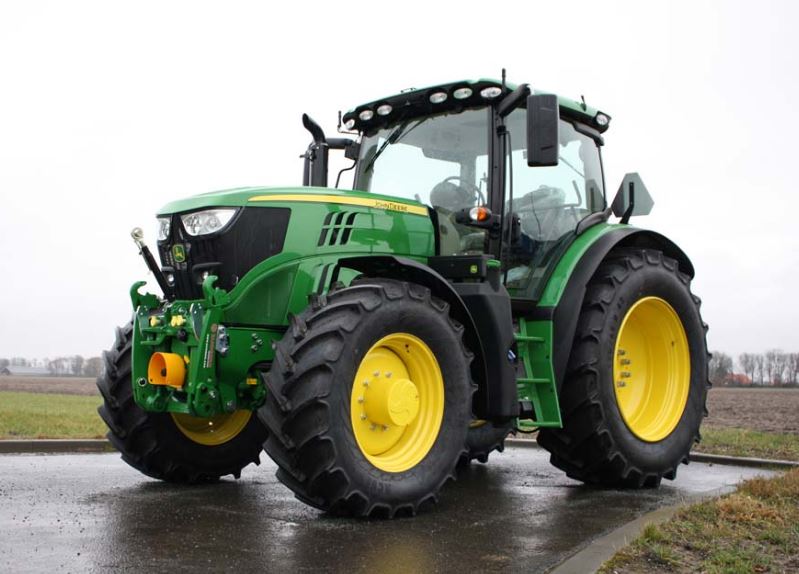

John Deere 6R 110

Last Updated: June 2024

Overview

The John Deere 6R 110 is a versatile and powerful utility tractor that features a 4x4 MFWD 4WD chassis for optimal traction and performance in a variety of conditions. Its engine, a John Deere PowerTech PSS, is a turbocharged diesel with four cylinders and a liquid cooling system. Engine displacement stands at 276 cubic inches with a bore and stroke of 4.19 and 5.00 inches respectively. This model comes with either an infinitely variable transmission (IVT) for a more flexible operation or a 24-speed AutoQuad Plus Eco partial power shift transmission that suits different operational needs. It follows the Tier IV emissions standard, ensuring environmental compliance. With an operational weight of 13,228 lbs and equipped with power steering for easy handling, the 6R 110 situates itself as a significant player in its category. Additional technological features might include closed-center pressure flow compensated hydraulics to support a variety of attachments and implements.
Show more...

Key Specifications

Category: Utility

Power Output: 108.6 (Rated Power), 119.4 (Max Power)

Transmission: Continuously-variable transmission (IVT)/Partial power shift (AutoQuad Plus Eco)

Drive Type: MFWD

Operating Weight: 13228

Fuel Type: Diesel

John Deere 6R 110 vs. Similar Tractors

Operating Weight
Average
Greater than 66% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
PowerTech PSS
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
276
Bore (in)
4.19
Stroke (in)
5
Rated RPM
-
Power Output (hp)
108.6 (Rated Power), 119.4 (Max Power)

Transmission

Type
Continuously-variable transmission (IVT)/Partial power shift (AutoQuad Plus Eco)
Forward Gears
Infinite (IVT) / 24 (AutoQuad Plus Eco)
Reverse Gears
Infinite (IVT) / 24 (AutoQuad Plus Eco)
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
13228

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Rear Type IIIN/II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Closed-center PFC
