John Deere 6930

Last Updated: September 2024

Overview

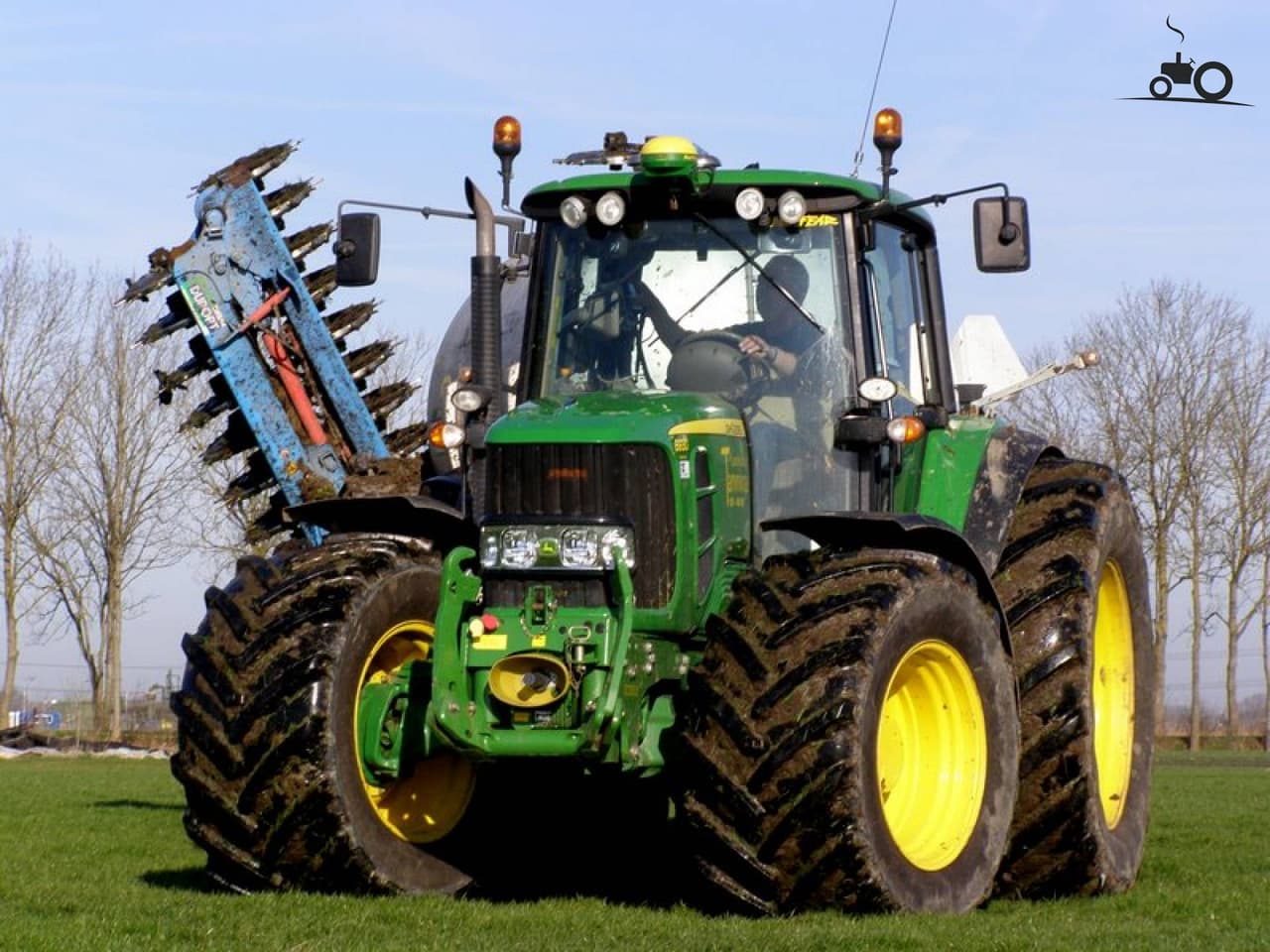

The John Deere 6930 is a powerful utility tractor built from 2006 to 2011. It has a strong 6-cylinder diesel engine that makes 155 horsepower, which is very high for its class. The engine is turbocharged and liquid-cooled, giving it plenty of power for tough farm jobs. This tractor has a 4-wheel drive system and power steering, making it easy to handle in various conditions.

The 6930 comes with a comfortable cab that has air conditioning, perfect for long work days. It has a three-point hitch at the back that can lift up to 16,730 pounds, which is excellent for its size. The tractor has a PTO (power take-off) system with three speeds: 540, 540E, and 1000 rpm. This lets farmers use many different tools. The 6930 is big, measuring 187.3 inches long, 93.8 inches wide, and 115.1 inches tall. It weighs 12,420 pounds, making it a sturdy and stable machine for farm work.
Show more...

Key Specifications

Category: Utility

Power Output: 155 hp (115.6 kW)

Transmission: Partial power shift

Drive Type: 4WD

Operating Weight: 12420 lb (5634 kg)

Fuel Type: Diesel

John Deere 6930 vs. Similar Tractors

Power Output

The Power Output for the John Deere 6930 is Excellent. It is greater than 93% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the John Deere 6930 is Excellent. It is greater than 91% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the John Deere 6930 is Excellent. It is greater than 91% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the John Deere 6930 is Below Average. It is greater than 15% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068HL281
Cooling Type
Liquid
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement
414 ci (6.8 L)
Bore
4.19 in (106.4 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
2100
Power Output
155 hp (115.6 kW)

Transmission

Type
Partial power shift
Forward Gears
20
Reverse Gears
20

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Brake Type
Hydraulic wet disc
